Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 5 illustrations

Illustrations

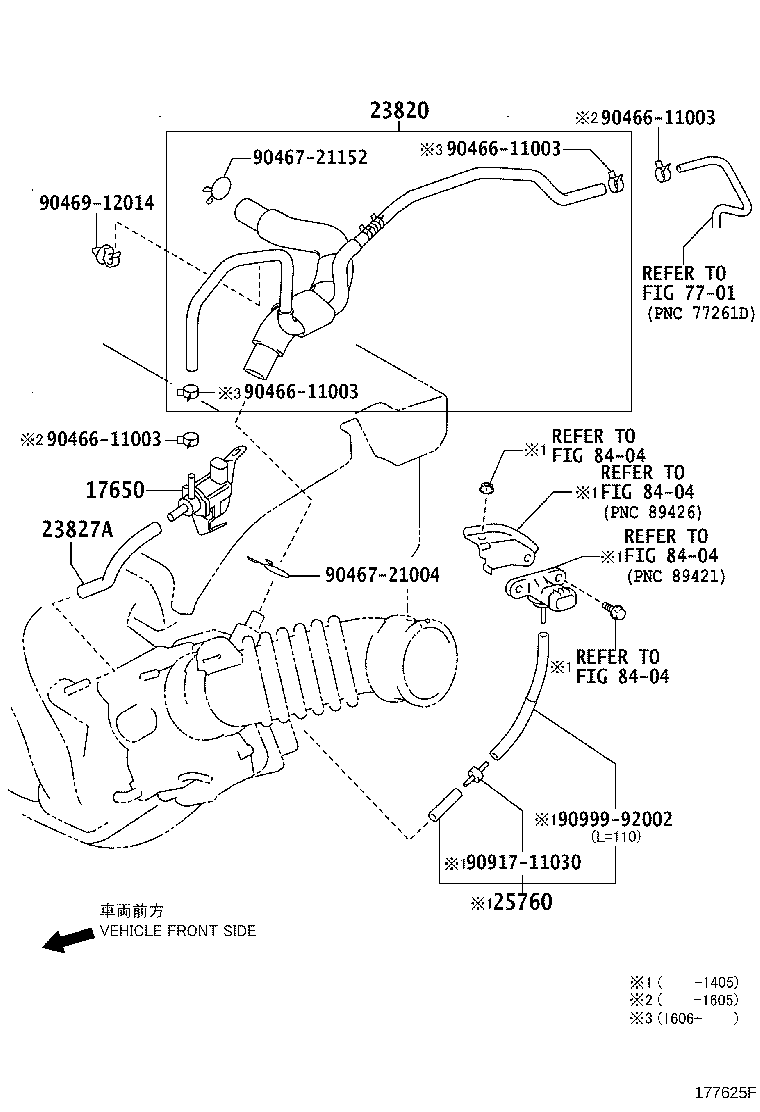

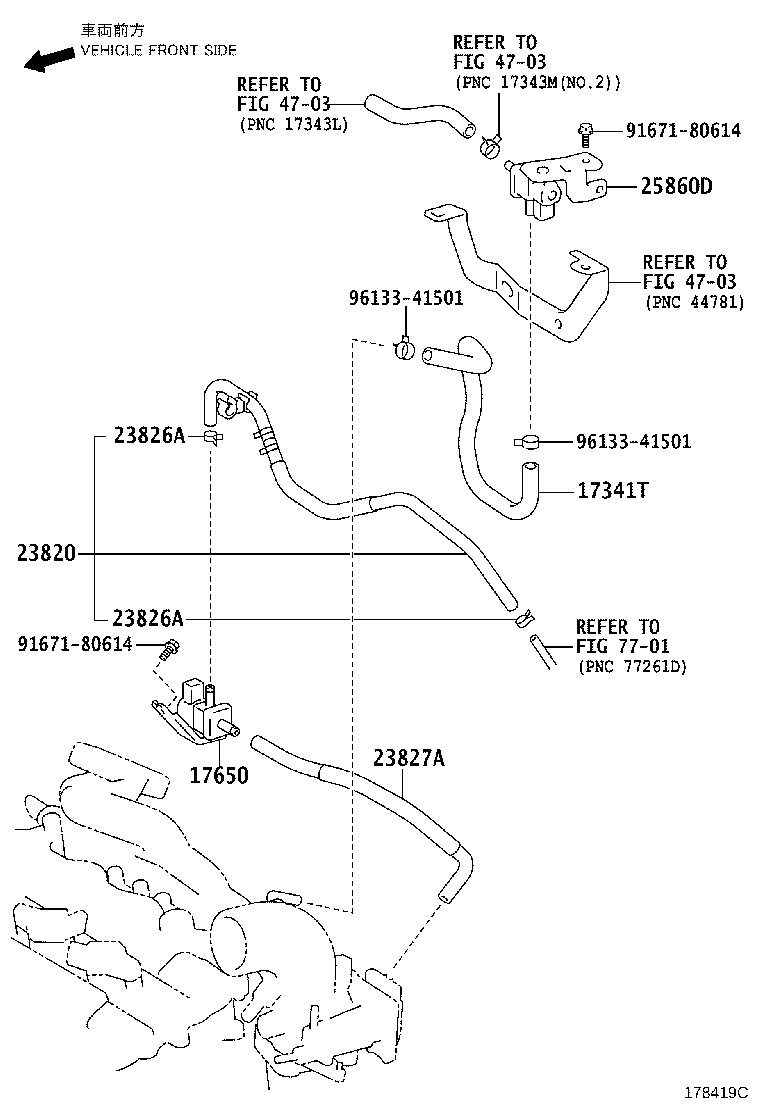

Figure 176974B 176974B 2010-11 → 2012-08 Figure 176974B 176974B 2012-08 → — Figure 177625F 177625F 2012-08 → — Figure 176953B 176953B 2010-11 → 2014-05 Figure 178419C 178419C 2014-05 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17650 Valve Assy, Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
