Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01

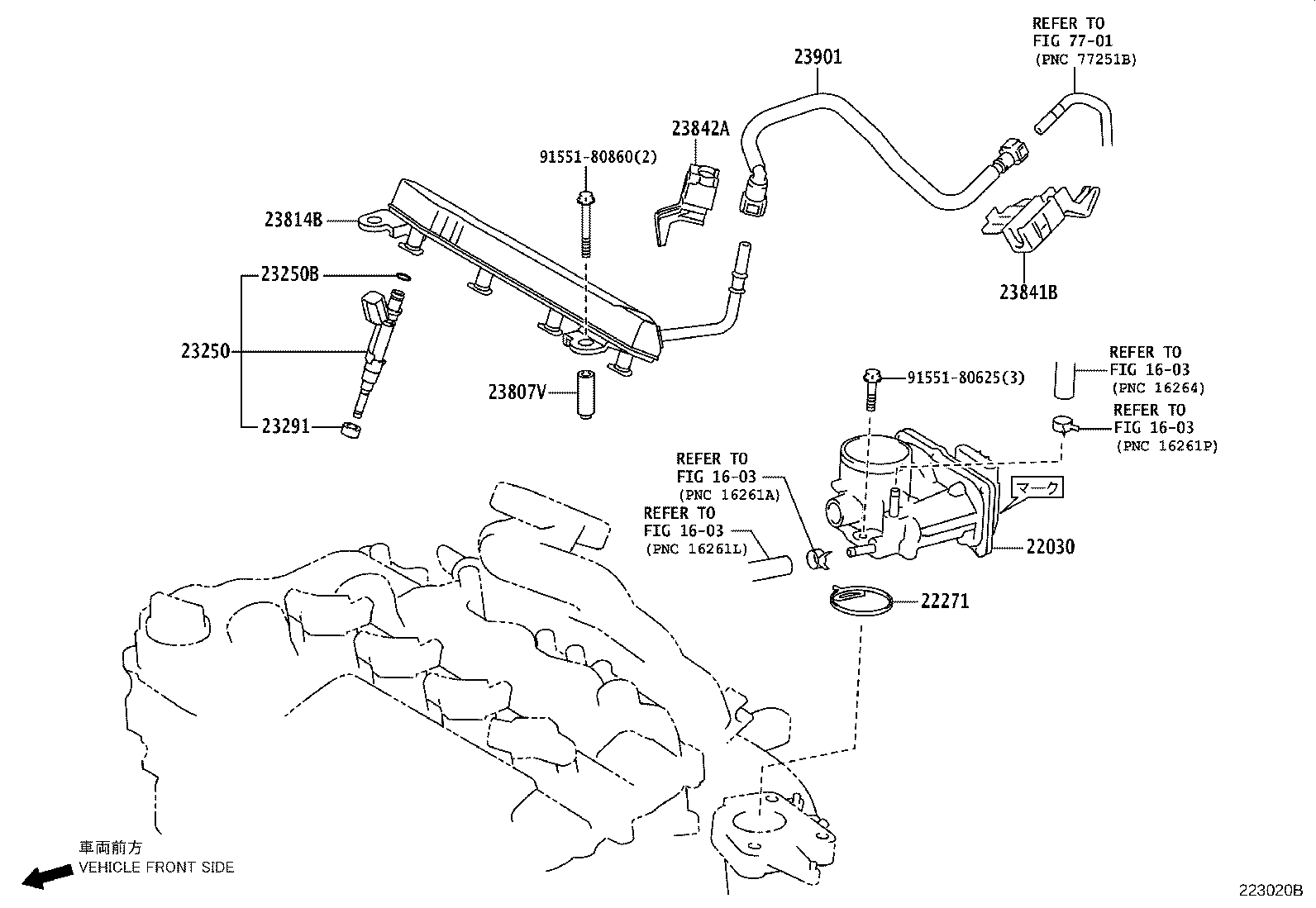

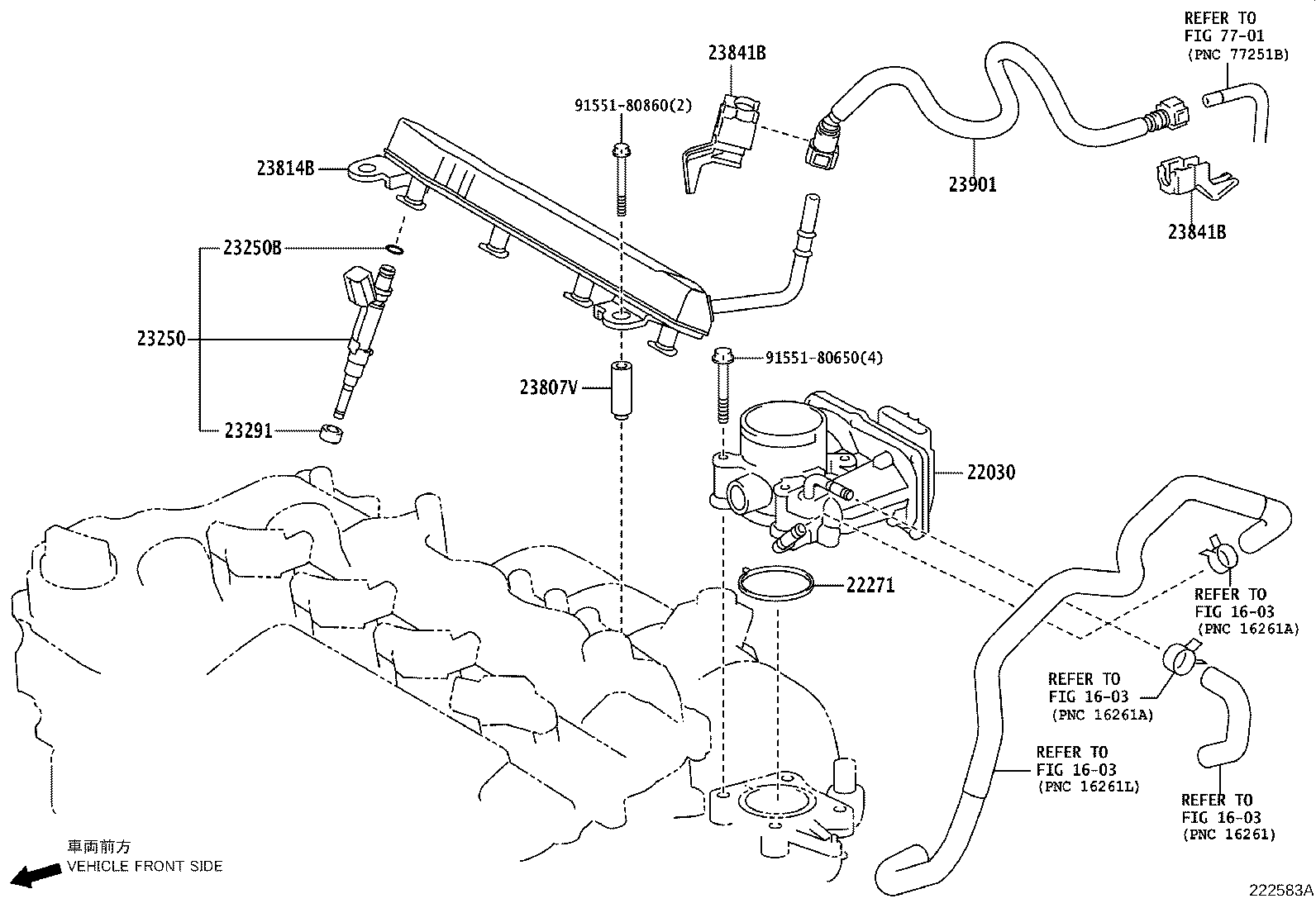

Fuel Injection System
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23291 | Insulator, Injector Vibration |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23814B | Pipe, Fuel Delivery |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
