Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

17 part groups · 2 illustrations

Illustrations

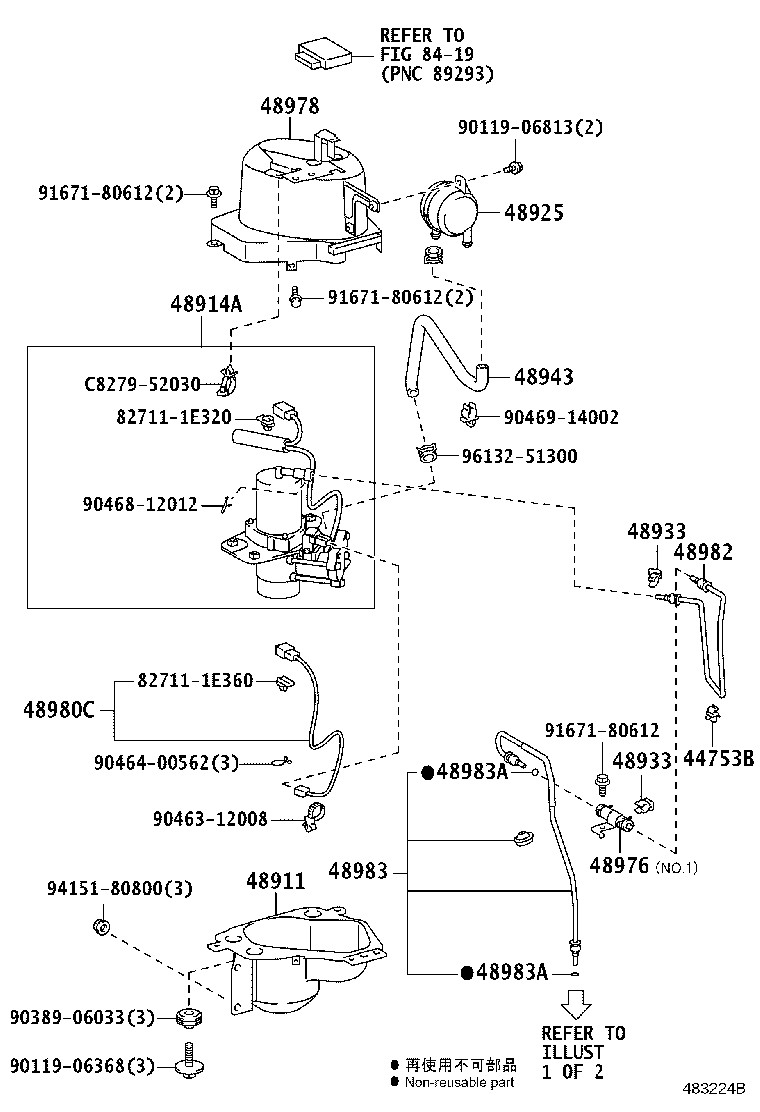

Figure 483223A 483223A 2010-11 → — Figure 483224B 483224B 2010-11 → —

Part groups

PNCDescription
44753B Clamp, Height Control Tube, NO.1
48096 Valve Sub-assy, Height Control, NO.2
48911 Bracket, Height Control Compressor
48914A Compressor, Height Control, NO.1
48925 Filter, Height Control
48933 Holder, Air Connector Clip
48943 Hose, Height Control, NO.1
48965 Clamp, Height Control Tube
48976 Way, Height Control
48978 Cover, Height Control Compressor
48980C Harness Assy, Height Control Valve
48982 Tube, Height Control, NO.2
48983 Tube, Height Control, NO.3
48983A Ring, O(FOR HEIGHT CONTROL TUBE NO.3)
48985 Tube, Height Control, NO.5
48986 Tube, Height Control, NO.6
48987 Tube, Height Control, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
