Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

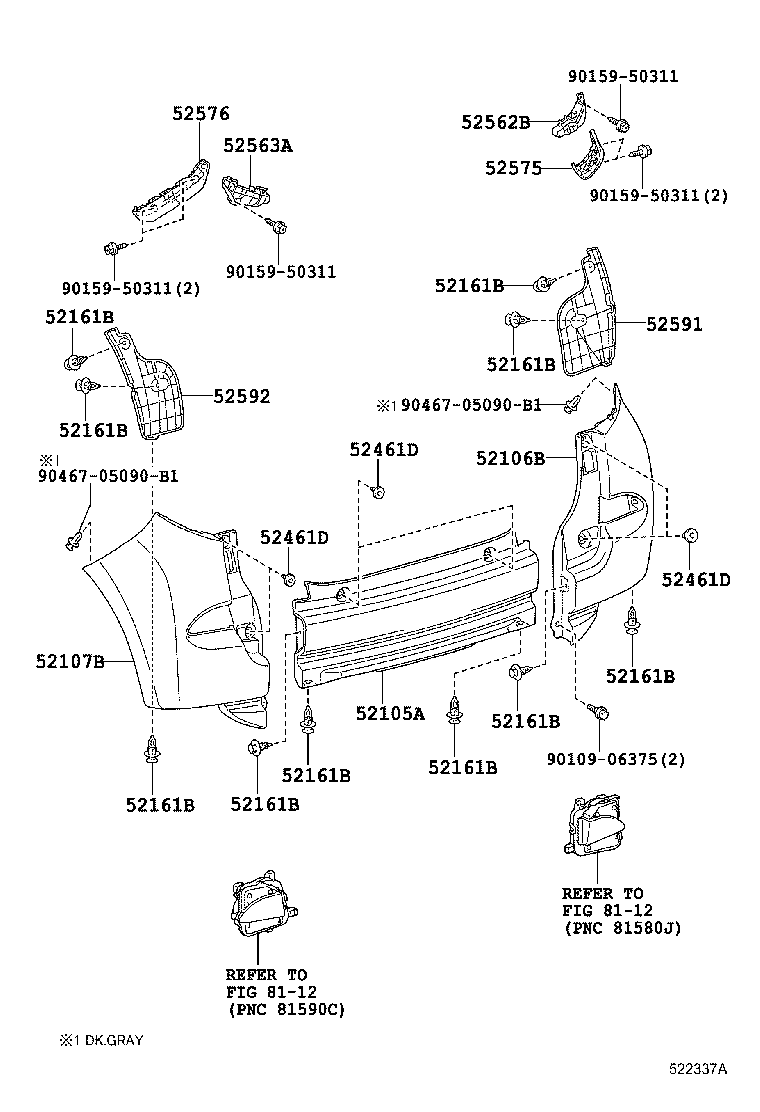

Figure 522341A 522341A 2010-11 → — Figure 522337A 522337A 2010-11 → —

Part groups

PNCDescription
52105A Bumper Sub-assy, Rear Center
52106B Bumper Sub-assy, Rear RH
52107B Bumper Sub-assy, Rear LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52461D Cushion, Rear Bumper
52465 Cushion, Rear Bumper, NO.1
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
