Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

28 part groups · 3 illustrations

Illustrations

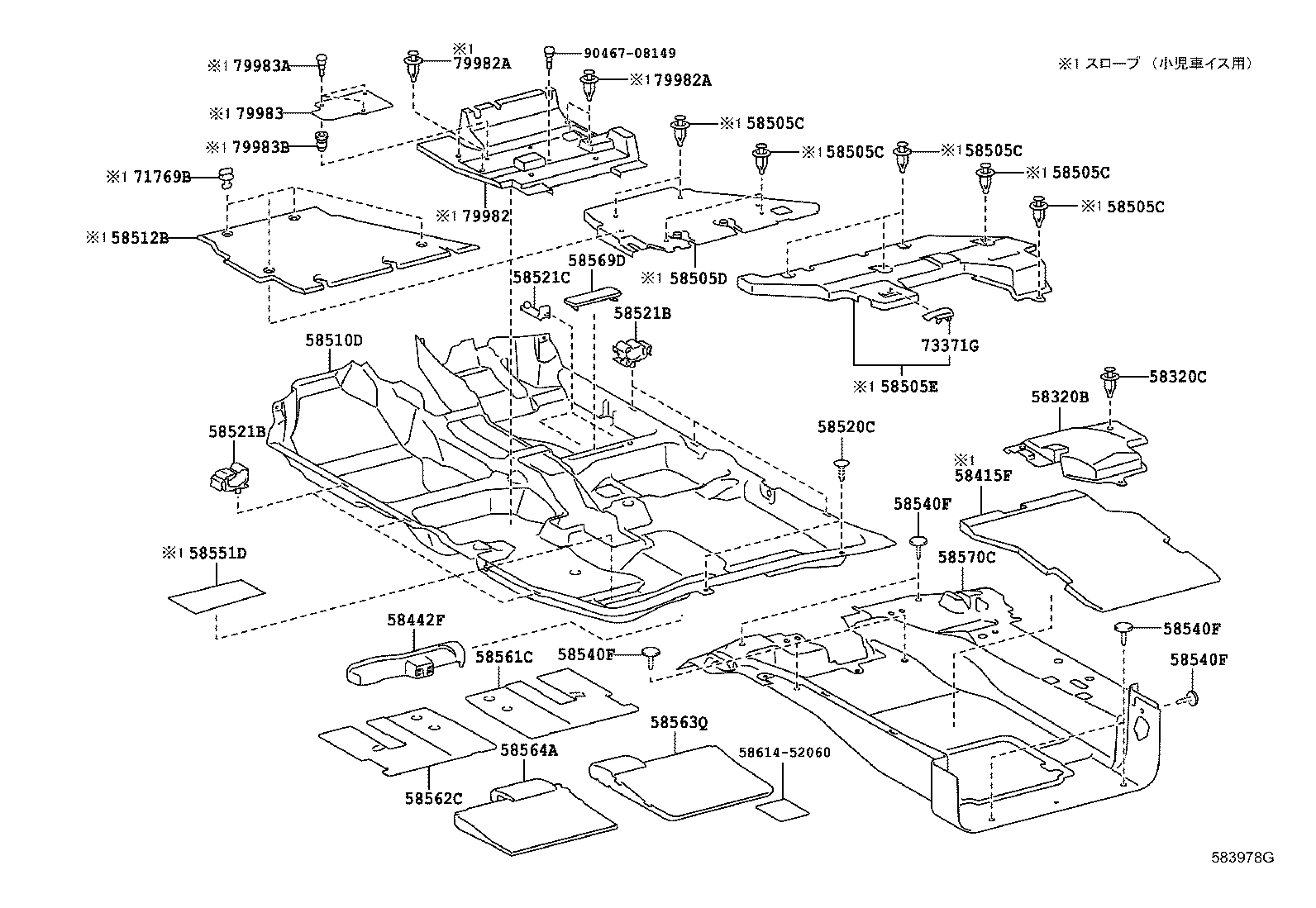

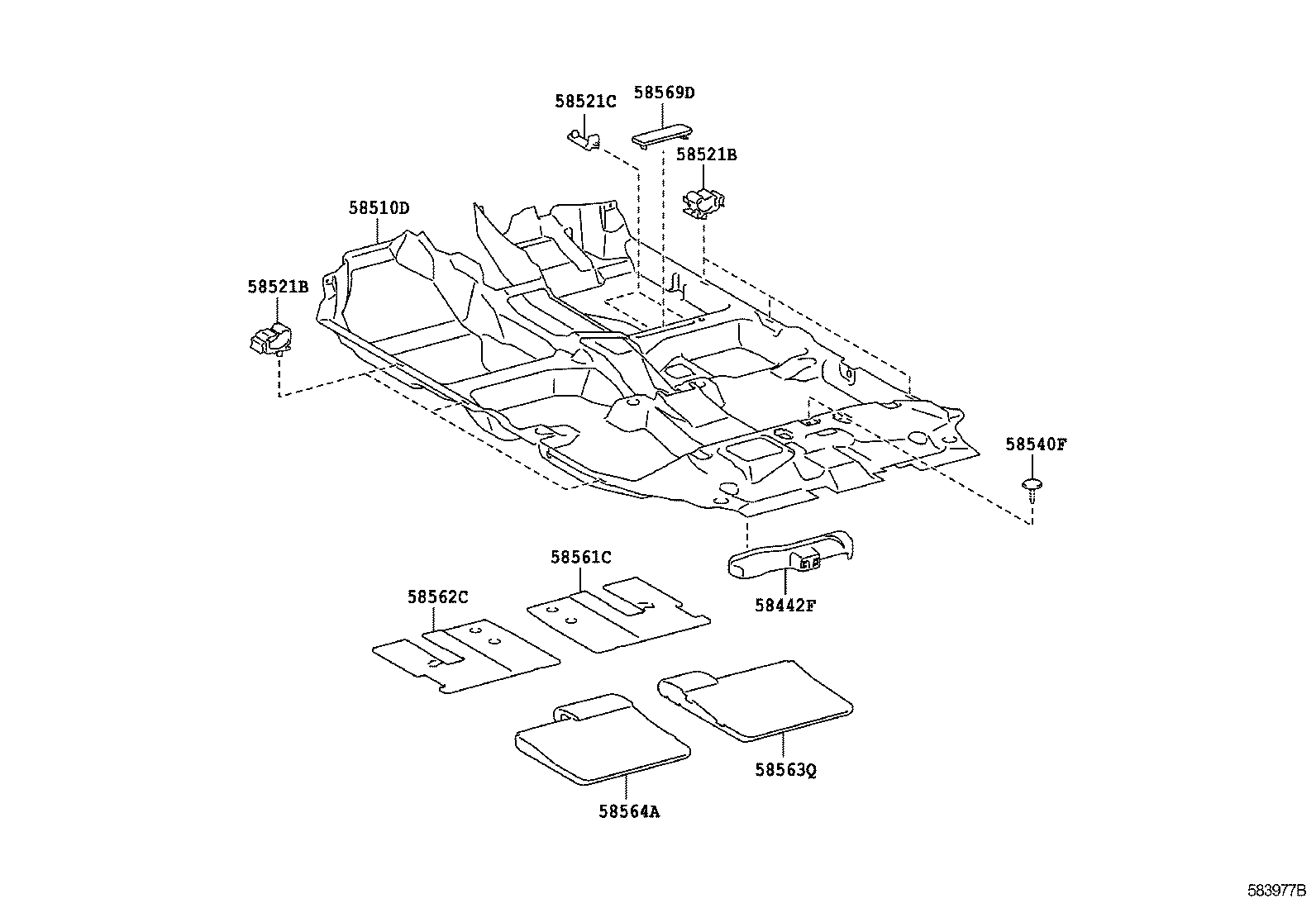

Figure 583976B 583976B 2010-11 → — Figure 583977B 583977B 2010-11 → — Figure 583978G 583978G 2010-11 → —

Part groups

PNCDescription
58320B Cover Assy, Rear Floor Service Hole
58320C Clip(FOR REAR FLOOR SERVICE HOLE COVER)
58415F Board, Rear Floor, NO.1
58442F Cover, Jack
58505C Clip(FOR FRONT FLOOR BOARD)
58505D Board Sub-assy, Front Floor, Rear NO.1
58505E Board Sub-assy, Front Floor, Rear NO.2
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512B Mat, Floor, Front LH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58521C Hook, Floor Carpet NO.2
58540F Clip(FOR REAR FLOOR CARPET)
58551D Carpet, Rear Floor Side
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58569D Cover, Front Floor Caution Plate
58570C Carpet Assy, Rear Floor
71769B Clip, Seatback Board
73371G Hanger, Rear Seat Shoulder Belt
79982 Cover, Seat Leg Box Panel, NO.2
79982A Clip (FOR SEAT LEG BOX PANEL COVER)
79983 Cover, Seat Leg Box Panel, NO.3
79983A Clip, Seat Leg Box Panel Cover, NO.1
79983B Clip, Seat Leg Box Panel Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
