Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

21 part groups · 3 illustrations

Illustrations

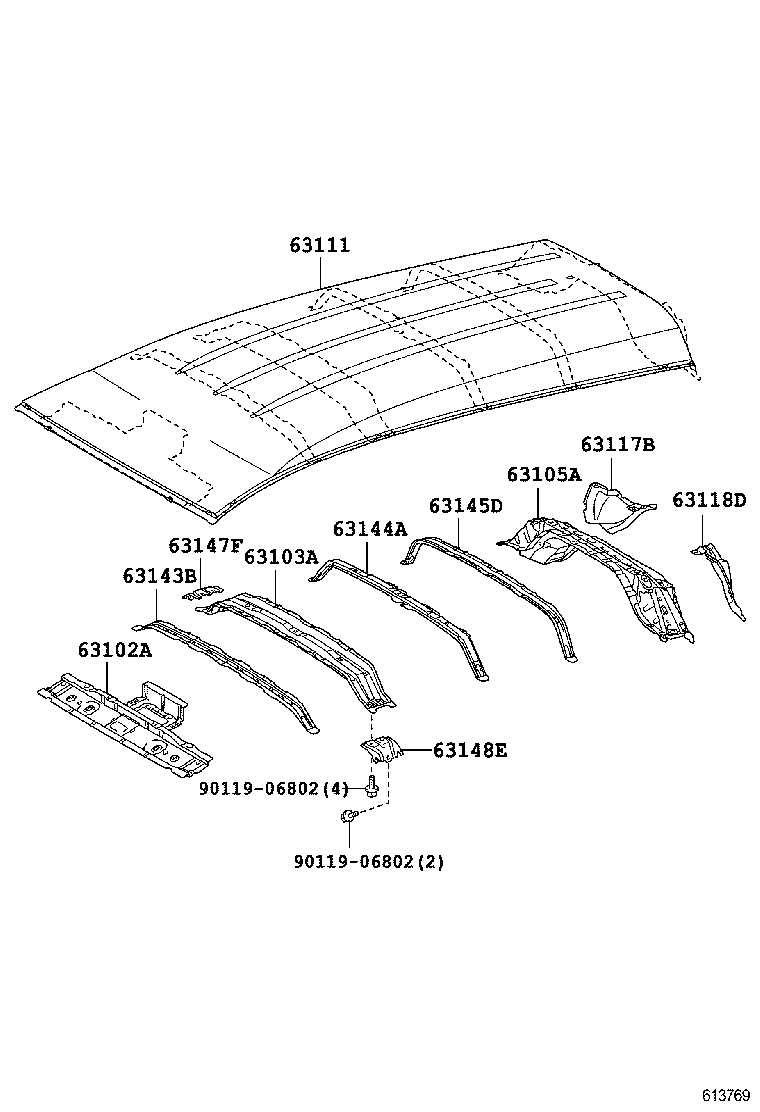

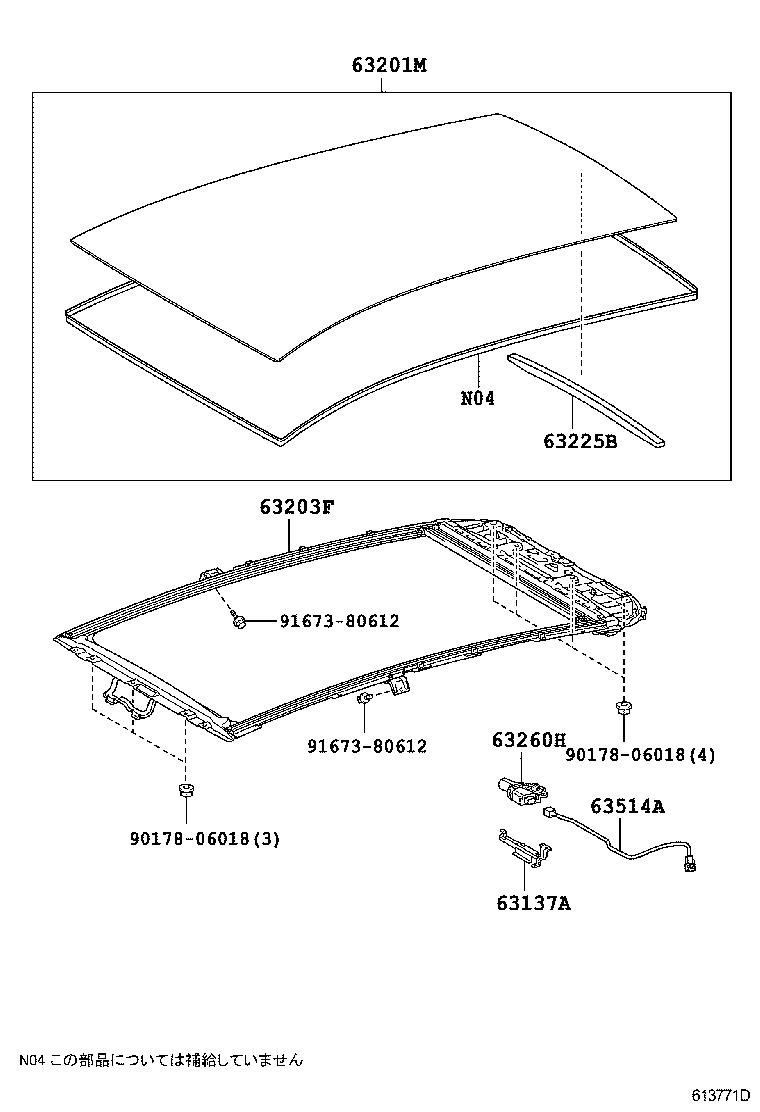

Figure 613770 613770 2010-11 → — Figure 613771D 613771D 2010-11 → — Figure 613769 613769 2010-11 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63113B Panel, Roof, Rear
63117B Panel, Roof, Rear RH
63118D Panel, Roof, Rear LH
63137A Bracket, Dome Lamp, NO.1
63142B Reinforcement, Roof Panel, Rear
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145D Bracket, Roof Reinforcement
63146E Bracket, Roof Reinforcement, NO.2
63147F Bracket, Roof Panel Reinforcement, RH
63148A Reinforcement, Roof Panel, NO.7
63148E Bracket, Roof Panel Reinforcement, LH
63201M Glass Sub-assy, Roof Window, NO.1
63203F Housing Sub-assy, Sliding Roof
63225B Protector, Roof Window Moulding, Upper
63260H Gear Assy, Sliding Roof Drive
63514A Wire, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
