Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

26 part groups · 14 illustrations

Illustrations

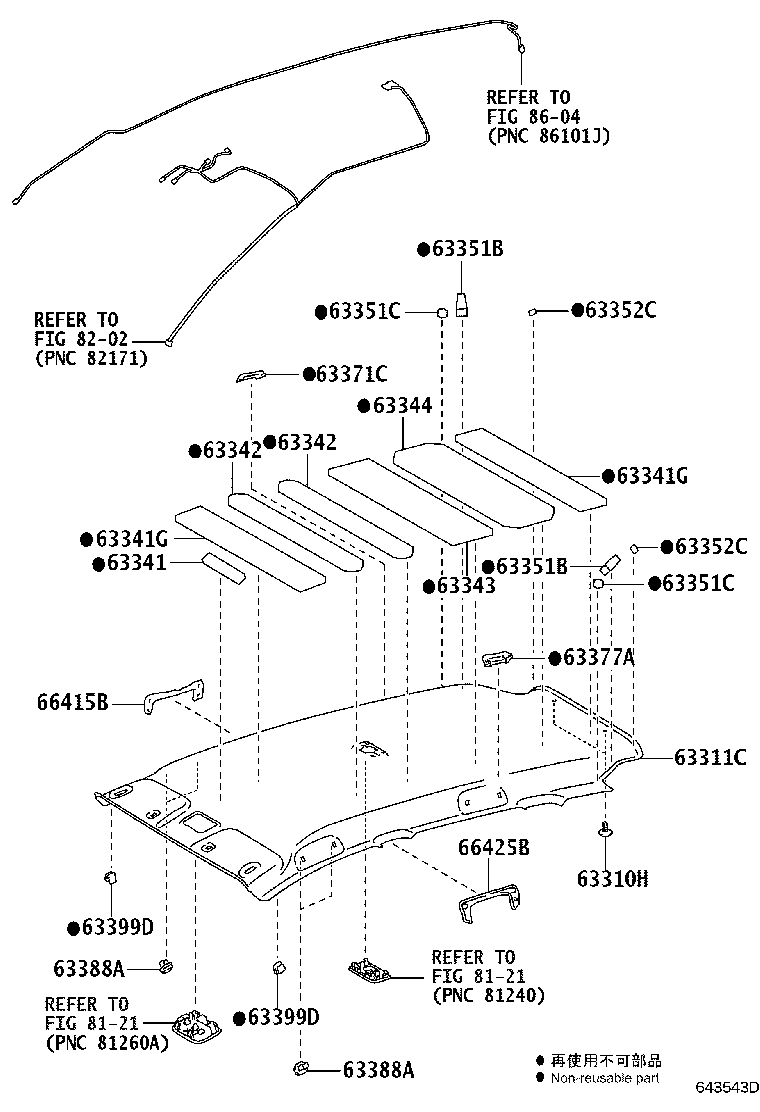

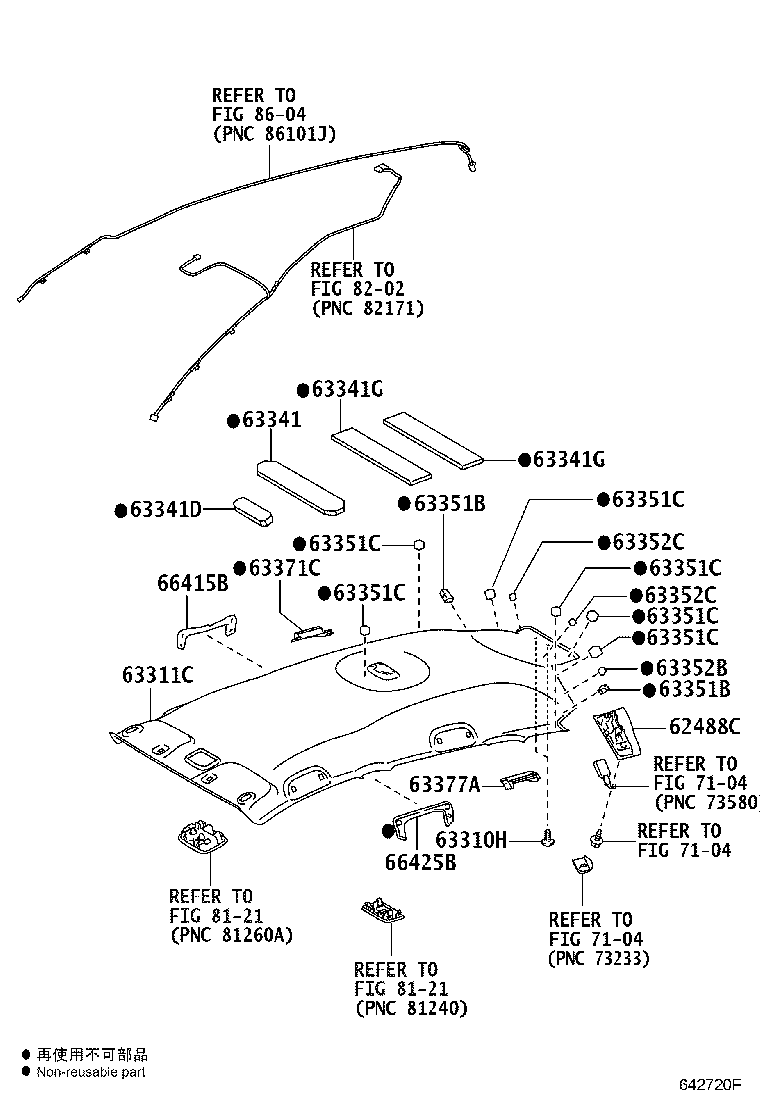

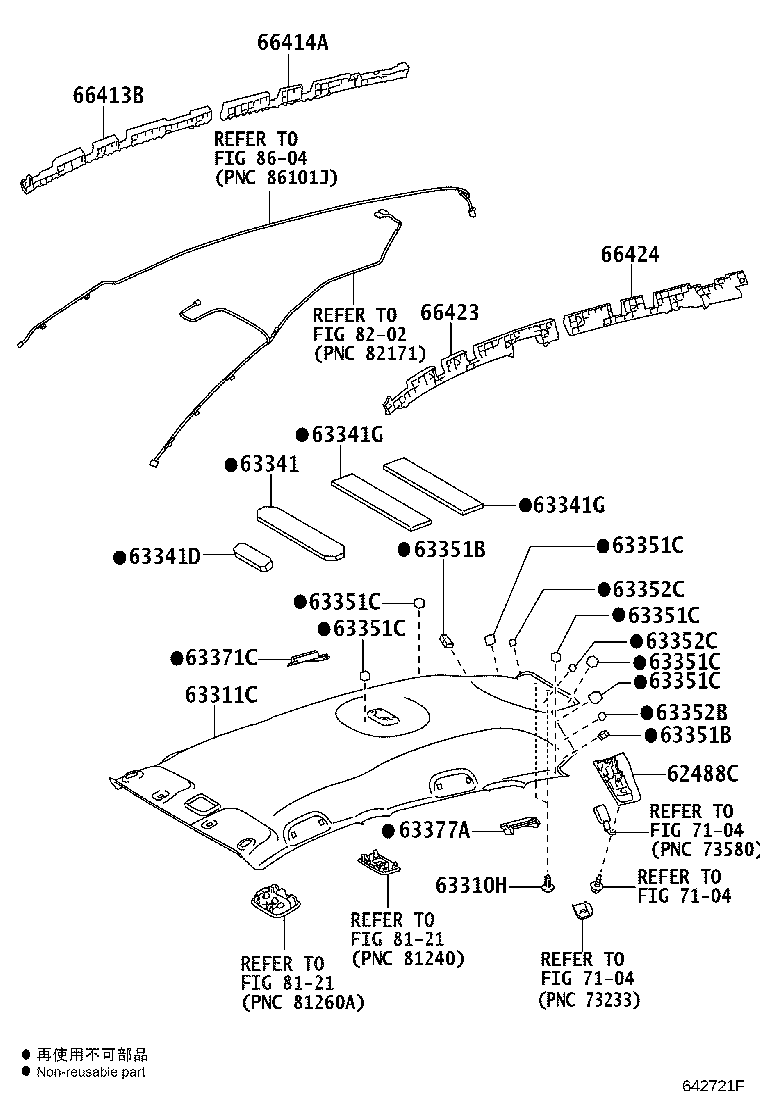

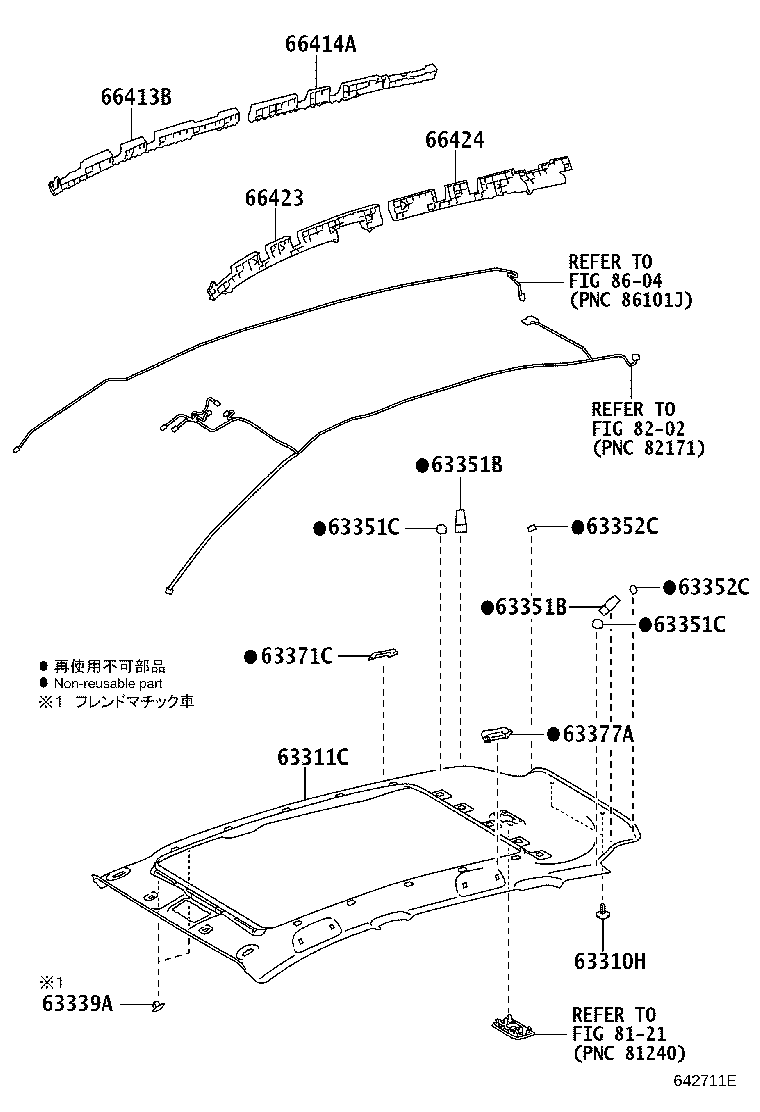

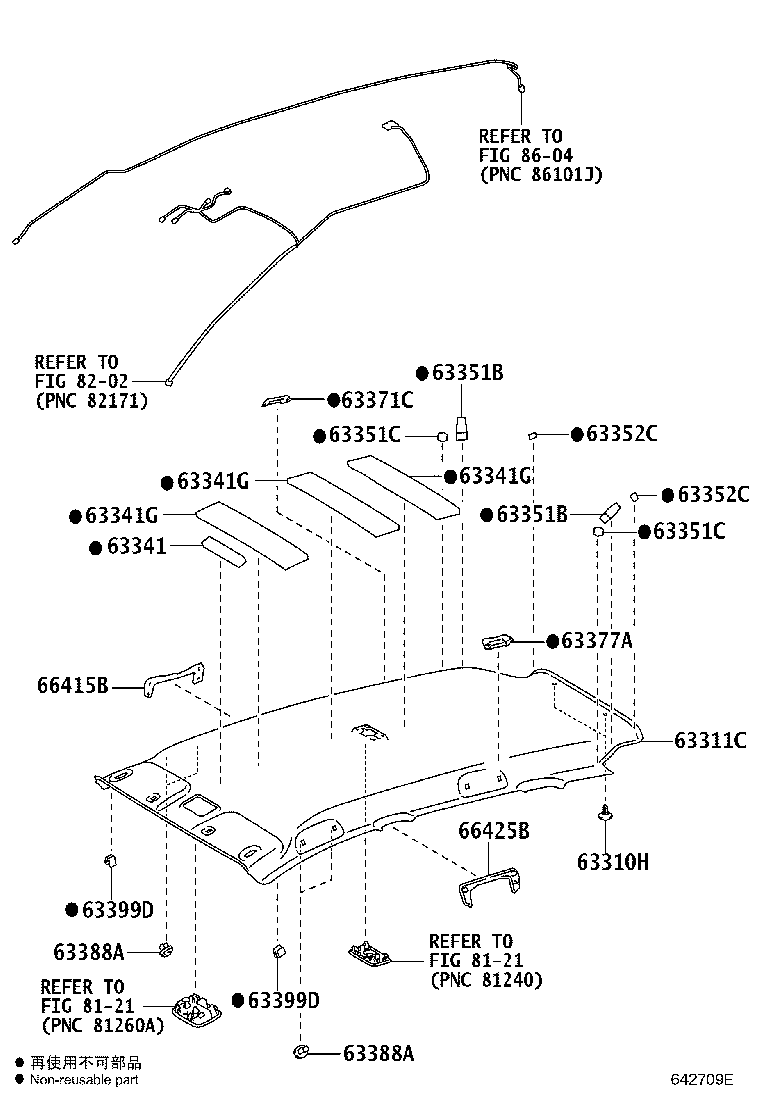

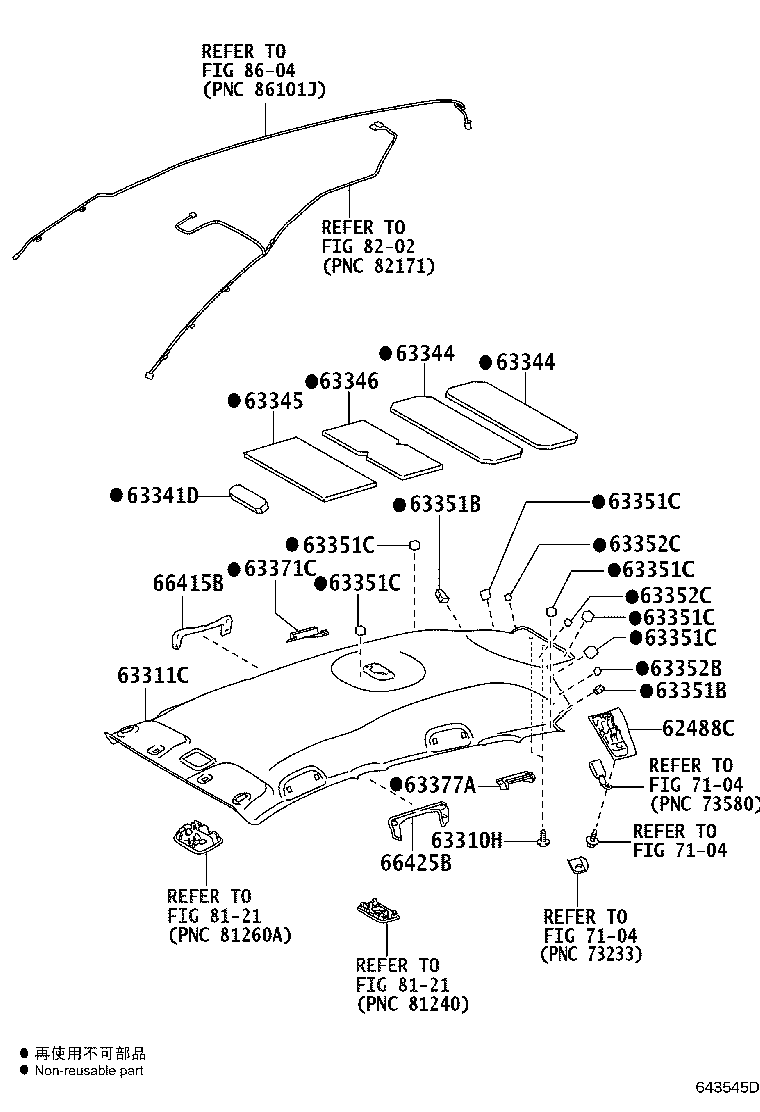

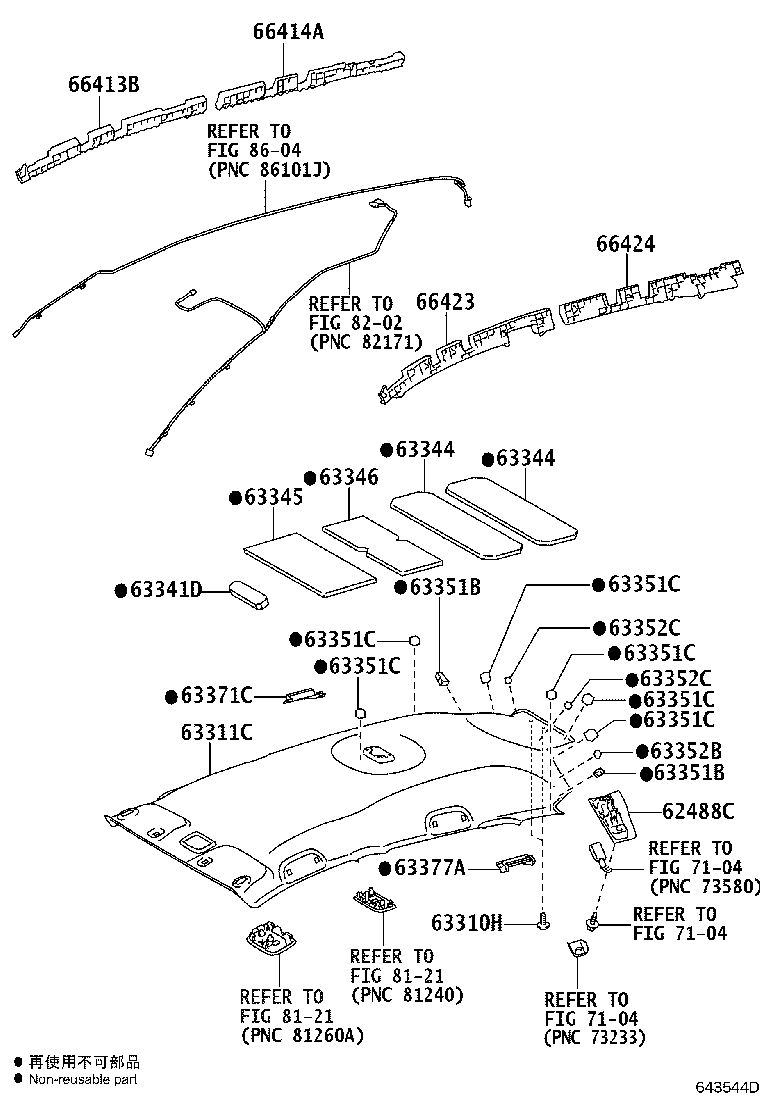

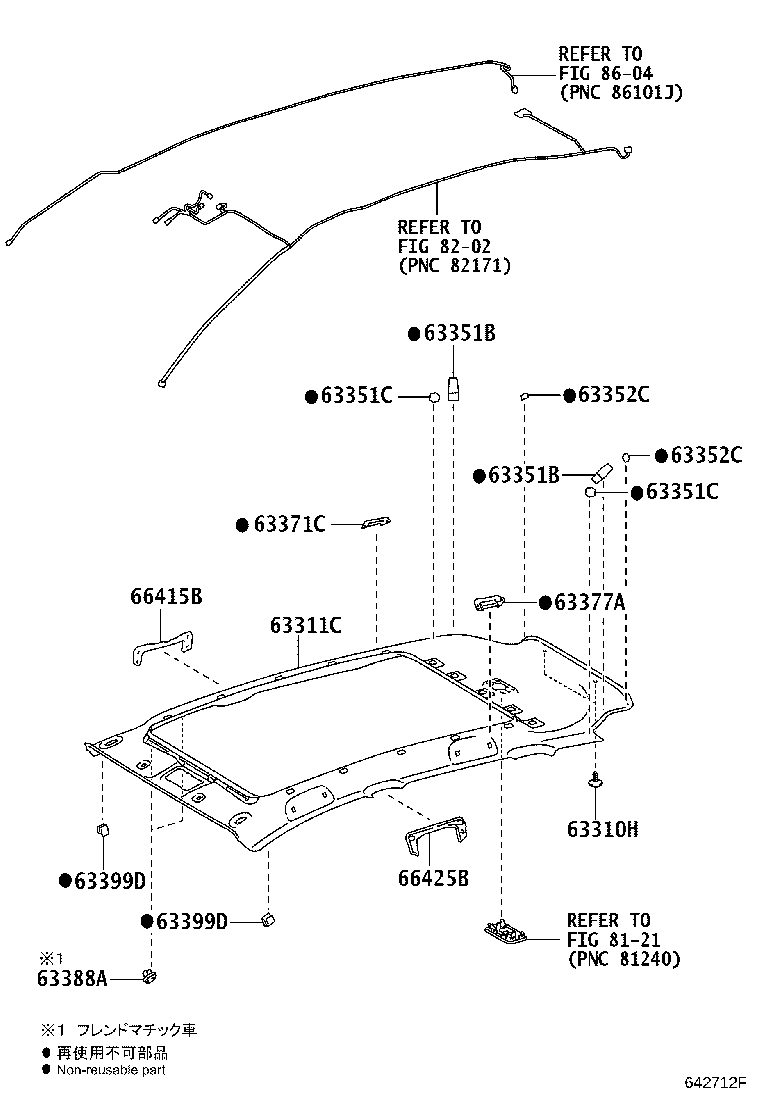

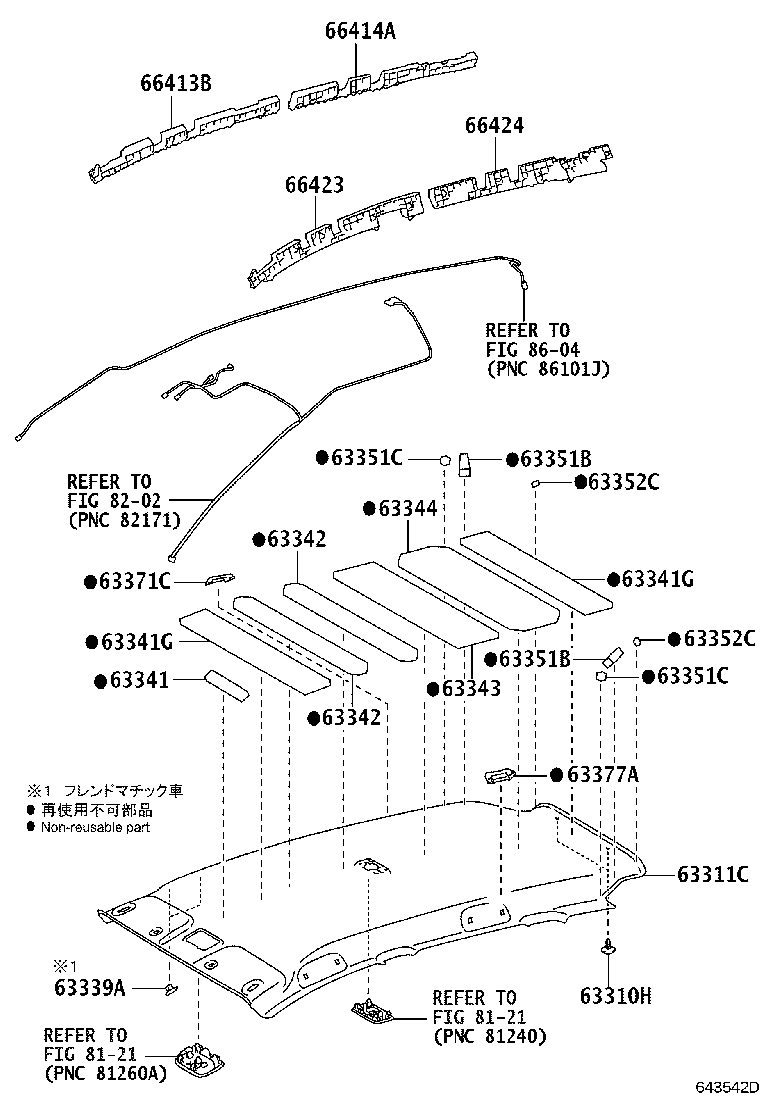

Figure 642710E 642710E 2010-11 → 2014-05 Figure 642710E 642710E 2010-11 → — Figure 642709E 642709E 2010-11 → 2014-05 Figure 642709E 642709E 2010-11 → — Figure 642711E 642711E 2010-11 → — Figure 642712F 642712F 2010-11 → — Figure 642721F 642721F 2010-11 → 2014-05 Figure 642721F 642721F 2010-11 → — Figure 642720F 642720F 2010-11 → 2014-05 Figure 642720F 642720F 2010-11 → — Figure 643542D 643542D 2014-05 → — Figure 643543D 643543D 2014-05 → — Figure 643544D 643544D 2014-05 → — Figure 643545D 643545D 2014-05 → —

Part groups

PNCDescription
62488C Cover, Roof Side Inner Garnish, LH
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63352B Pad, Roof Headlining, Side
63352C Pad, Roof Headlining, End
63371C Retainer, Roof Headlining, NO.1 RH
63377A Retainer, Roof Headlining Support, NO.1
63388A Cover, Roof Headlining Holder
63399D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
