Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01
Back Door Panel & Glass
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |

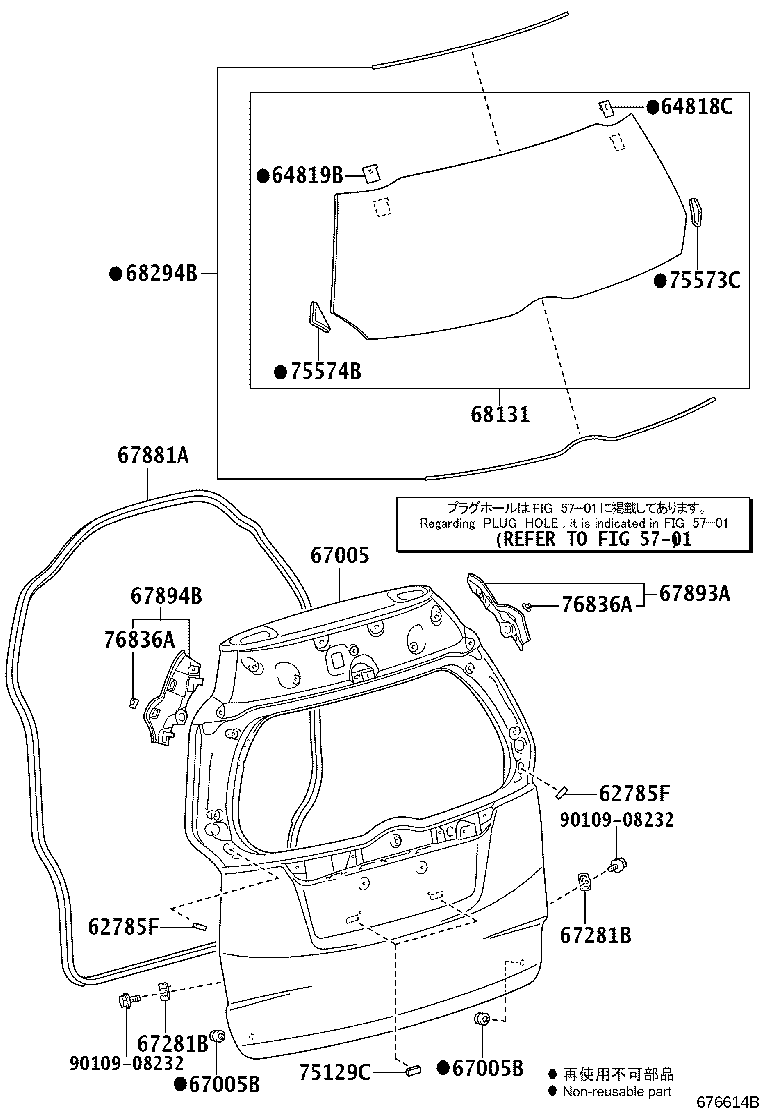

| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67290 | Damper Assy, Back Door |

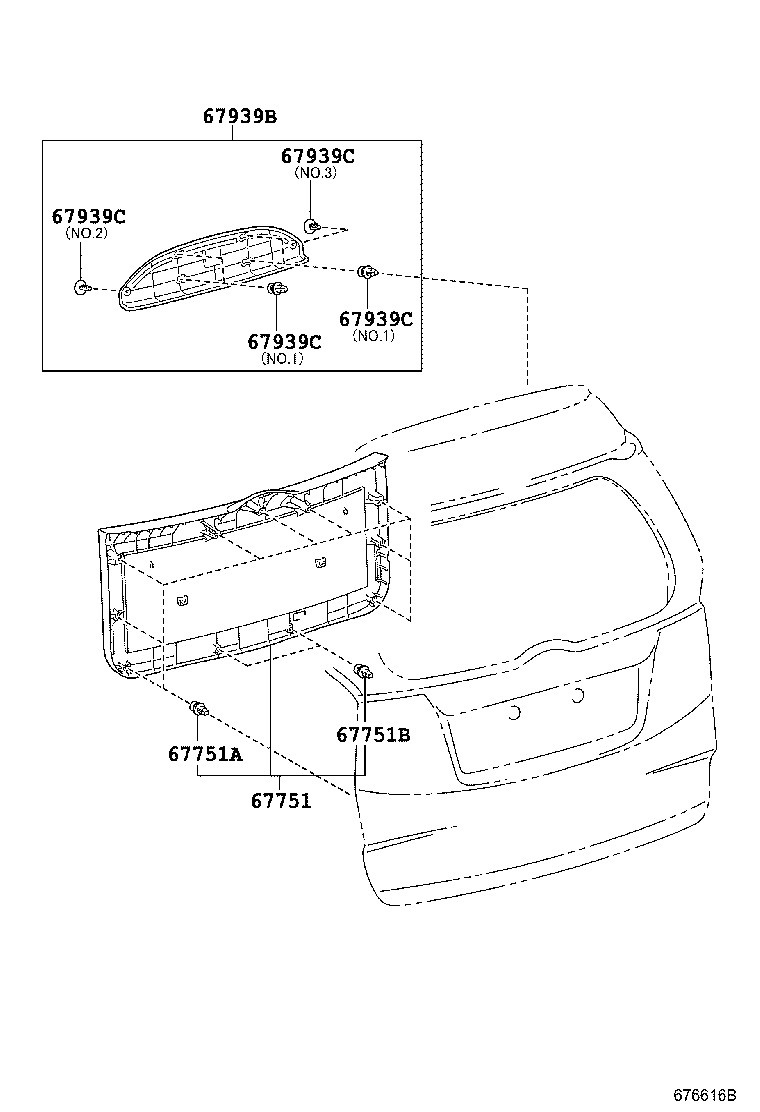

| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67751B | Retainer(FOR BACK DOOR TRIM BOARD) |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 67965 | Hook, Back Door Pull Strap |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 72635E | Hook, Rear Seatback Lock |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 76836A | Retainer, Rear Spoiler Side, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
