Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

27 part groups · 4 illustrations

Illustrations

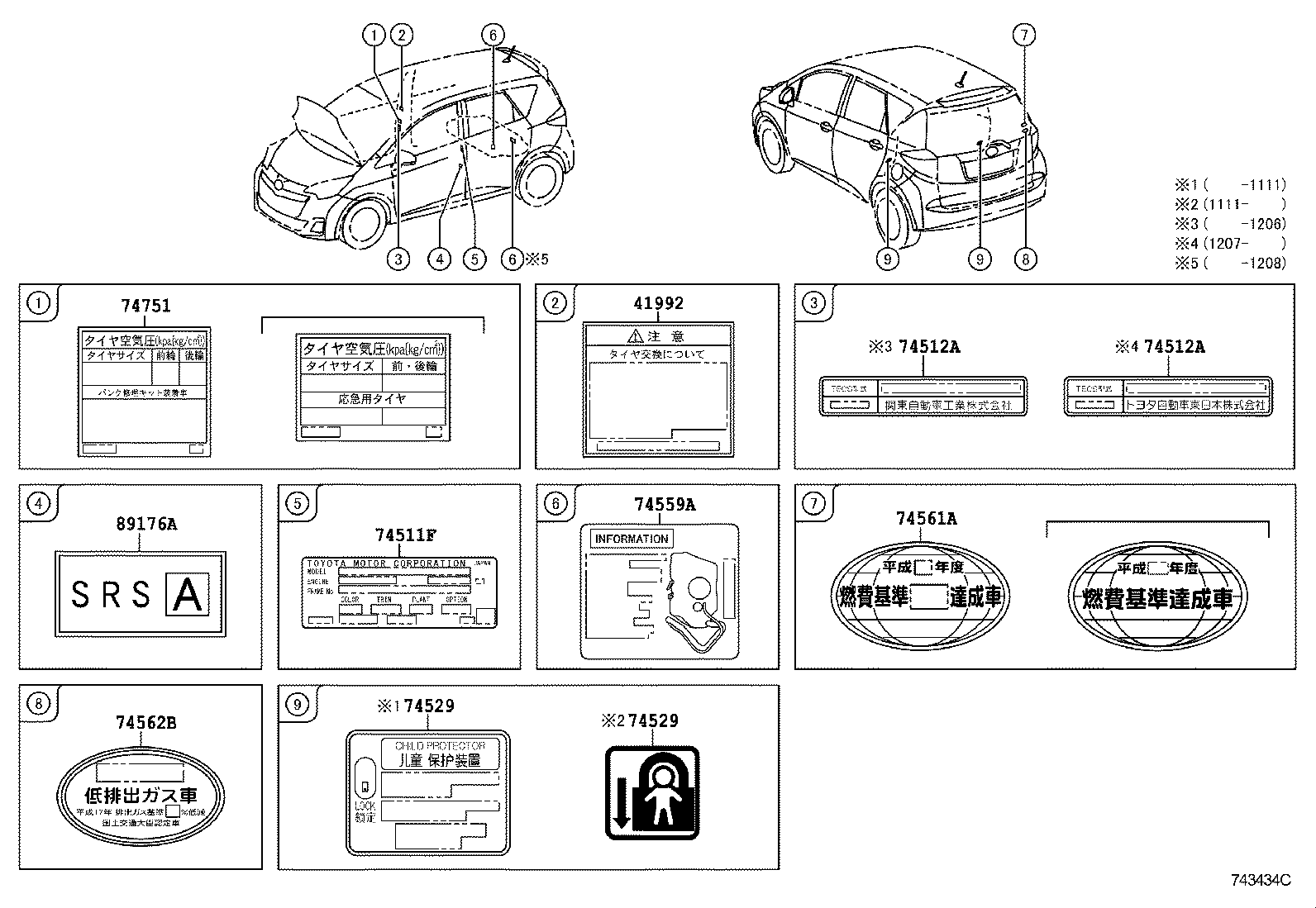

Figure 745926A 745926A 2010-11 → — Figure 742982F 742982F 2010-11 → — Figure 743434C 743434C 2010-11 → — Figure 742983D 742983D 2010-11 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
48969 Label, Jack UP Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74529 Plate, Child Proof OR Child Protector Lock Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
86995E Label, Caution
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6161 Label, Power Lift Caution
C6161A Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6184A Plate, Wheel Chair Holder Caution, NO.3
C6184B Label, Table Set Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
