Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01
Mudguard & Spoiler
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

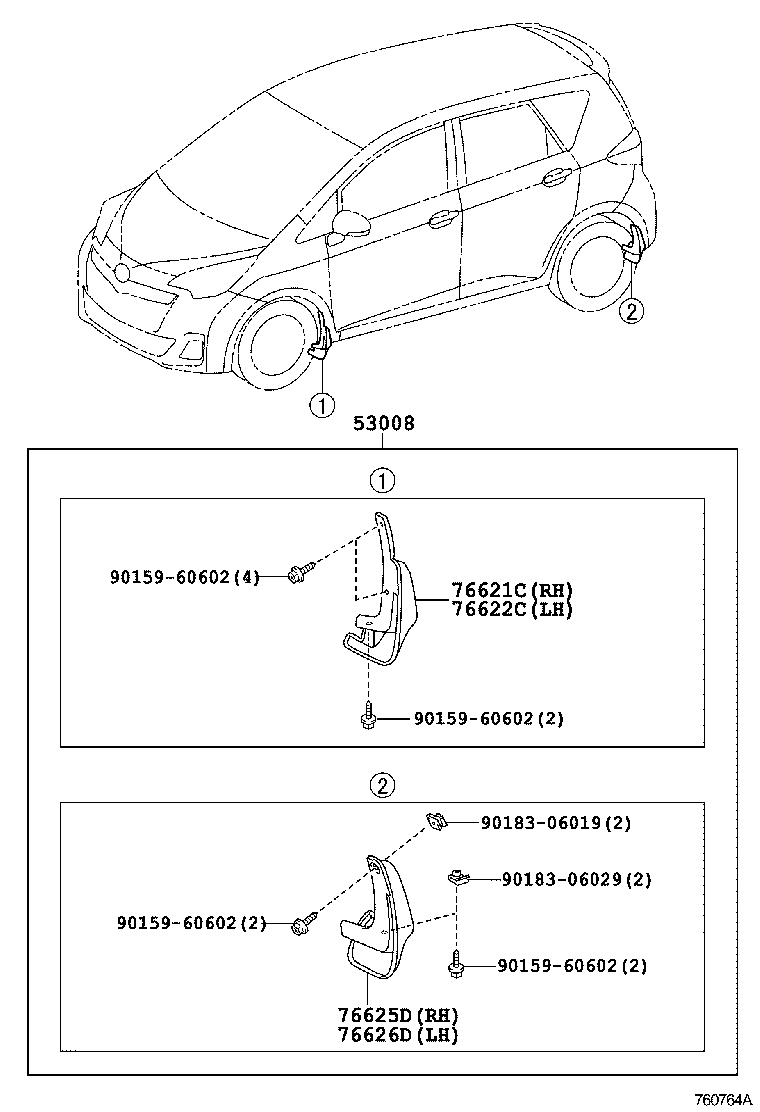

| 53008 | Mudguard Set |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75867B | Clip, Rocker Panel Moulding |
| 75868C | Clip, Rear Spoiler, NO.2 |

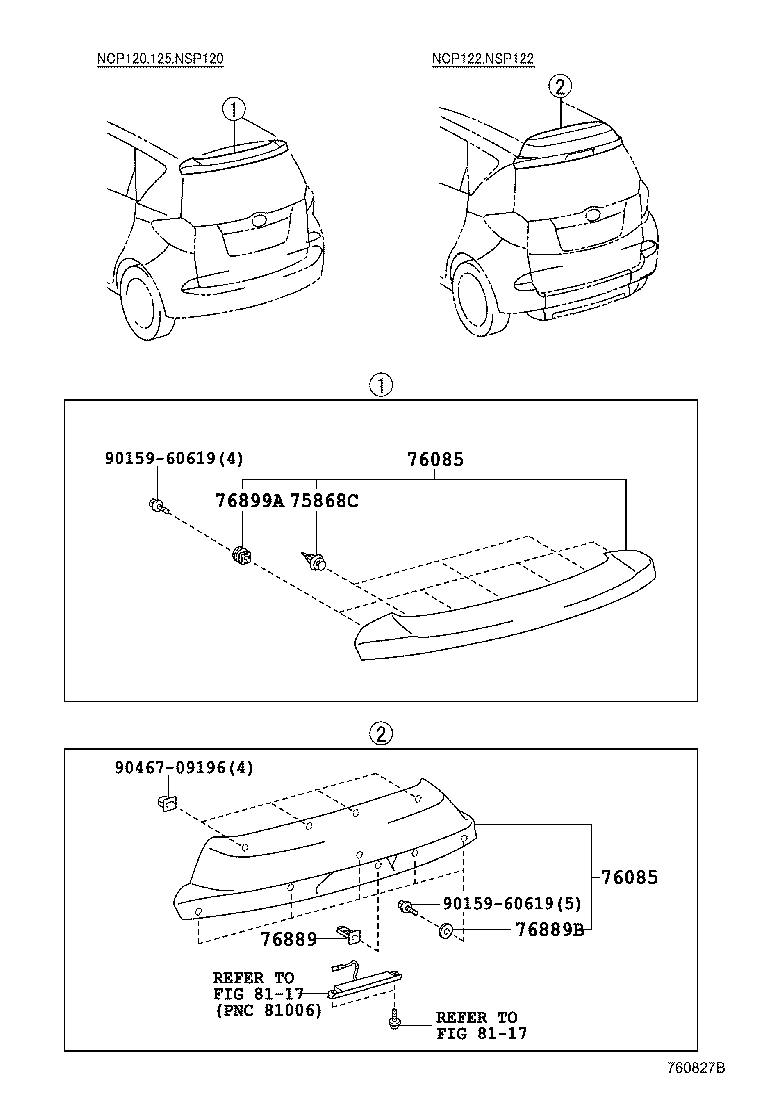

| 76085 | Spoiler Sub-assy, Rear |
| 76621C | Mudguad, Front Fender, RH |
| 76621F | Screw, NO.1 |
| 76621G | Grommet, NO.1 |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76851 | Cover, Front Spoiler |
| 76869D | Screw, NO.2 |
| 76889 | Clip, Rear Spoiler, NO.2 |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76899A | Nut, Rear Spoiler |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76923A | Retainer, Side Mudguard |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
