Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 3 illustrations

Illustrations

Figure 87B639A

87B639A 2010-11 → —

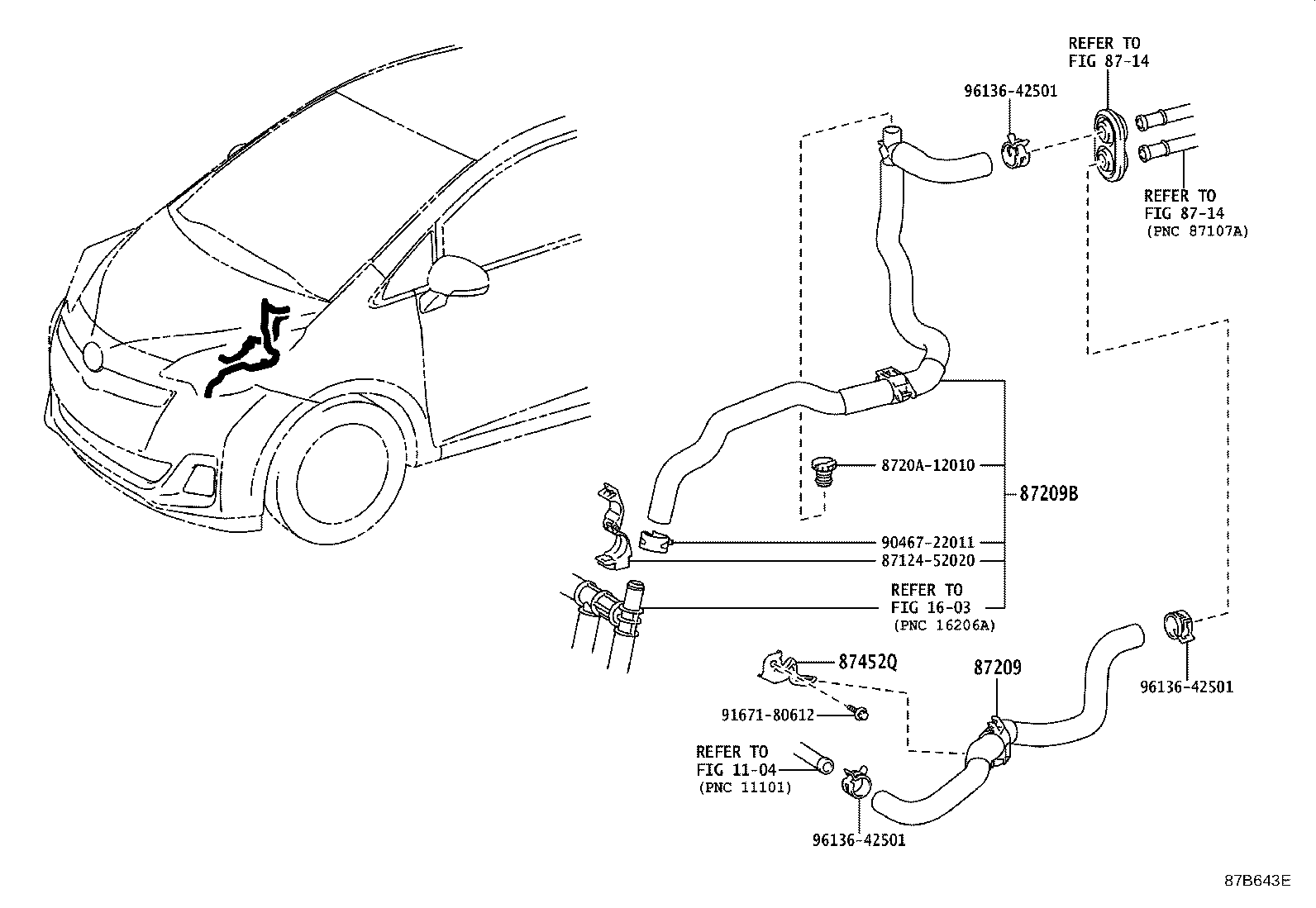

Figure 87B643E

87B643E 2010-11 → 2014-05

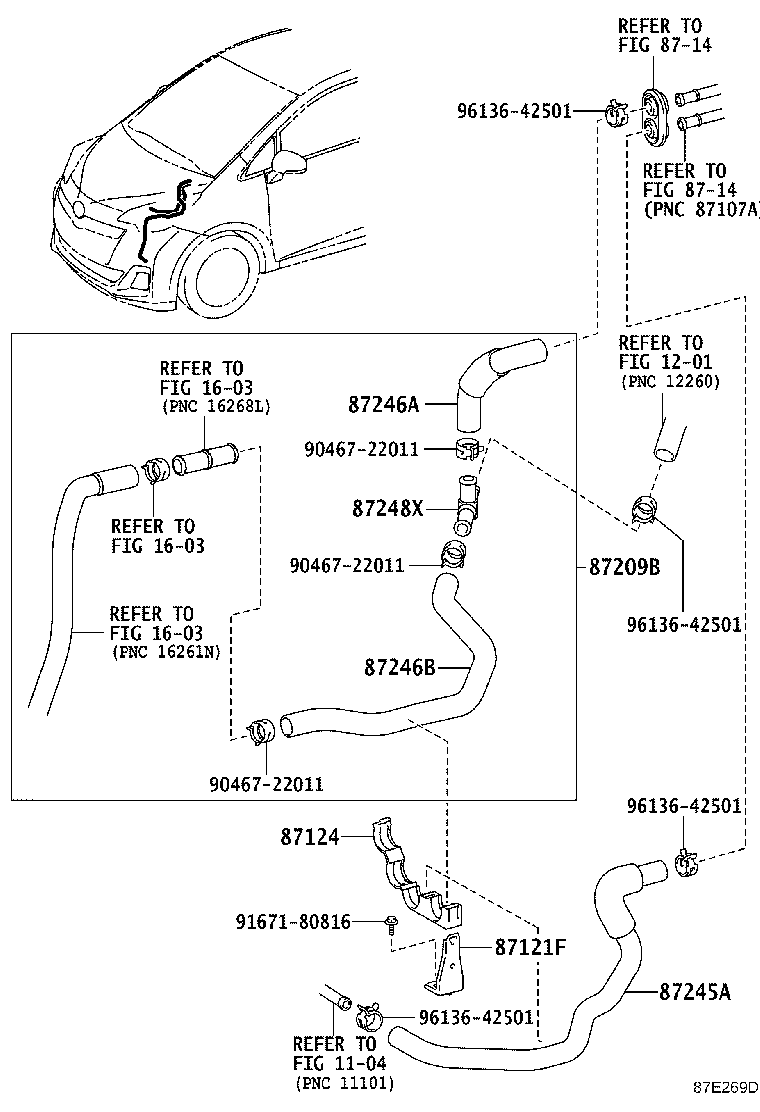

Figure 87E269D

87E269D 2014-05 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87124	Clamp, Heater
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
