Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 3 illustrations

Illustrations

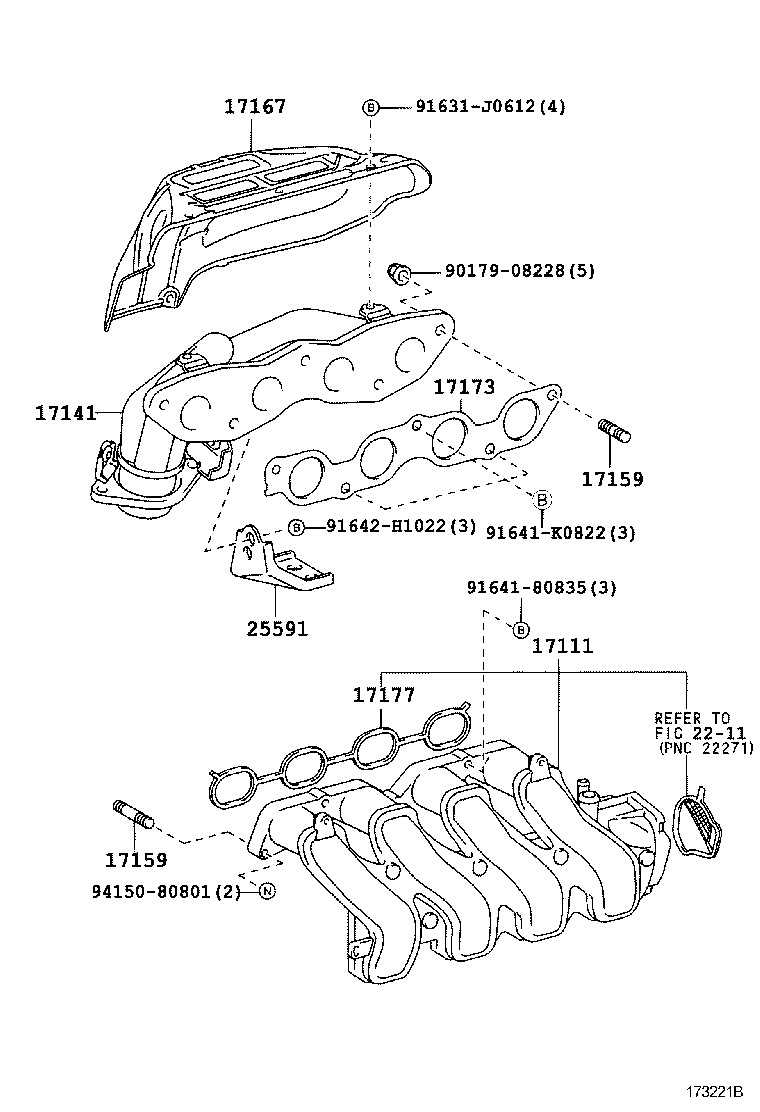

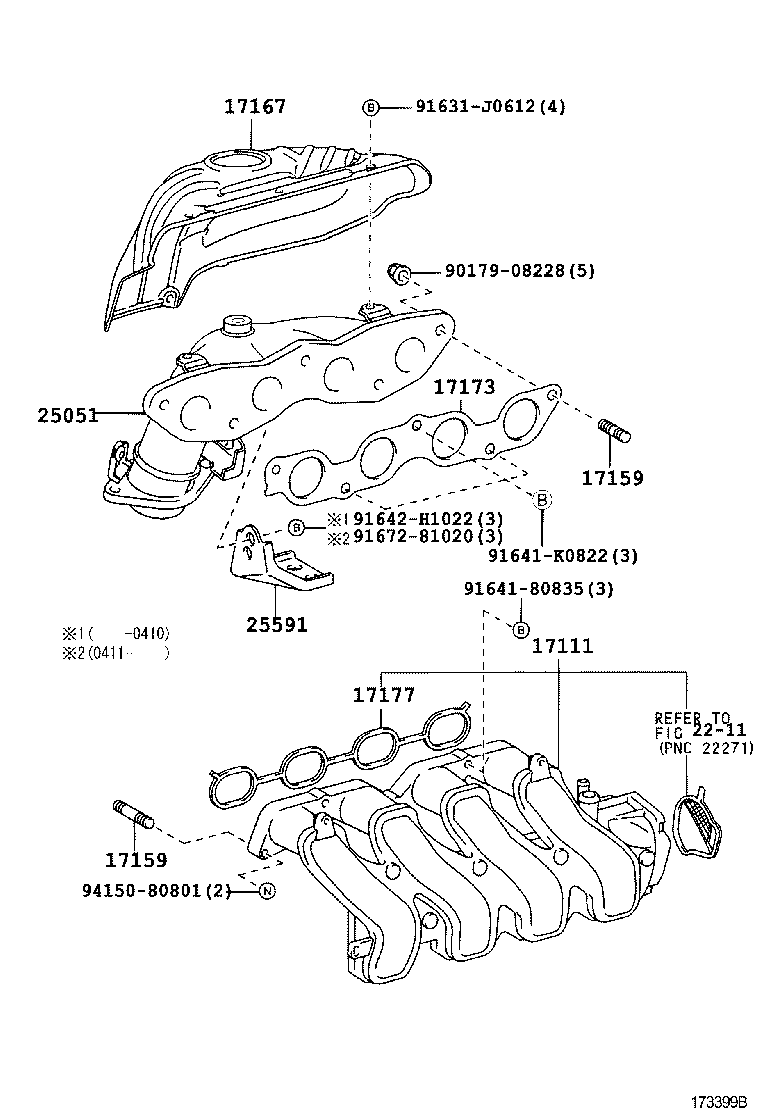

Figure 173220F 173220F 2000-01 → — Figure 173221B 173221B 2000-01 → 2002-08 Figure 173399B 173399B 2002-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
