Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 3 illustrations

Illustrations

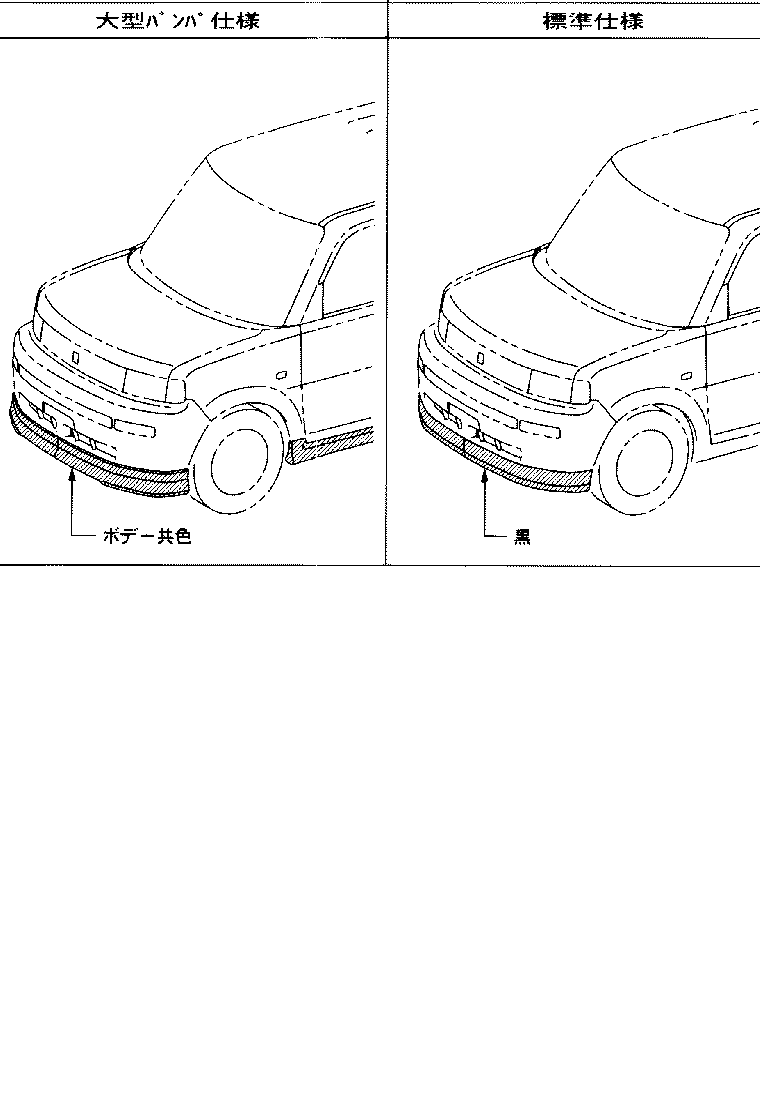

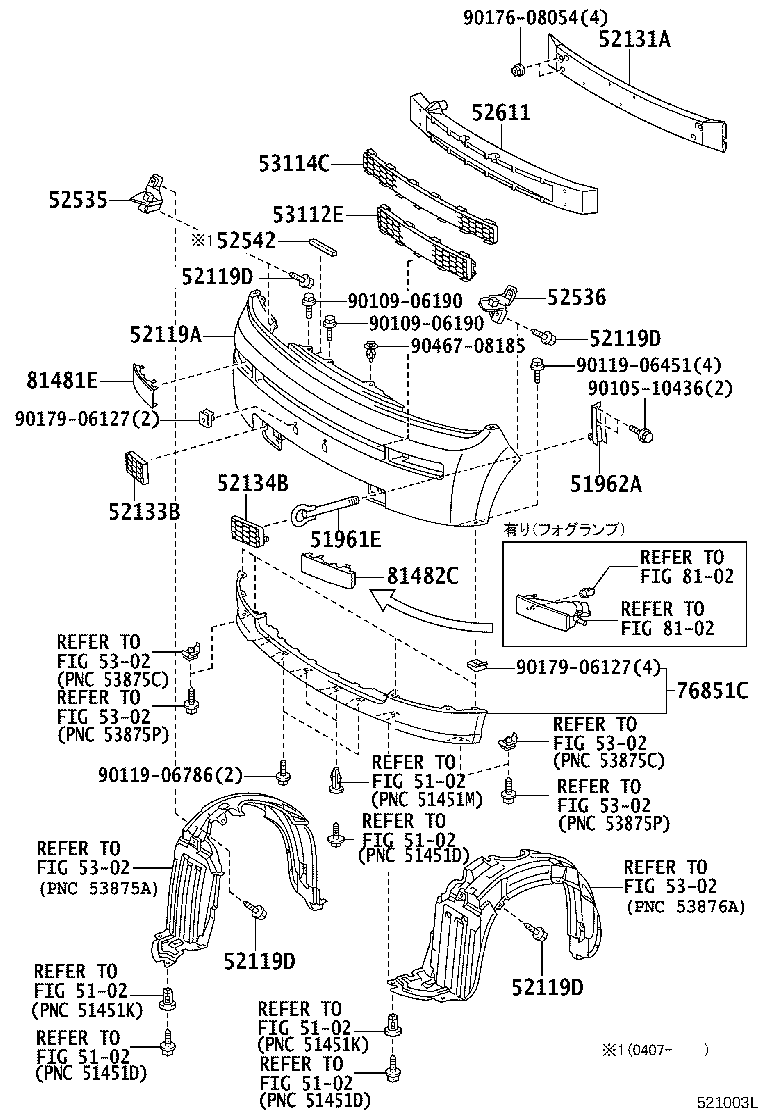

Figure 520602L 520602L 2000-01 → 2003-04 Figure 520843A 520843A 2000-01 → 2003-04 Figure 521003L 521003L 2003-04 → —

Part groups

PNCDescription
51961E Hook, Front
51962A Hook, Front LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52131A Reinforcement, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52542 Seal, Front Bumper, Center
52611 Absorber, Front Bumper Energy
53112D Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113D Grille, Radiator, Lower LH
53114C Grille, Radiator, Inner
76851C Front Spoiler
76852D Cover, FR Spoiler, LH
81481C Bracket, Fog Lamp
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
