Toyota BB/Open Deck
2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan
Discontinued model
Data version 2006-07

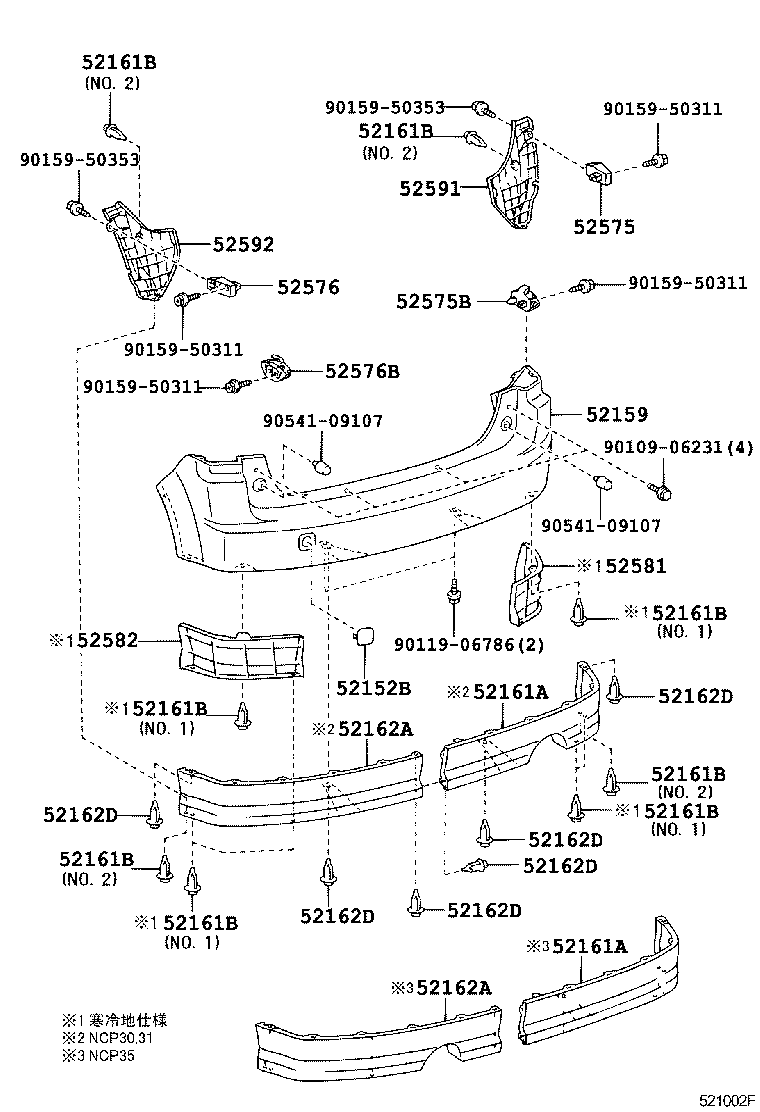

Rear Bumper & Bumper Stay
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161A | Piece, Rear Bumper, RH |
| 52161B | Piece, Rear Bumper |
| 52162A | Piece, Rear Bumper, LH |
| 52162D | Piece, Rear Bumper |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52575B | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52576B | Retainer, Rear Bumper Side, LH |
| 52581 | Protector, Rear Bumper, RH |
| 52582 | Protector, Rear Bumper, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 75124B | Bracket, Rear License Plate Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
