Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 7 illustrations

Illustrations

550688G 2000-01 → —

550689E 2000-01 → 2003-04

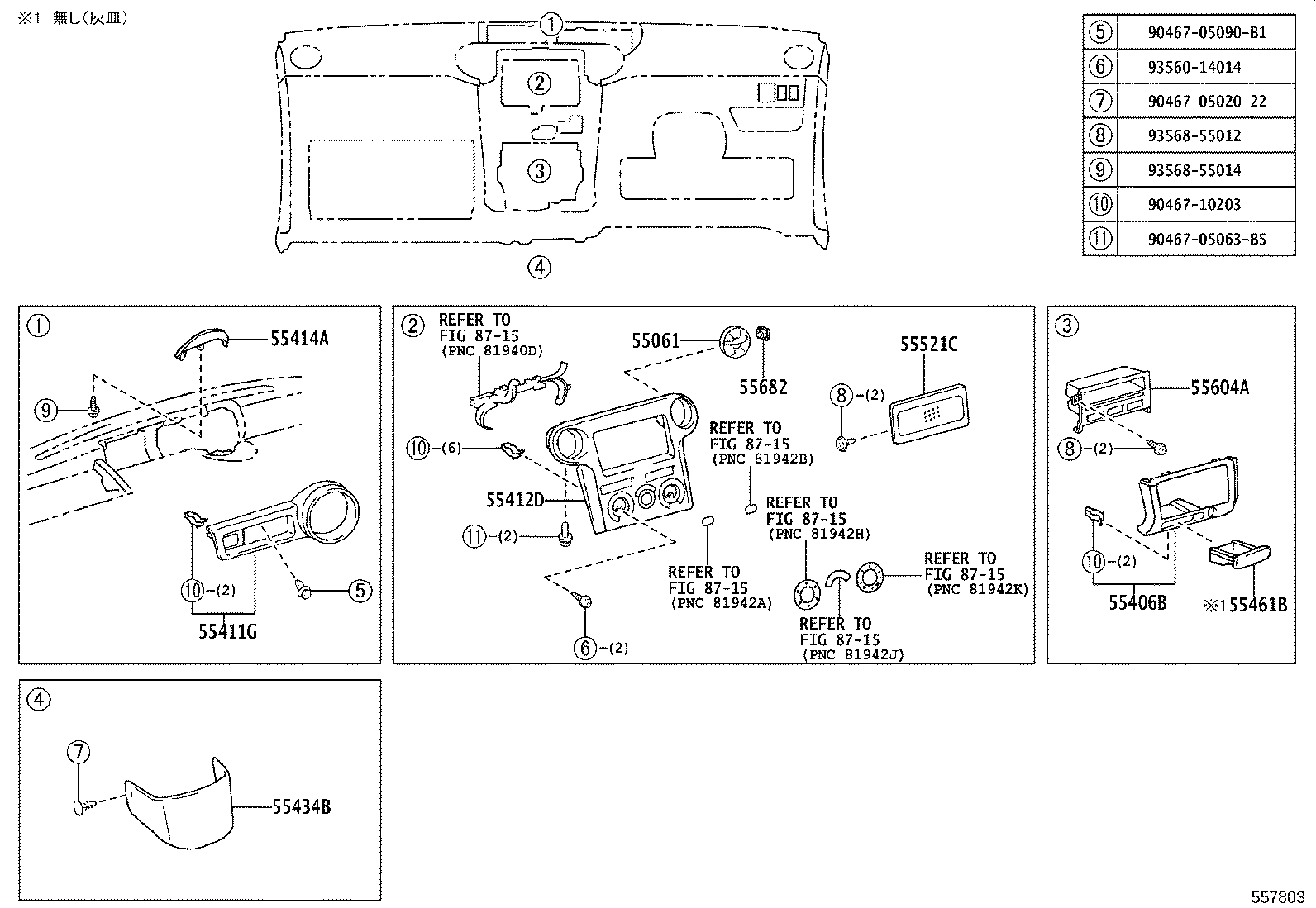

557803 2000-01 → 2003-04

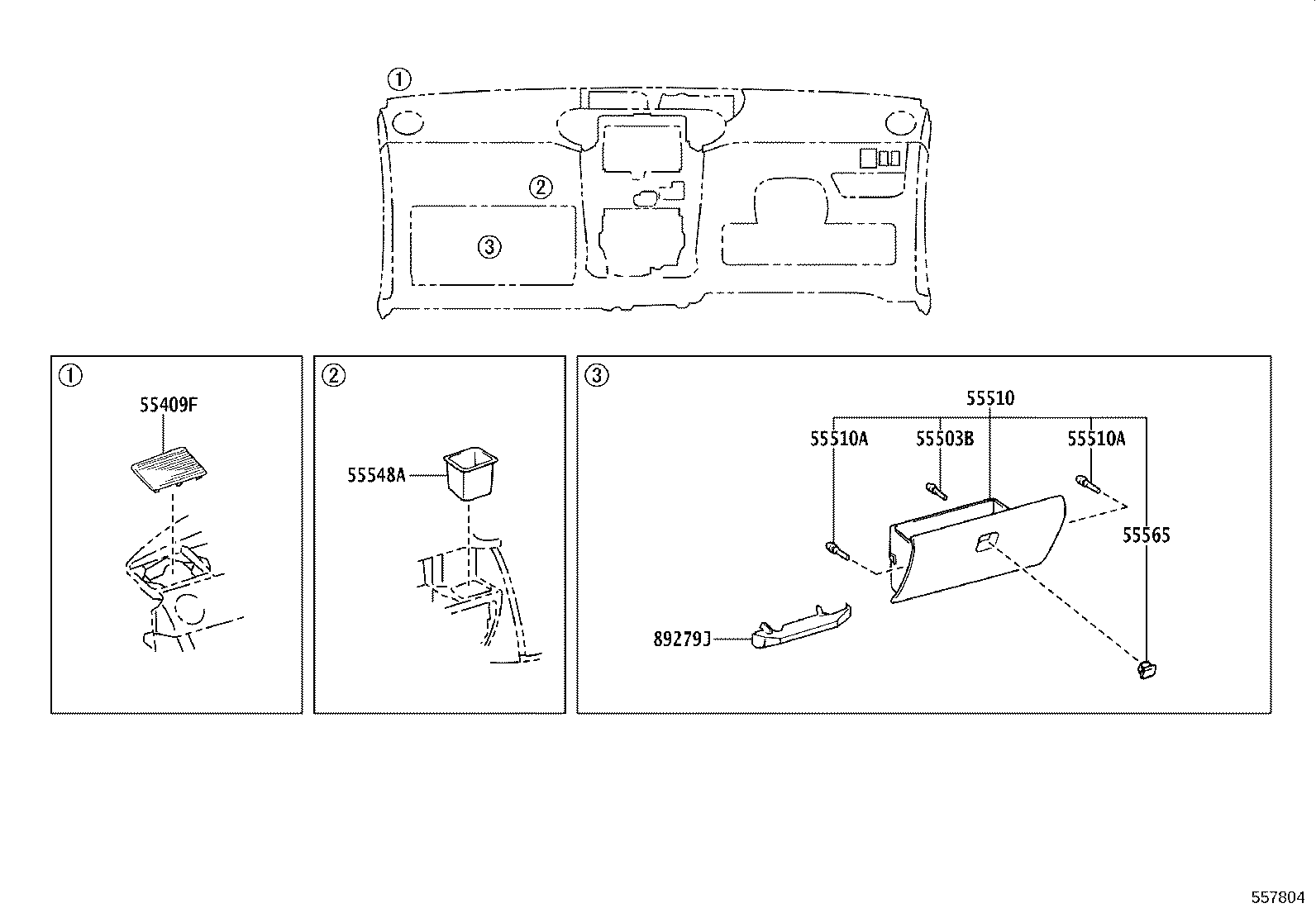

557804 2000-01 → 2003-04

551143B 2003-04 → —

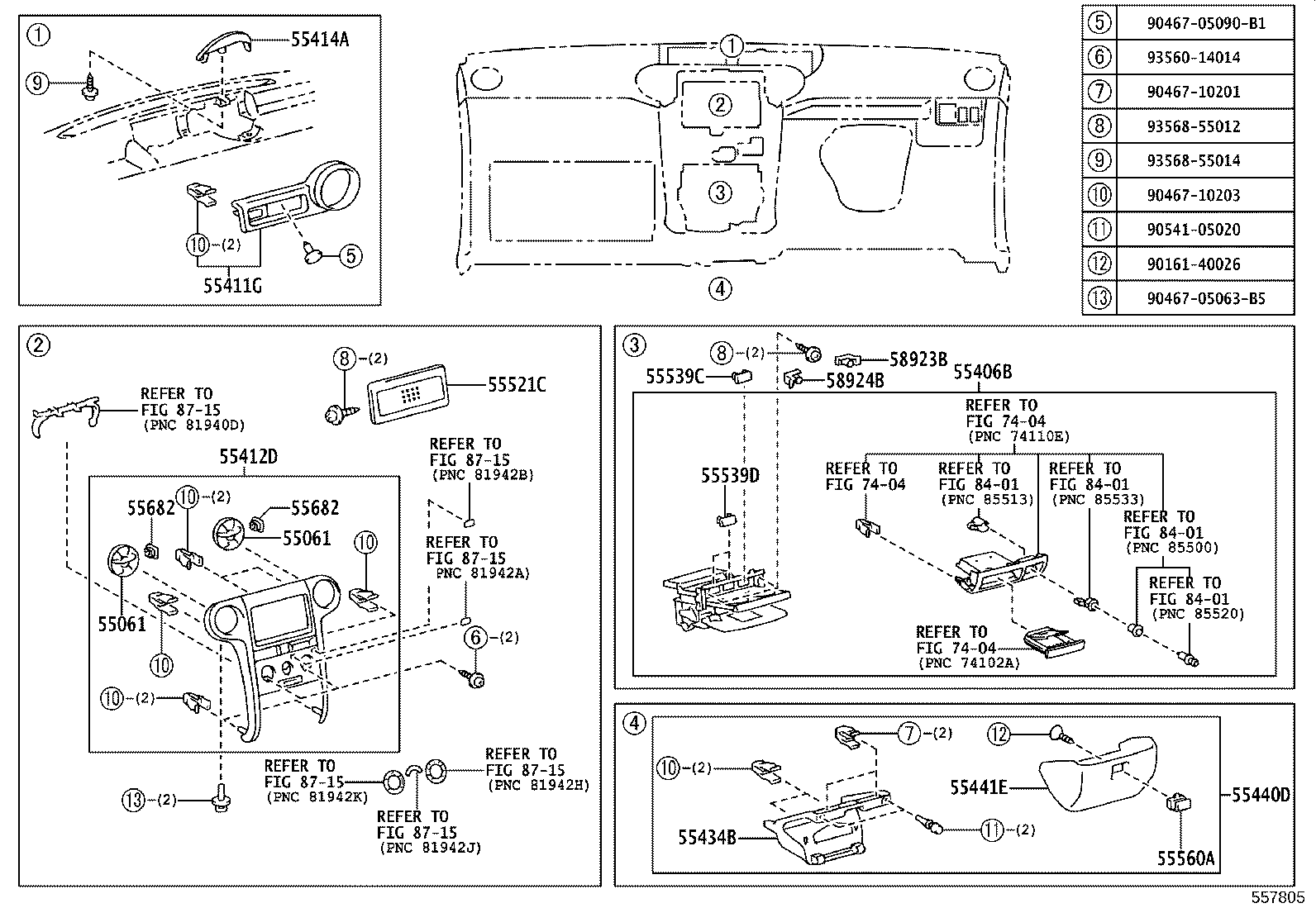

557805 2003-04 → —

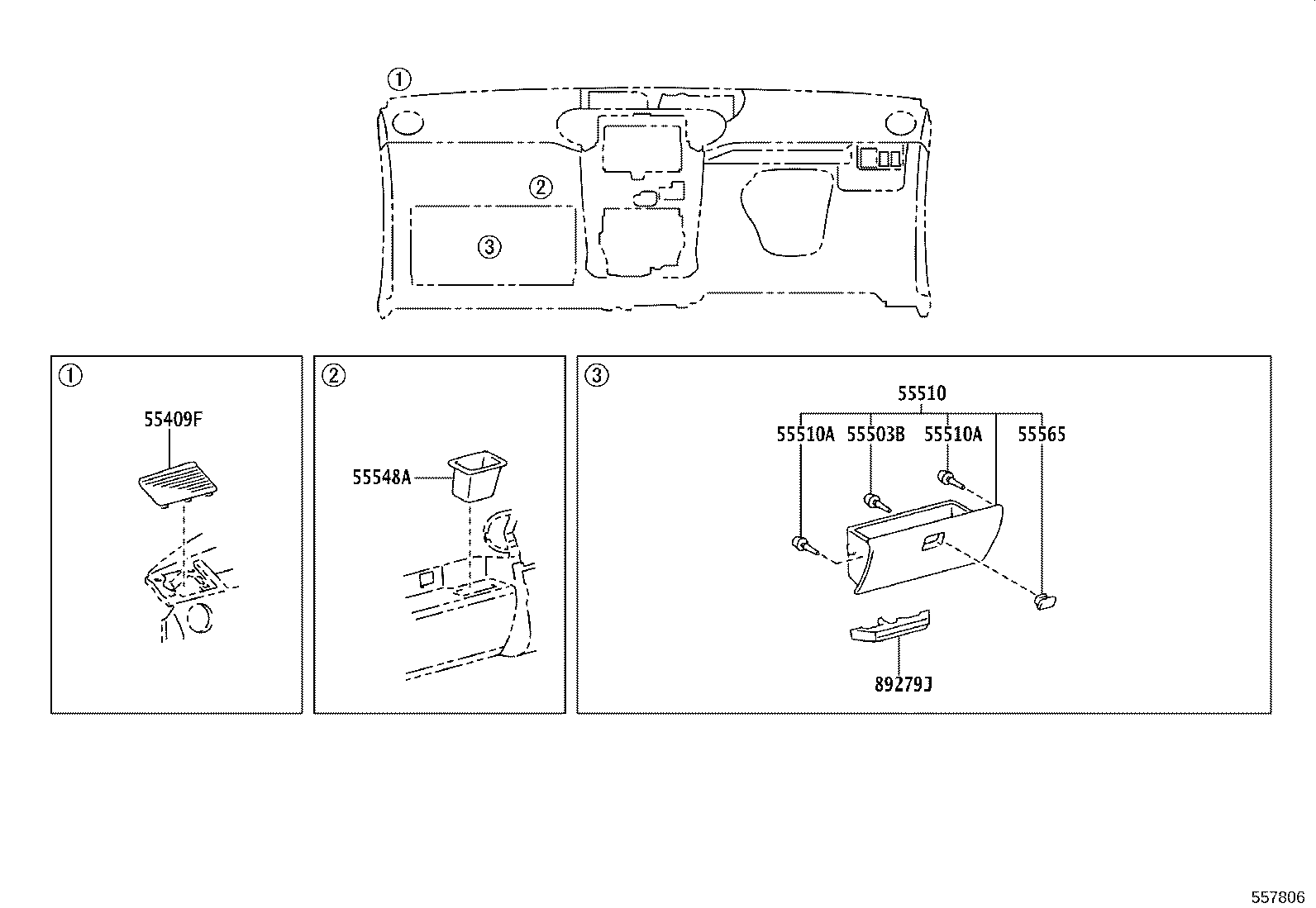

557806 2003-04 → —

Part groups

PNC	Description
55061	Register Sub-assy, Instrument Panel, NO.1
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55310	Panel Assy, Instrument, Lower
55331	Reinforcement, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55376	Bracket, Instrument Panel Mounting, NO.1
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55414A	Panel, Instrument Cluster Finish, End
55431B	Panel, Instrument Panel Finish, Upper
55434B	Panel, Instrument Panel Finish, Lower Center
55440D	Box Assy, Instrument Panel
55441C	Box, Instrument Panel Coin
55441E	Box, Instrument Panel
55461B	Box, Instrument Panel, Center
55503B	Cushion(FOR GLOVE COMPARTMENT)
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C	Cover, Stereo Opening
55539C	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55547E	Cover, Instrument Panel Hole, NO.3
55548A	Cover, Instrument Panel Hole
55560A	Lock Assy, Glove Compartment Door
55565	Handle, Glove Compartment Door Lock
55604A	Holder Sub-assy, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55682	Spring, Instrument Panel Register Support
55950A	Nozzle Assy, Defroster
58923B	Panel, Console Rear End
58924B	Panel, Console Rear End, NO.2
73970A	Airbag Assy, Instrument Panel Passenger
89279J	Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
