Toyota BB/Open Deck
2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan
Discontinued model
Data version 2006-07

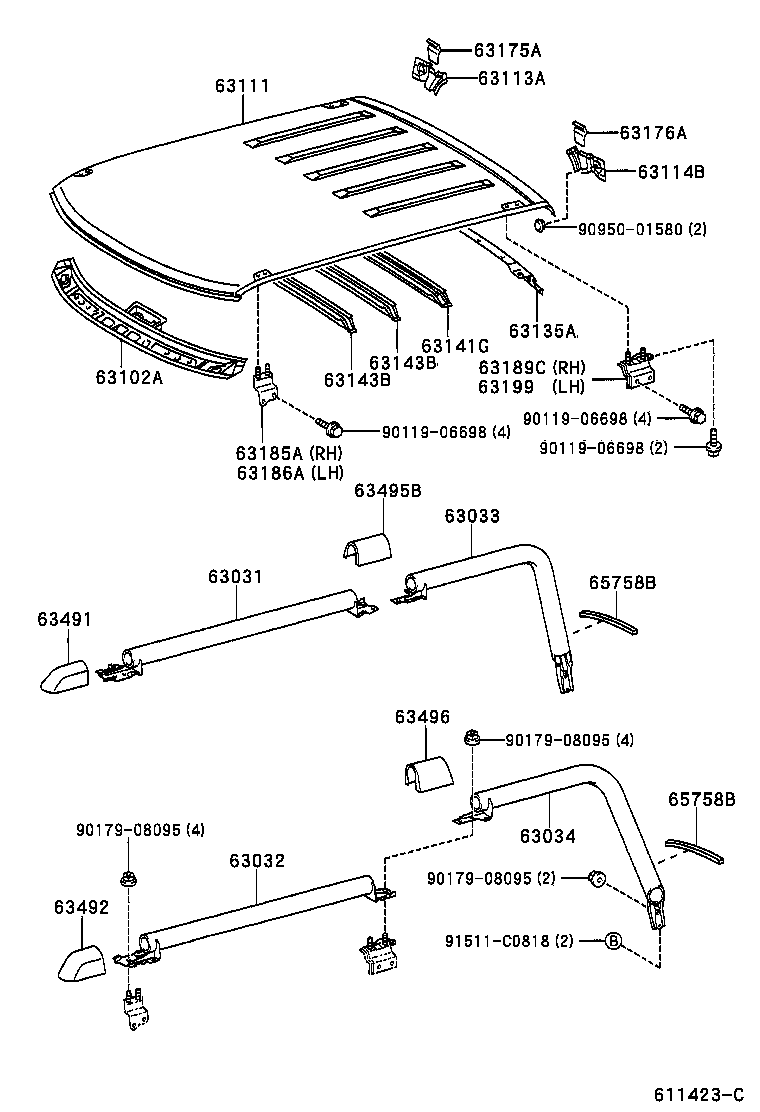

Roof Panel & Back Window Glass
55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61824A | Plate, Noise Control, NO.1 |
| 63031 | Rack Sub-assy, Roof, Front RH |
| 63032 | Rack Sub-assy, Roof, Front LH |
| 63033 | Rack Sub-assy, Roof, Rear RH |
| 63034 | Rack Sub-assy, Roof, Rear LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63113A | Panel, Roof, NO.3 |
| 63114B | Panel, Roof, NO.4 |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63132 | Panel, Windshield Header, Inner |
| 63135A | Frame, Back Door Opening, Lower |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63175A | Reinforcement, Back Door Hinge Female, RH |
| 63176A | Reinforcement, Back Door Hinge Female, LH |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63189C | Bracket, Roof Rack, Center RH |
| 63199 | Bracket, Roof Rack, Center LH |

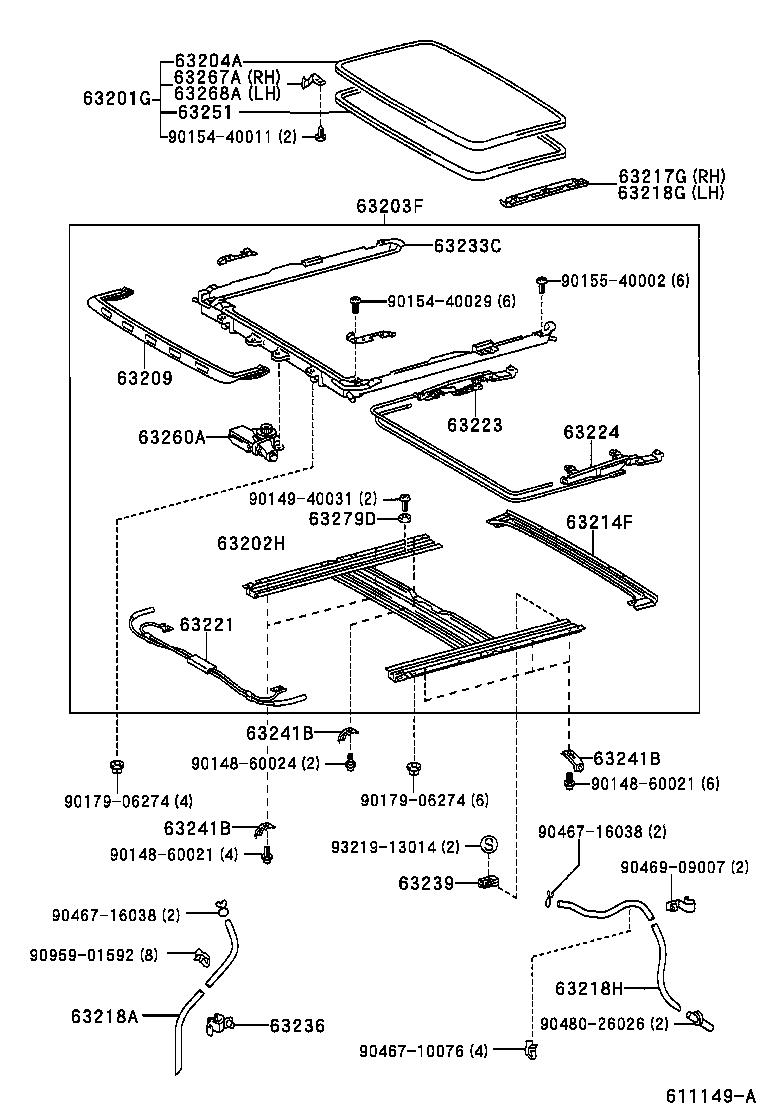

| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63204A | Panel Sub-assy, Sliding Roof, Inner |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 65758B | Seal, Tail Gate, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
