Toyota BB/Open Deck
2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan
Discontinued model
Data version 2006-07

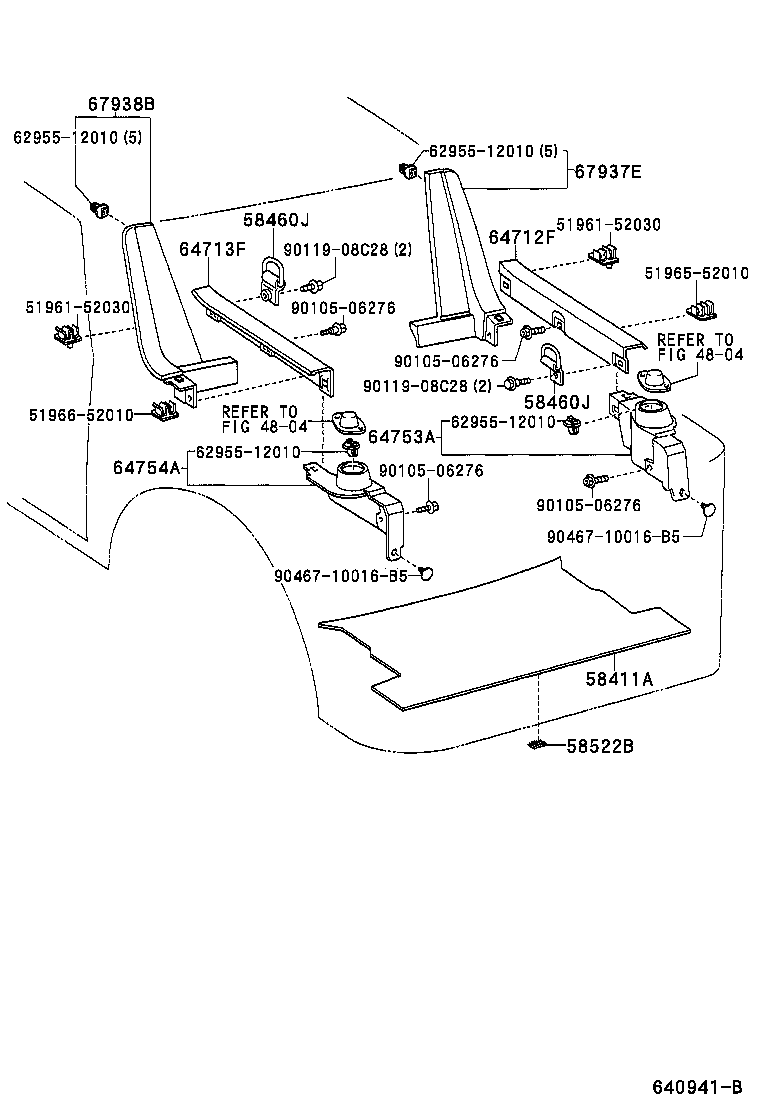

Deck Board & Deck Trim Cover
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58411A | Board, Deck, NO.1 |
| 58460J | Striker Assy, Luggage Hold Belt |
| 58522B | Hook, Deck Board |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 62627D | Cover, Side Trim, RH |
| 62628A | Cover, Side Trim, LH |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740B | Board, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64753A | Garnish, Deck Side, Rear, RH |
| 64754A | Garnish, Deck Side, Rear, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64772 | Pad, Spare Wheel Cover |
| 67937E | Garnish, Back Door Side, RH |
| 67938B | Garnish, Back Door Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
