Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

27 part groups · 3 illustrations

Illustrations

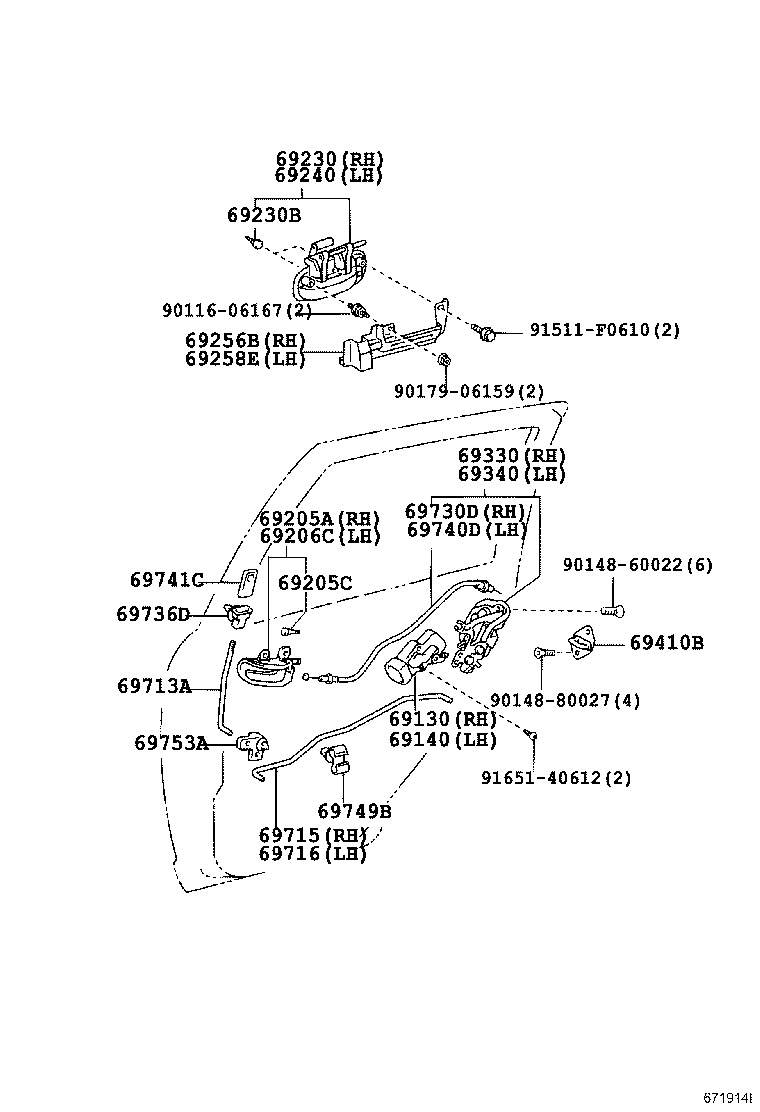

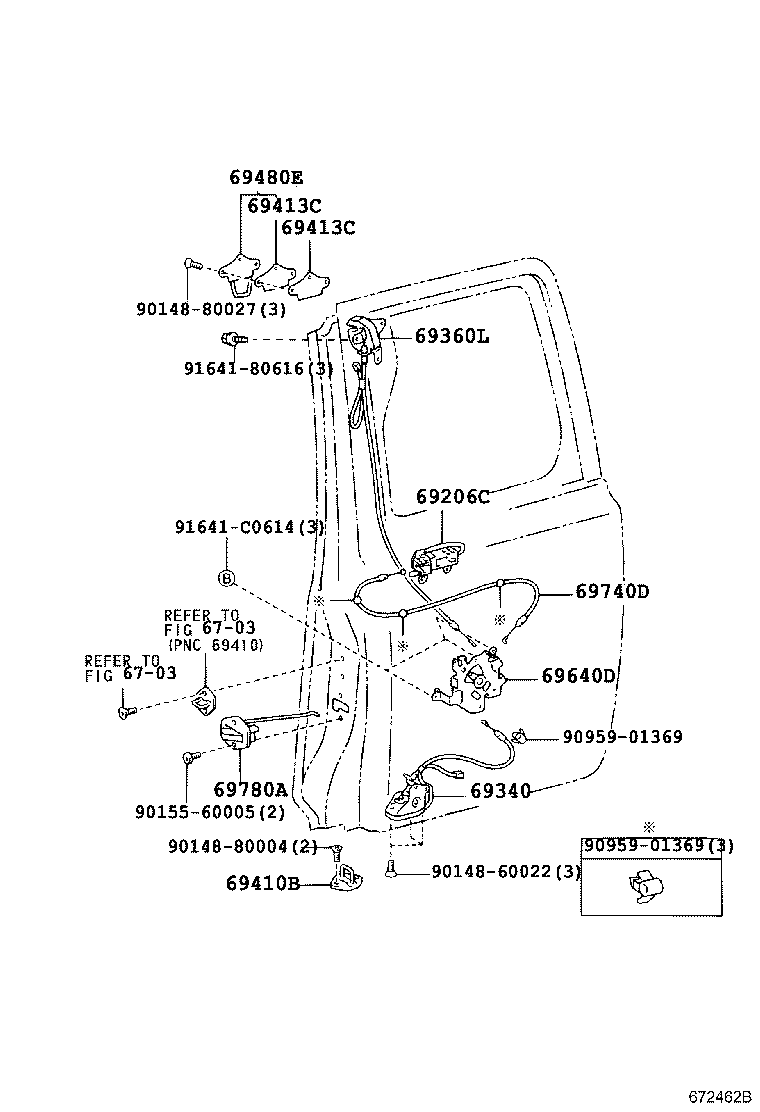

Figure 672881B 672881B 2000-01 → 2001-08 Figure 671914I 671914I 2001-08 → — Figure 672462B 672462B 2001-06 → 2003-03

Part groups

PNCDescription
69130 Actuator Assy, Rear Door Lock, RH
69140 Actuator Assy, Rear Door Lock, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69205C Cushion(FOR REAR DOOR INSIDE HANDLE)
69206C Handle Sub-assy, Rear Door Inside, LH
69230 Handle Assy, Rear Door Outside, RH
69230B Cushion(FOR REAR DOOR OUTSIDE HANDLE)
69240 Handle Assy, Rear Door Outside, LH
69256B Protector, Door Outside Handle, LH
69258E Protector, Door Outside Handle, NO.2 LH
69330 Lock Assy, Rear Door, RH
69340 Lock Assy, Rear Door, LH
69360L Lock Assy, Access Panel, Upper LH
69410B Plate Assy, Rear Door Lock Striker
69413C Shim, Door Lock Striker, LH
69480E Striker Assy, Access Panel Upper Lock, LH
69640D Control Assy, Access Panel Lock Remote, LH
69713A Link, Rear Door Lock Remote Control, RH
69715 Link, Rear Door Locking Control, NO.2 RH
69716 Link, Rear Door Locking Control, NO.2 LH
69730D Cable Assy, Rear Door Lock Remote Control, RH
69736D Guide, Rear Door Locking Link
69740D Cable Assy, Rear Door Lock Remote Control LH
69741C Knob, Rear Door Lock Control
69749B Clamp, Rear Door Lock Link
69753A Bellcrank, Door Lock Control
69780A Link Assy, Rear Door Inside Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
