Toyota BB/Open Deck
2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan
Discontinued model
Data version 2006-07

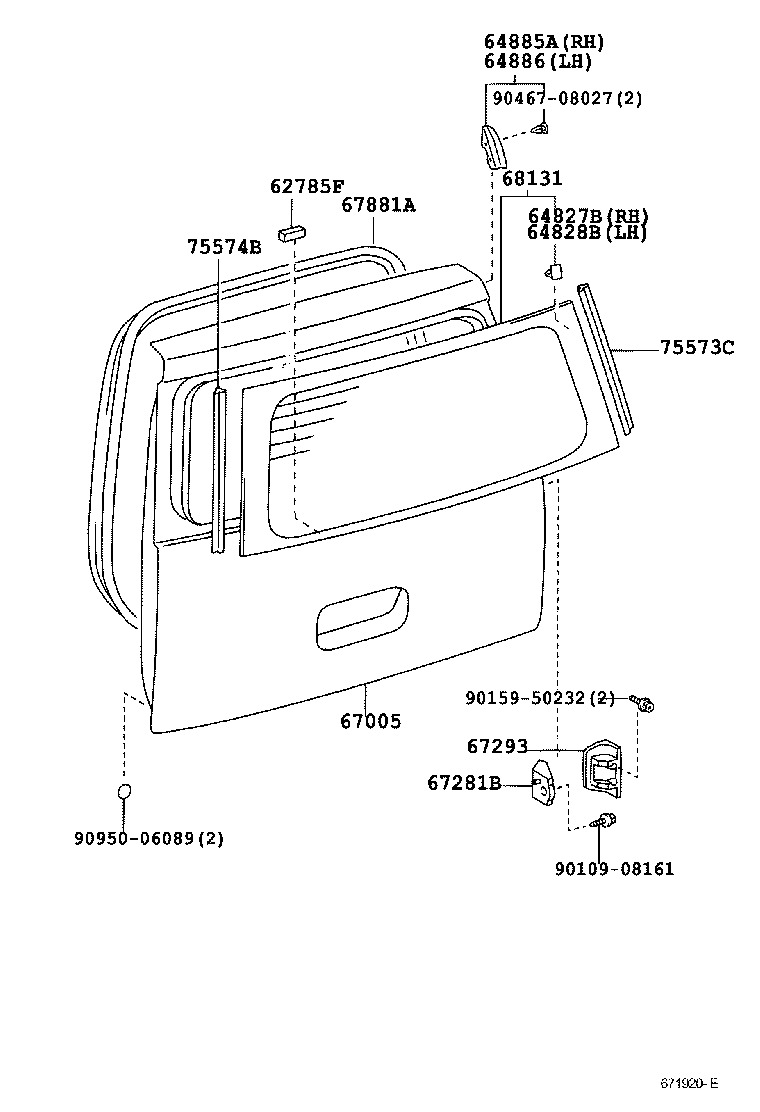

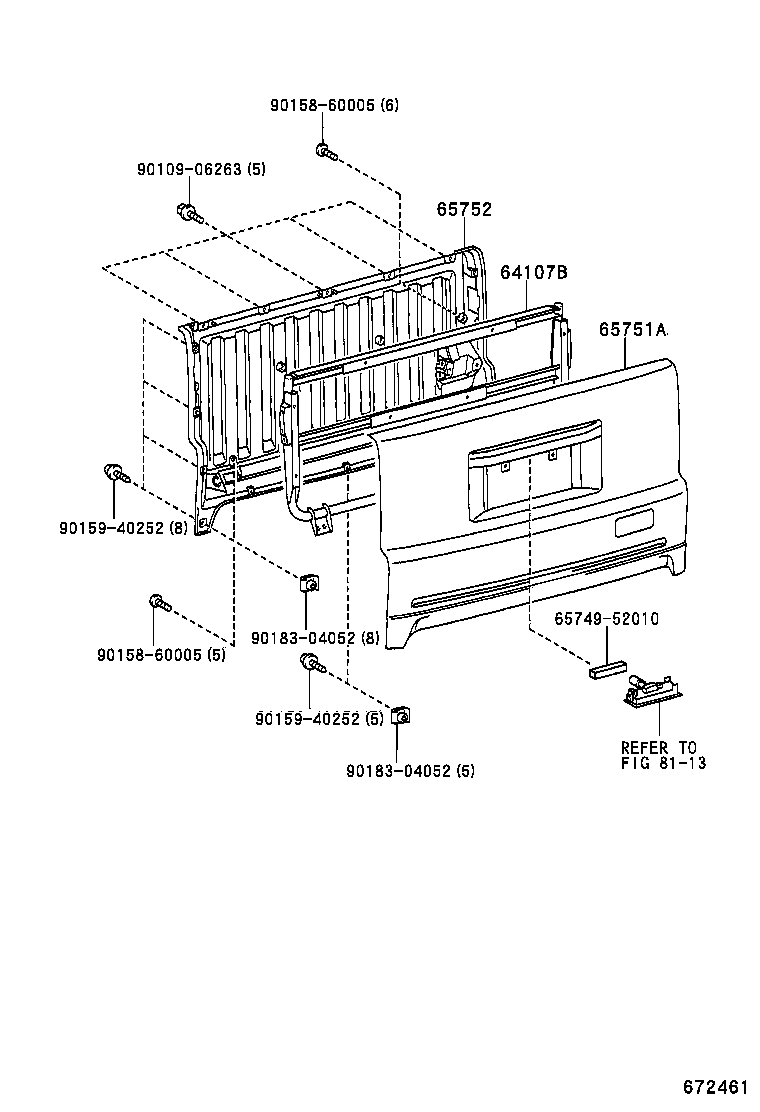

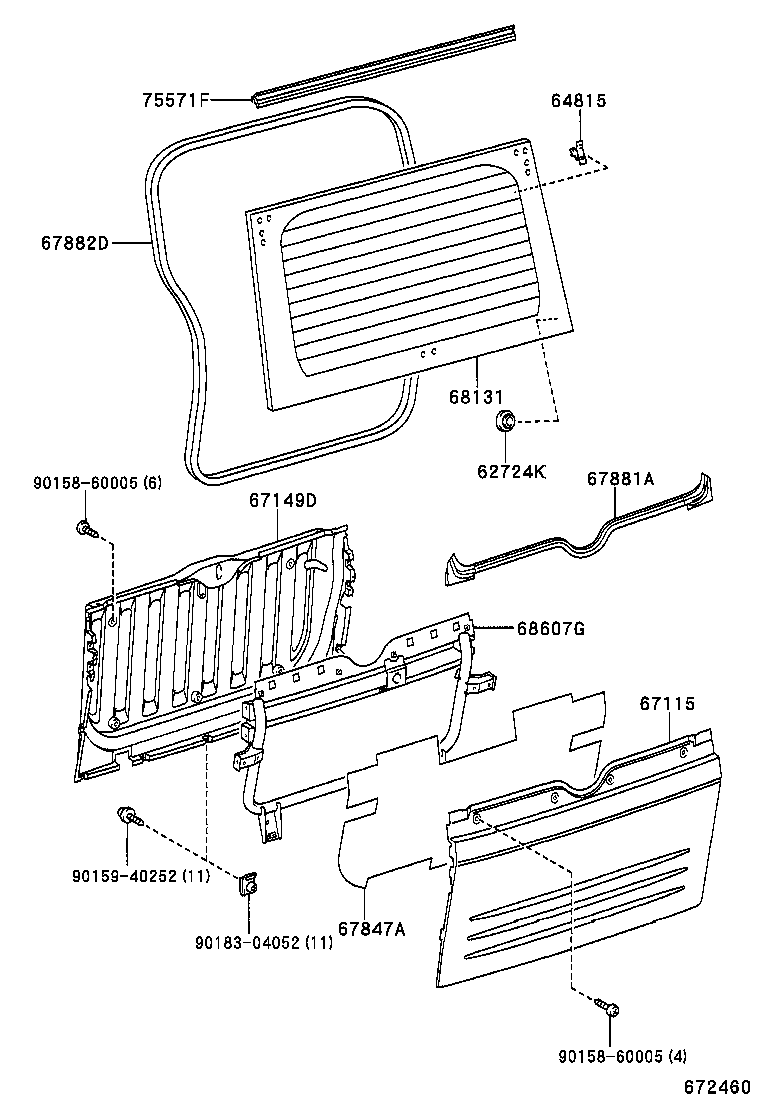

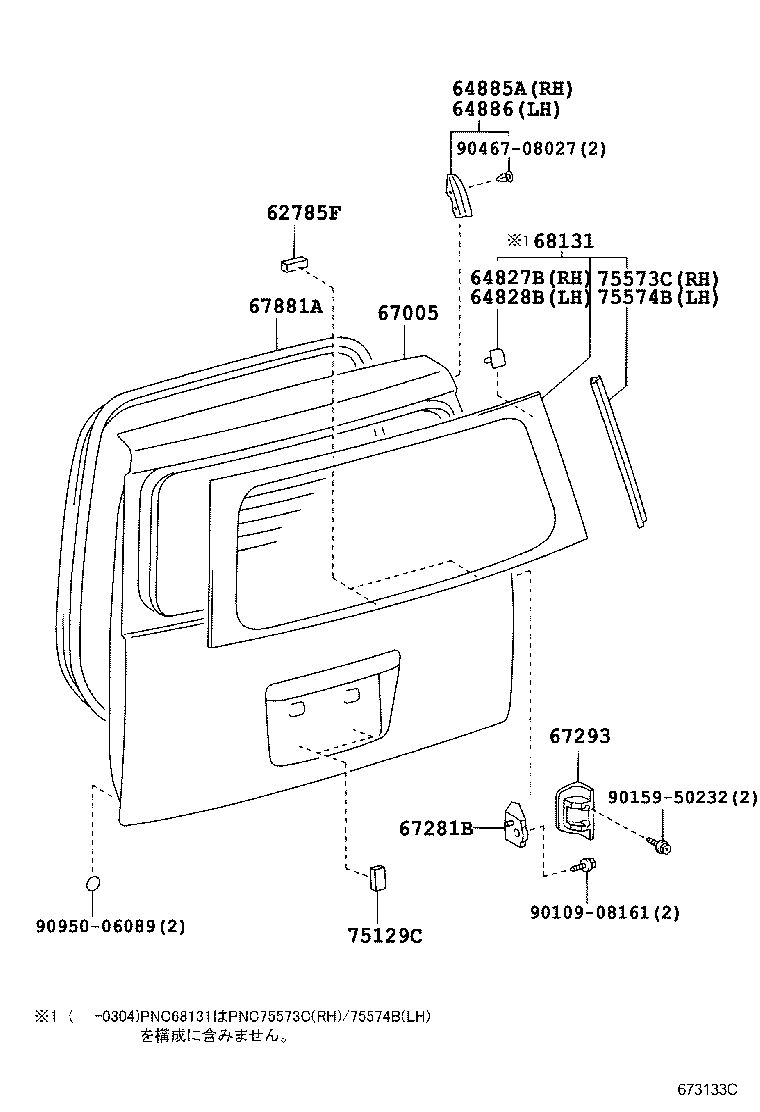

Back Door Panel & Glass
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62724K | Stop, Back Door Glass |
| 62785F | Spacer, Back Door Glass |
| 64107B | Frame Sub-assy, Back |
| 64815 | Terminal, Back Window Glass |
| 64827B | Clip, Back Window Glass, RH |
| 64828B | Clip, Back Window Glass, LH |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 65751A | Panel, Tail Gate, Outside |
| 65752 | Panel, Tail Gate, Inside |
| 67005 | Panel Sub-assy, Back Door |
| 67115 | Panel, Back Door, Outer |
| 67149D | Panel, Back Door, Inside |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67882D | Weatherstrip, Back Door, NO.2 |
| 68131 | Glass, Back Door |
| 68607G | Frame Sub-assy, Back Door Window |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75571F | Mouldimg, Back Door Window |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
