Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07

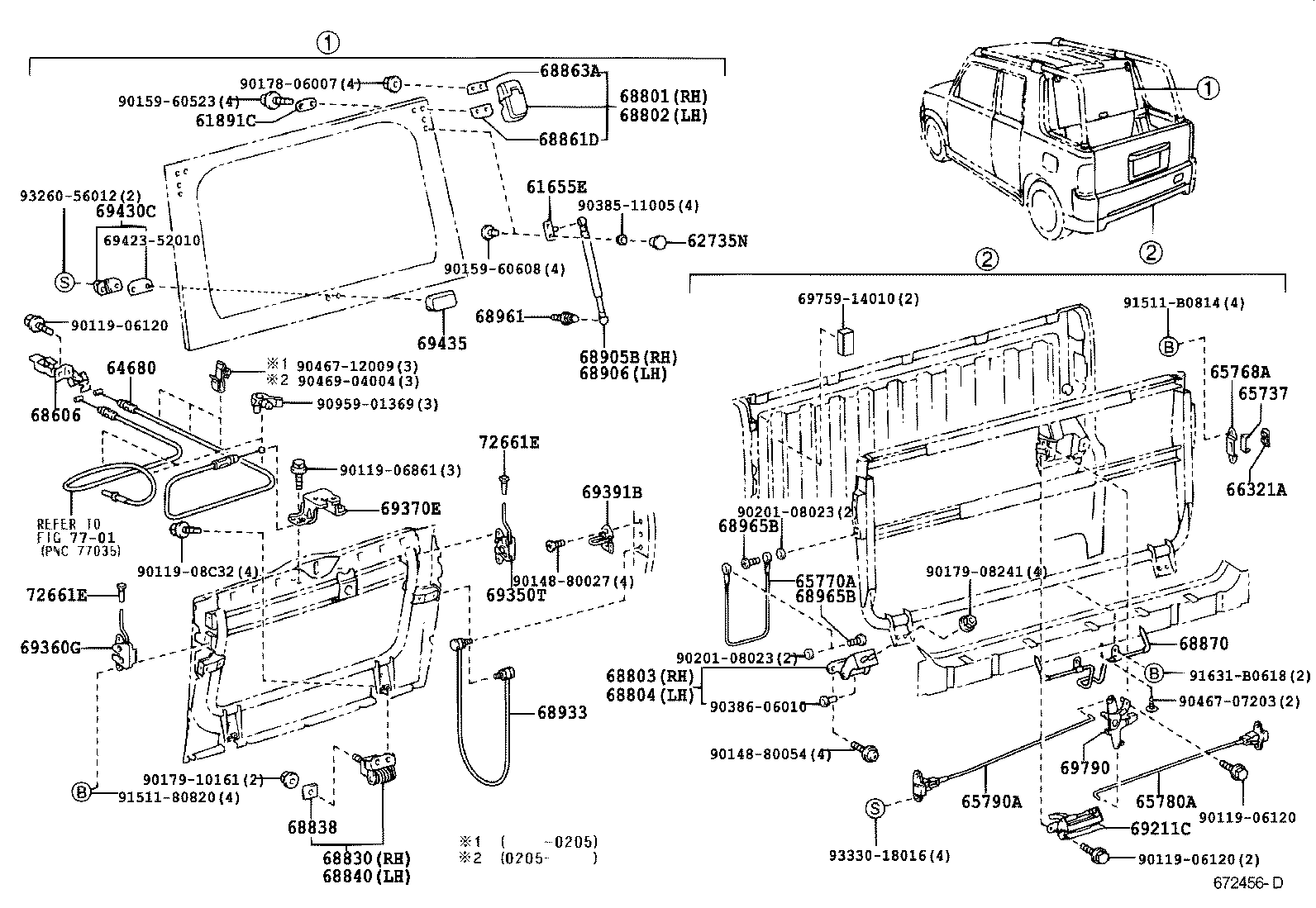

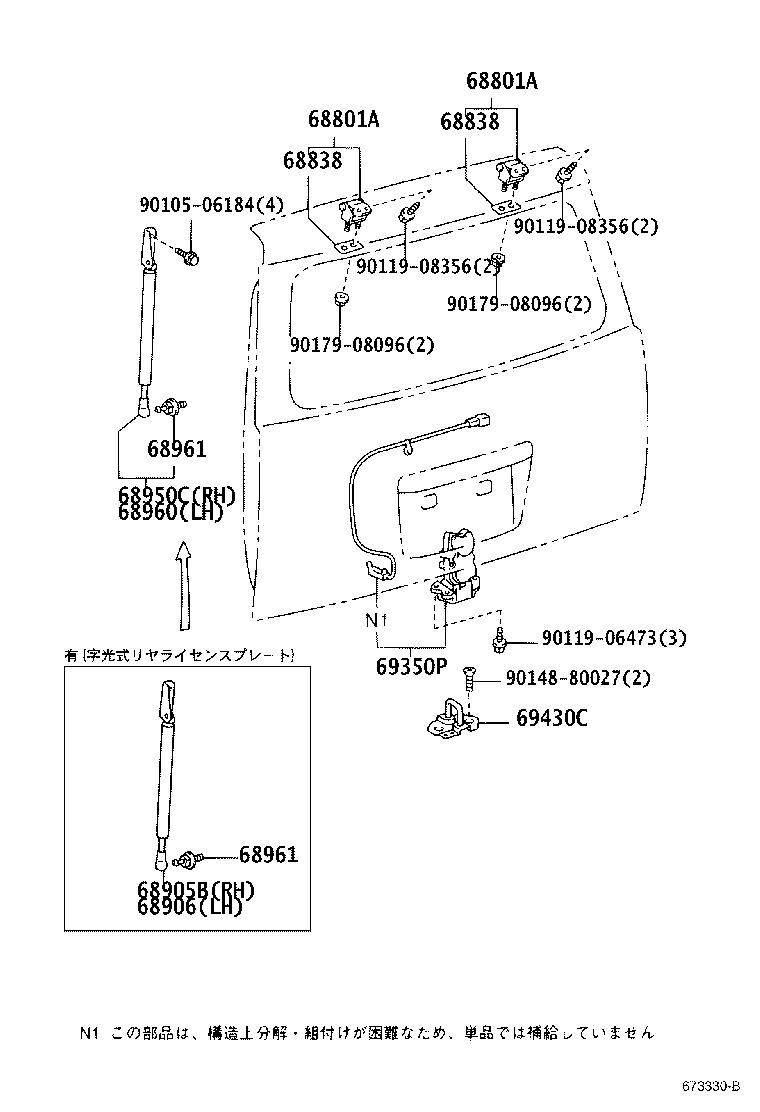

Back Door Lock & Handle

42 part groups · 3 illustrations

PNC	Description
61655E	Bracket, Back Door Stay, Upper RH
61891C	Retainer, Back Door Upper Hinge
62735N	Retainer, Back Door Hinge
64680	Cable Assy, Back Door Lock Control
65737	Stop, Tail Gate
65768A	Striker, Tail Gate Lock
65770A	Stay Assy, Tail Gate
65780A	Lock Assy, Tail Gate, RH
65790A	Lock Assy, Tail Gate, LH
66321A	Bumper, Gate Rubber
68606	Lever Sub-assy, Back Door Lock Open
68801	Hinge Sub-assy, Back Door, Upper RH
68801A	Hinge Sub-assy, Back Door, Upper
68802	Hinge Sub-assy, Back Door, Upper LH
68803	Hinge Assy, Back Door, Lower RH
68804	Hinge Assy, Back Door, Lower LH
68830	Hinge Assy, Back Door, RH
68838	Pad, Back Door Hinge, NO.1
68840	Hinge Assy, Back Door, LH
68861D	Pad, Back Door Hinge Male
68863A	Pad, Back Door Hinge
68870	Bar Assy, Back Door Lower Torsion
68905B	Stay Sub-assy, Back Door, RH
68906	Stay Sub-assy, Back Door, LH
68933	Stay, Back Door, NO.2
68950C	Stay Assy, Back Door, RH
68960	Stay Assy, Back Door, LH
68961	Bolt, Back Door Stay
68965B	Shaft, Tail Gate Stay
69090	Handle Assy, Back Door, Outside
69211C	Handle, Back Door Outside
69219	Seal, Back Door Outside Handle
69350	Lock Assy, Back Door
69350P	Lock Assy, Back Door, W/Courtesy Lamp Switch
69350T	Lock Assy, Back Door, RH
69360G	Lock Assy, Back Door, LH
69370E	Lock Assy, Back Window
69391B	Striker, Back Door Lower Lock
69430C	Striker Assy, Back Door Lock
69435	Retainer, Back Door Lock Striker, RH
69790	Control Assy, Back Door Lock
72661E	Button, Back Door Lock Release

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
