Toyota BB/Open Deck
2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan
Discontinued model
Data version 2006-07

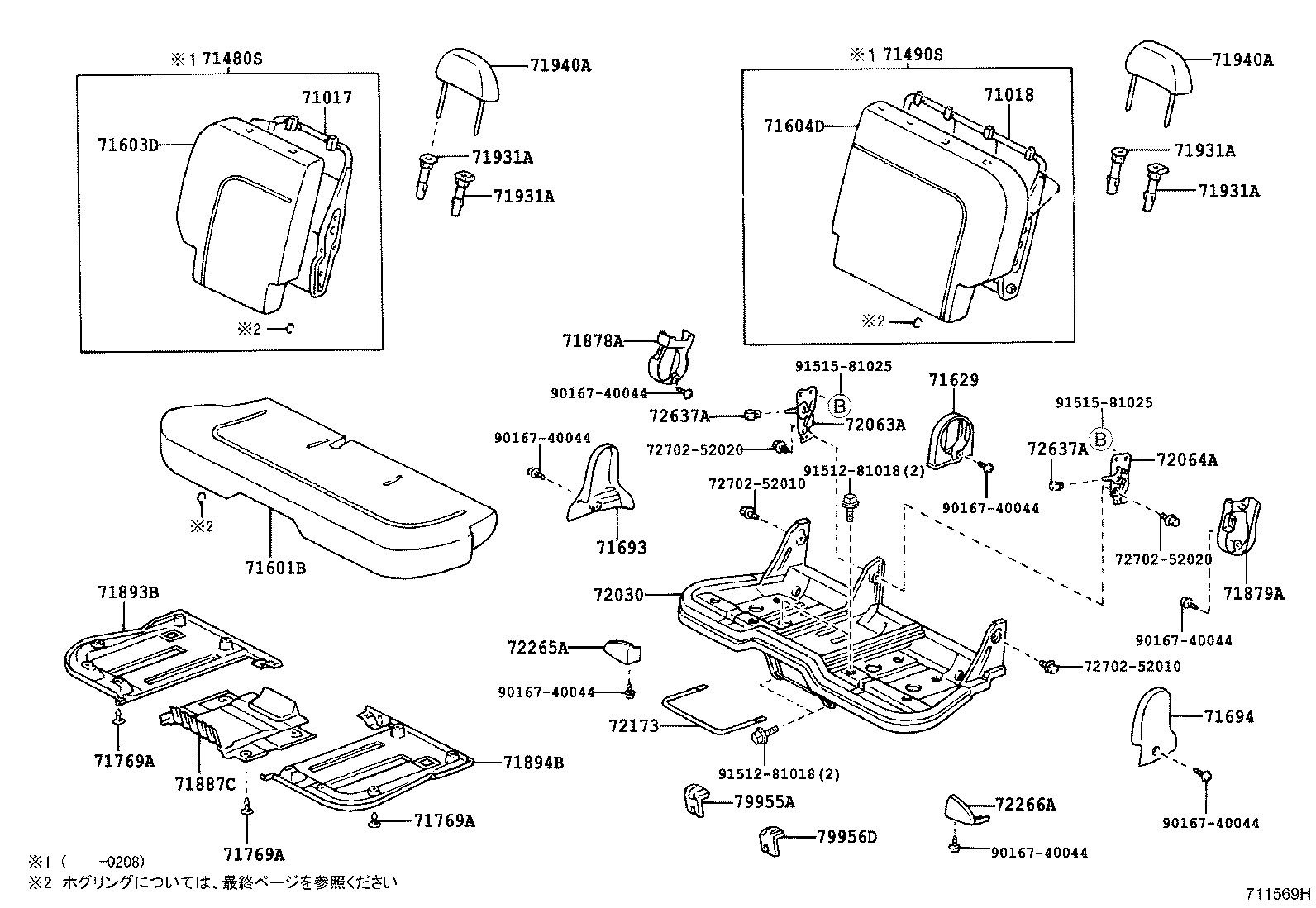

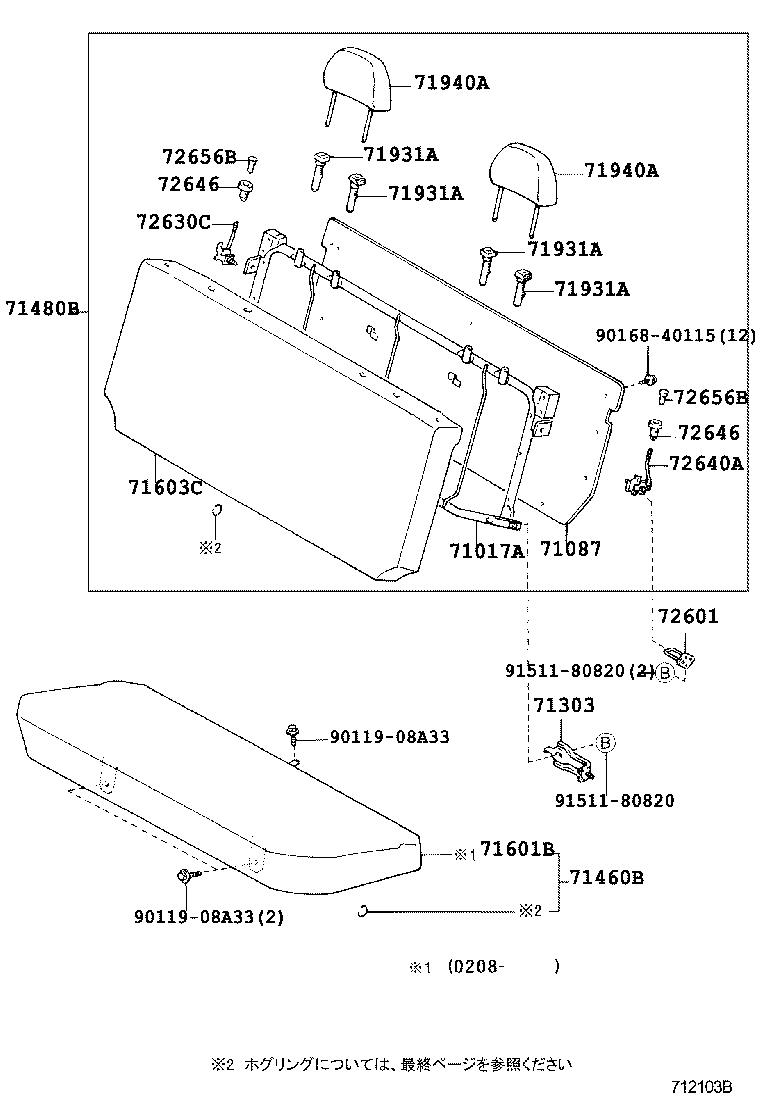

Rear Seat & Seat Track
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075E | Clip(FOR REAR SEAT) |
| 71087 | Board Sub-assy, Rear Seatback |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71327C | Bracket, Rear Seat Cushion |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71601B | Pad Sub-assy, Rear Seat Cushion W/Cover |
| 71603C | Pad Sub-assy, Rear Seatback W/Cover |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71629 | Cover, Rear Seat Cushion Hinge |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71769A | Clip, Rear Seatback Board |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71887C | Carpet, Rear Seat Cushion |
| 71893B | Carpet, Rear Seat Cushion, Under RH |
| 71894B | Carpet, Rear Seat Cushion, Under LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72030 | Adjuster Assy, Rear NO.1 Seat |
| 72063A | Arm Sub-assy, Rear Seatback Lock, RH |
| 72064A | Arm Sub-assy, Rear Seatback Lock, LH |
| 72173 | Handle, Rear Seat Track Adjusting |
| 72265A | Cover, Seat Track Upper Rail, RH |
| 72266A | Cover, Seat Track Upper Rail, LH |
| 72601 | Striker Sub-assy, Rear Seat Lock |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72637A | Handle, Rear Seat Lock |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72656B | Button, Rear Seatback Stop Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 79955A | Cover, Rear Seat Front Bracket, RH |
| 79956D | Cover, Rear Seat Front Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
