Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

25 part groups · 3 illustrations

Illustrations

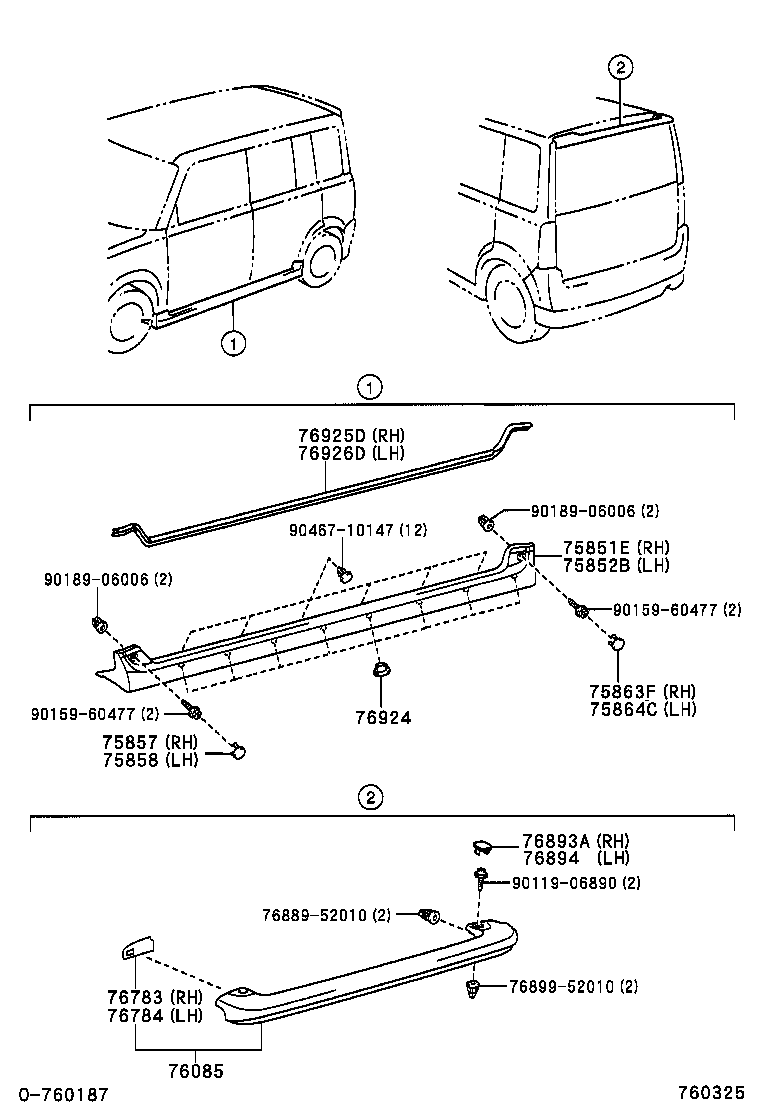

Figure 760187C 760187C 2000-01 → 2003-04 Figure 760325 760325 2003-04 → — Figure 760275A 760275A 2002-01 → —

Part groups

PNCDescription
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
75853D Moulding, Rocker Panel, Center RH
75854D Moulding, Rocker Panel, Center LH
75855B Moulding, Rocker Panel, RR RH
75856B Moulding, Rocker Panel, RR LH
75857 Cover, Rocker Panel Moulding, RH
75858 Cover, Rocker Panel Moulding, LH
75863F Cover, Rocker Panel Moulding End, Rear RH
75864C Cover, Rocker Panel Moulding End, Rear LH
75867B Clip, Rocker Panel Moulding
75868C Clip, Rear Spoiler, NO.2
76085 Spoiler Sub-assy, Rear
76783 Tape, Rear Spoiler, Lower RH
76784 Tape, Rear Spoiler, Lower LH
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76924 Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76925E Protector, Side Mudguard, Front RH
76926D Protector, Side Mudguard, LH
76926E Protector, Side Mudguard, Front LH
76927A Protector, Side Mudguard, Rear RH
76928A Protector, Side Mudguard, Rear LH
76931 Retainer, Side Mudguard, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
