Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

20 part groups · 3 illustrations

Illustrations

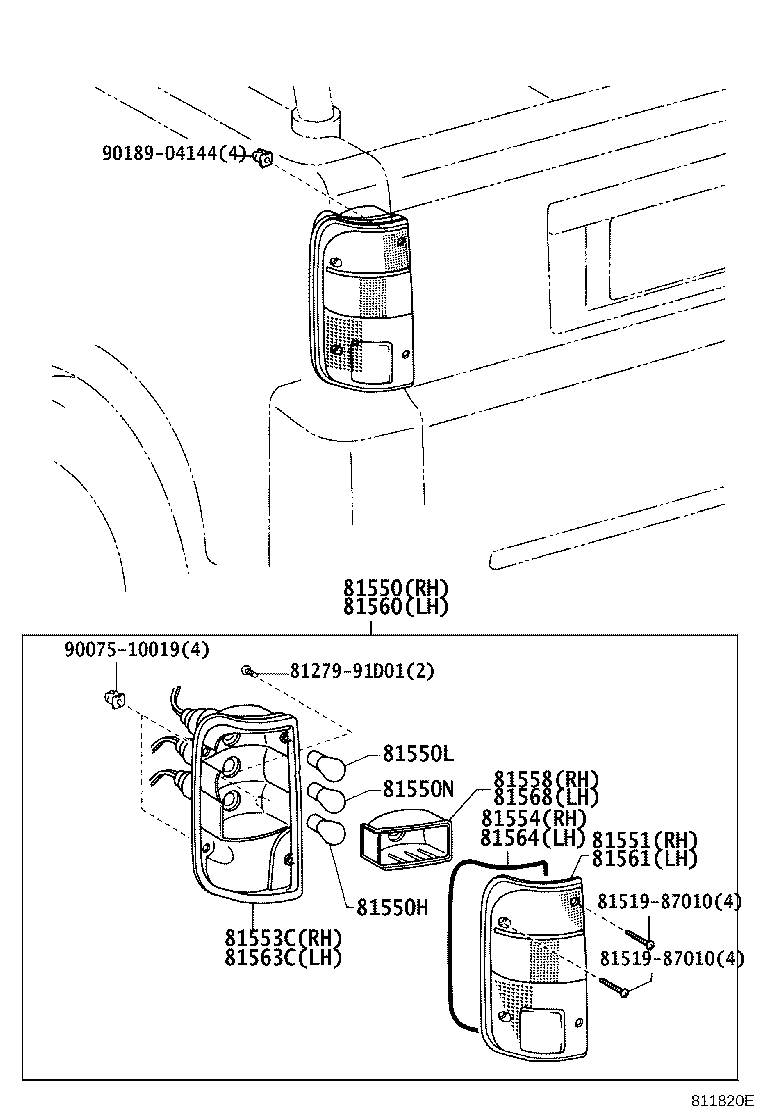

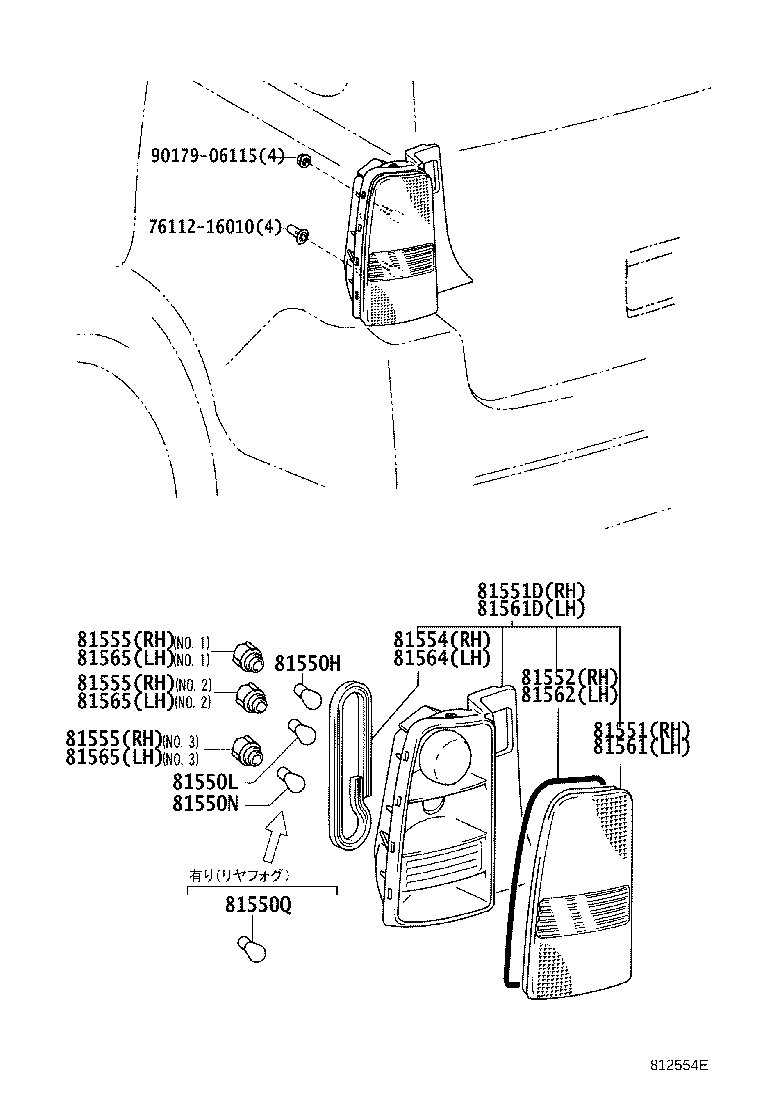

Figure 811380G 811380G 2000-01 → 2003-04 Figure 811820E 811820E 2001-06 → 2003-03 Figure 812554E 812554E 2003-04 → 2005-12

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551 Lens, Rear Combination Lamp, RH
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81553C Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81563C Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
