Toyota BB/Open Deck

2000-01 → 2005-12 · chassis NCP3# · catalogue 115110 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 3 illustrations

Illustrations

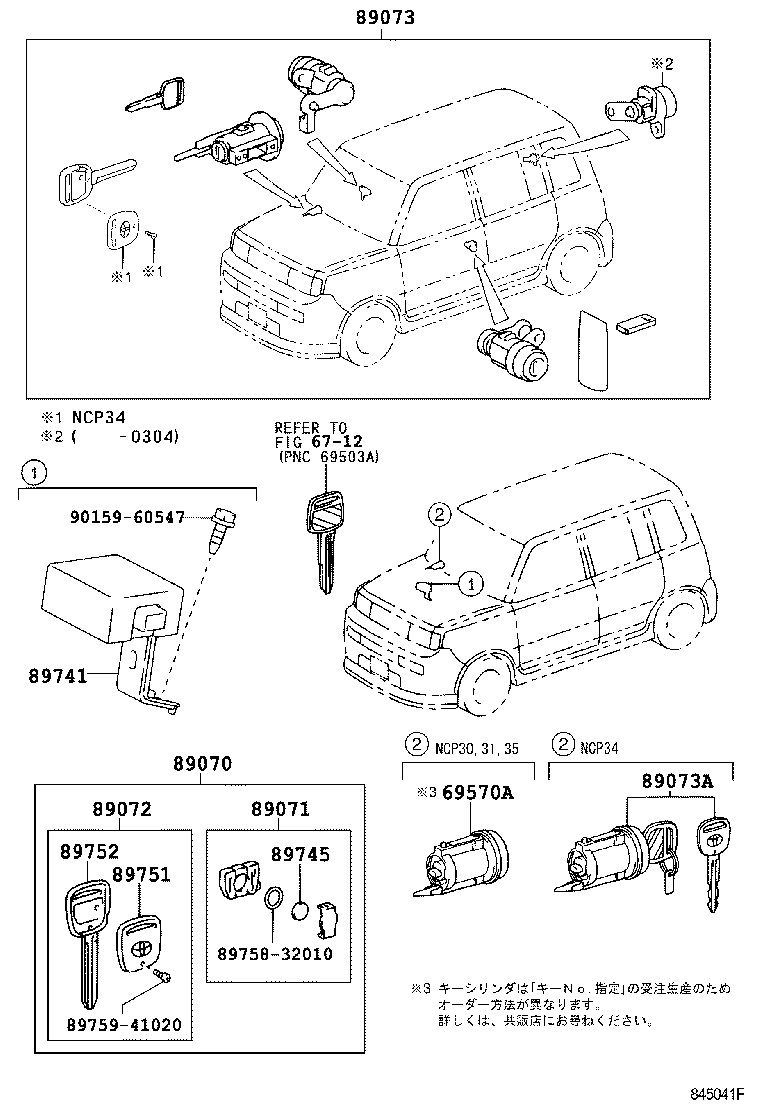

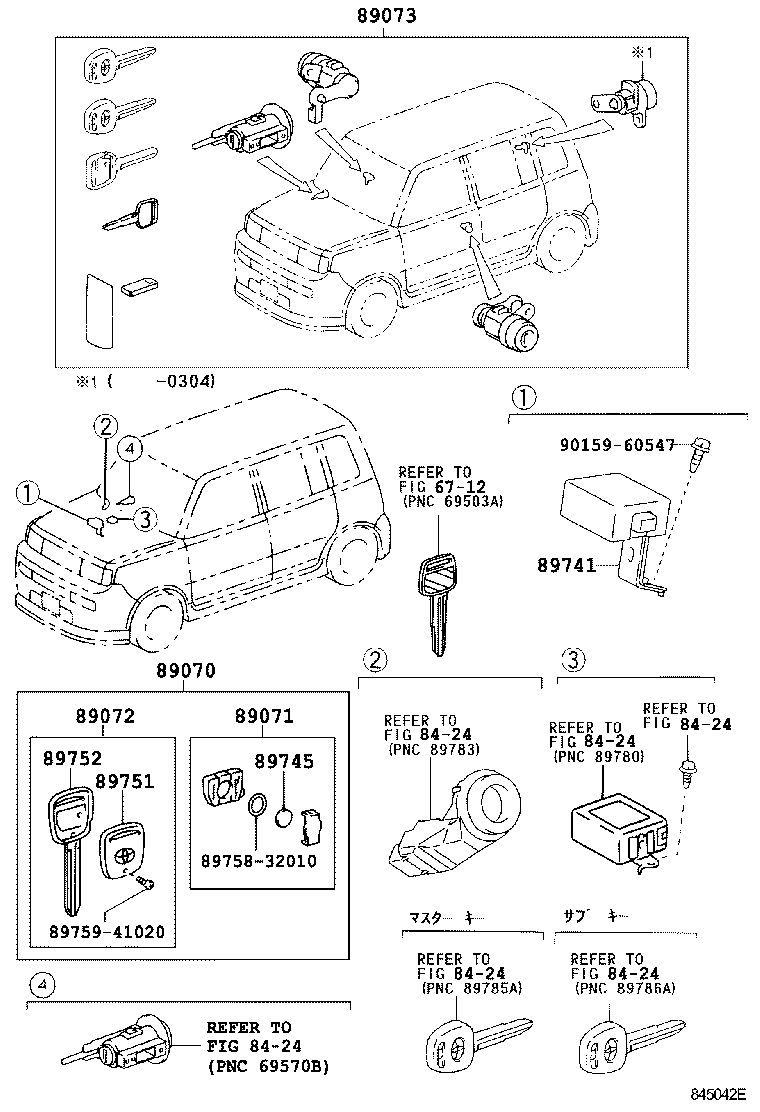

Figure 843260F 843260F 2000-01 → 2002-08 Figure 845041F 845041F 2002-08 → 2005-12 Figure 845042E 845042E 2002-08 → 2005-12

Part groups

PNCDescription
69570A Cylinder Assy, Ignition Switch Lock
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89072 Housing Set, Door Control Transmitter
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
