Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

20 part groups · 3 illustrations

Illustrations

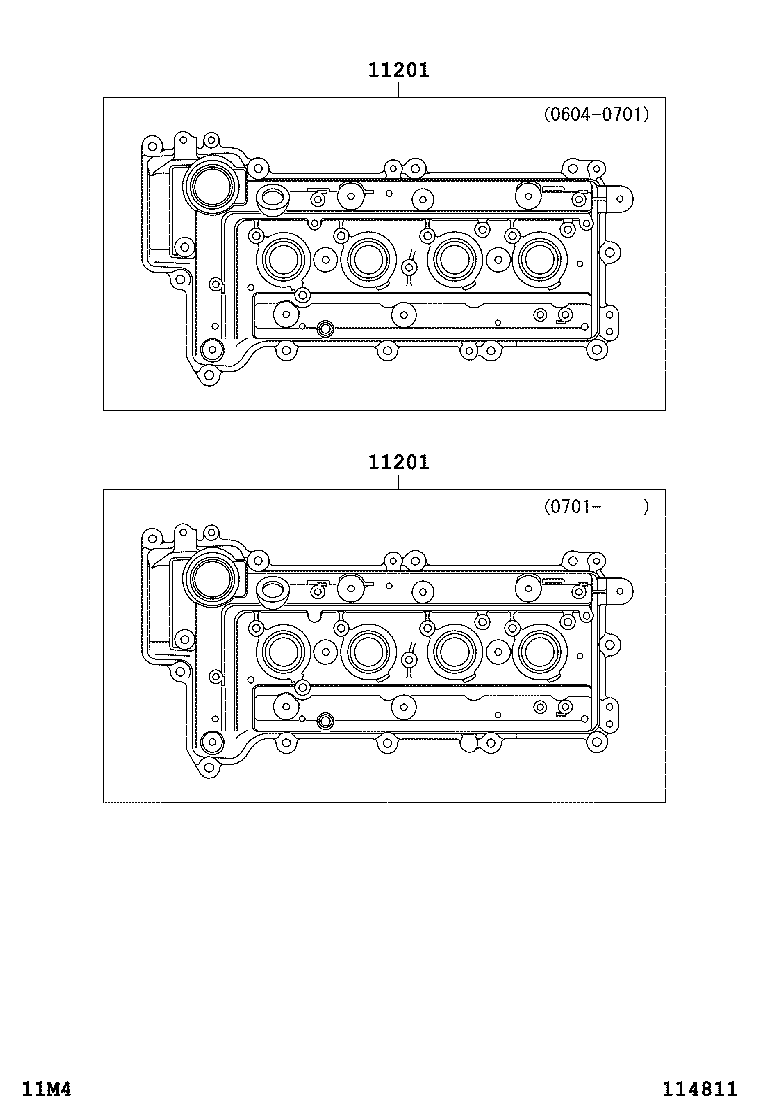

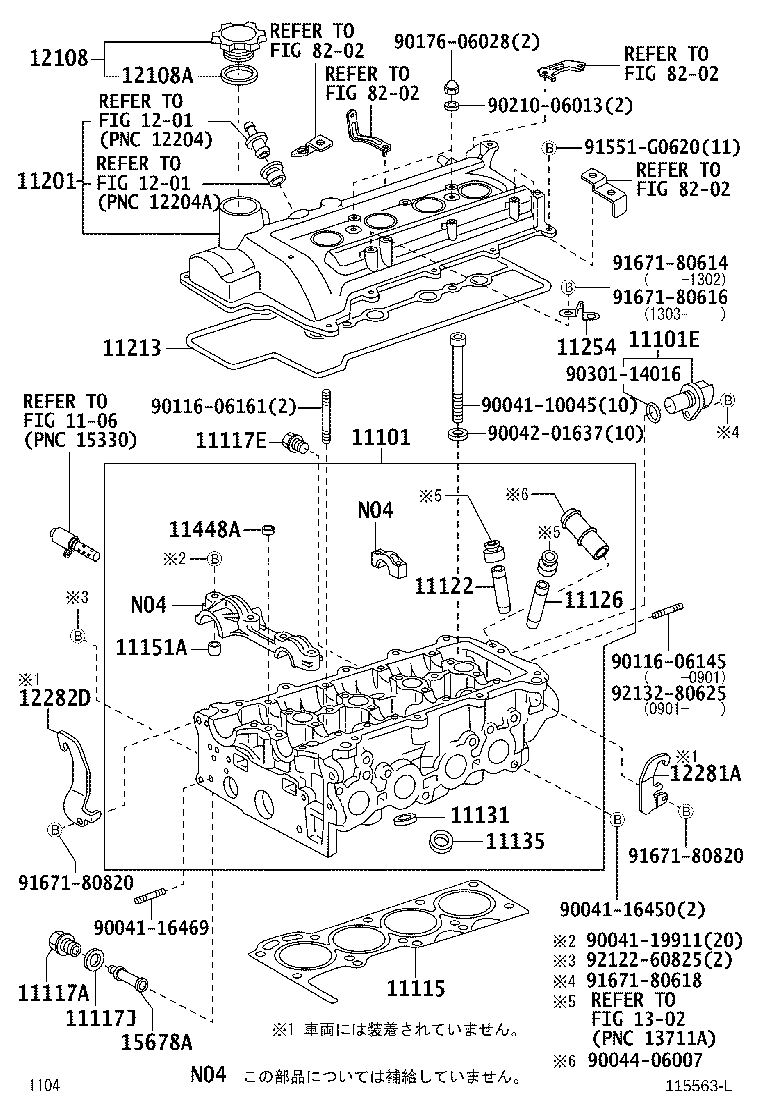

Figure 114132V 114132V 2006-01 → 2008-09 Figure 114811 114811 2006-01 → 2008-09 Figure 115563L 115563L 2008-09 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101E Sensor, Cam Position
11115 Gasket, Cylinder Head
11117A Plug, W/Head Taper Screw, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11201 Cover Sub-assy, Cylinder Head
11213 Gasket, Cylinder Head Cover
11254 Bracket, V-bank Cover, NO.1
11448A Orifice, Cylinder Head Oil
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
