Toyota BB
2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan
Supported model
Data version 2017-01

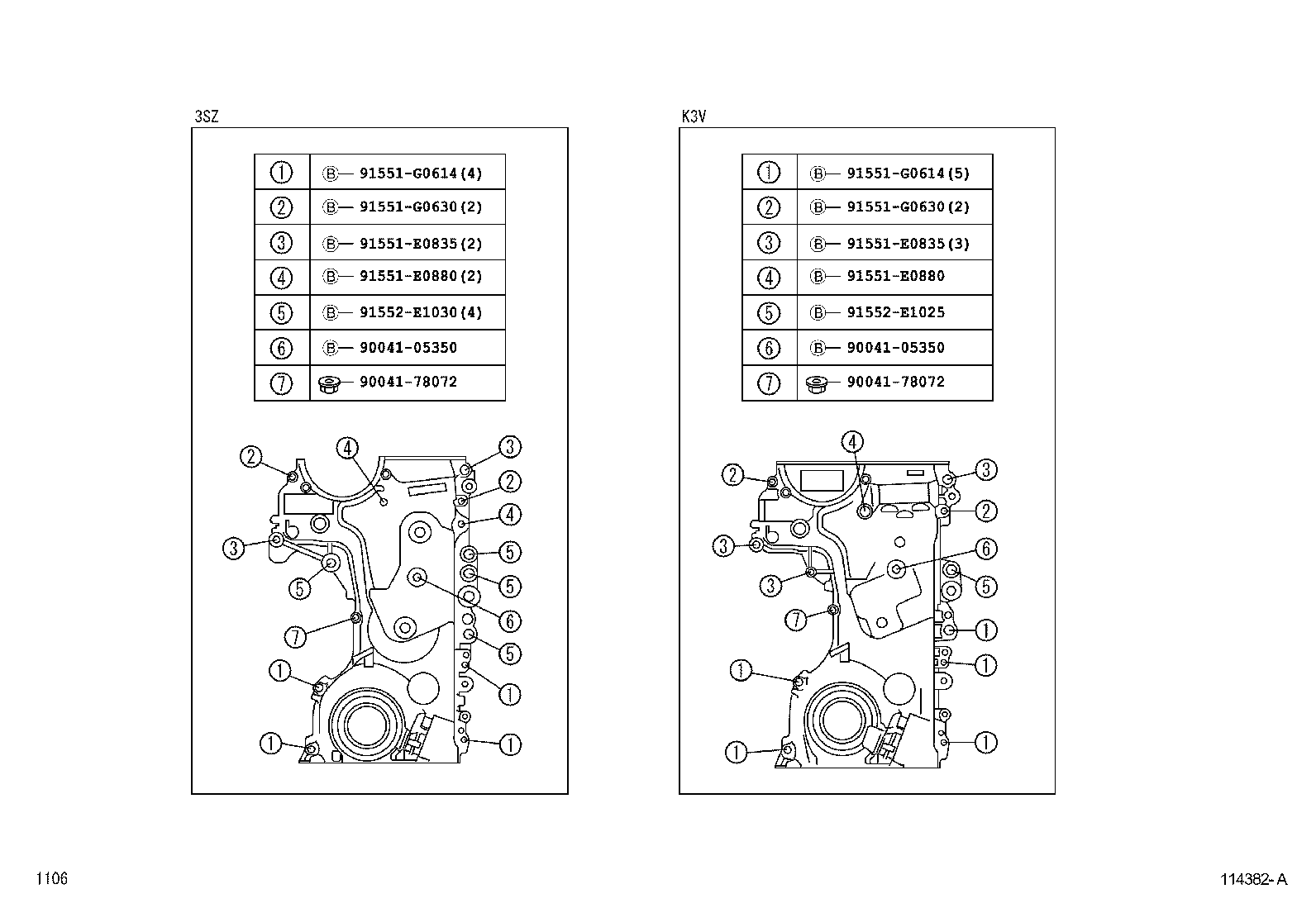

Timing Gear Cover & Rear End Plate
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11351C | Ring, O |
| 11355 | Plate, Rear End |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 15330 | Valve Assy, Cam Timing Oil Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
