Toyota BB
2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan
Supported model
Data version 2017-01

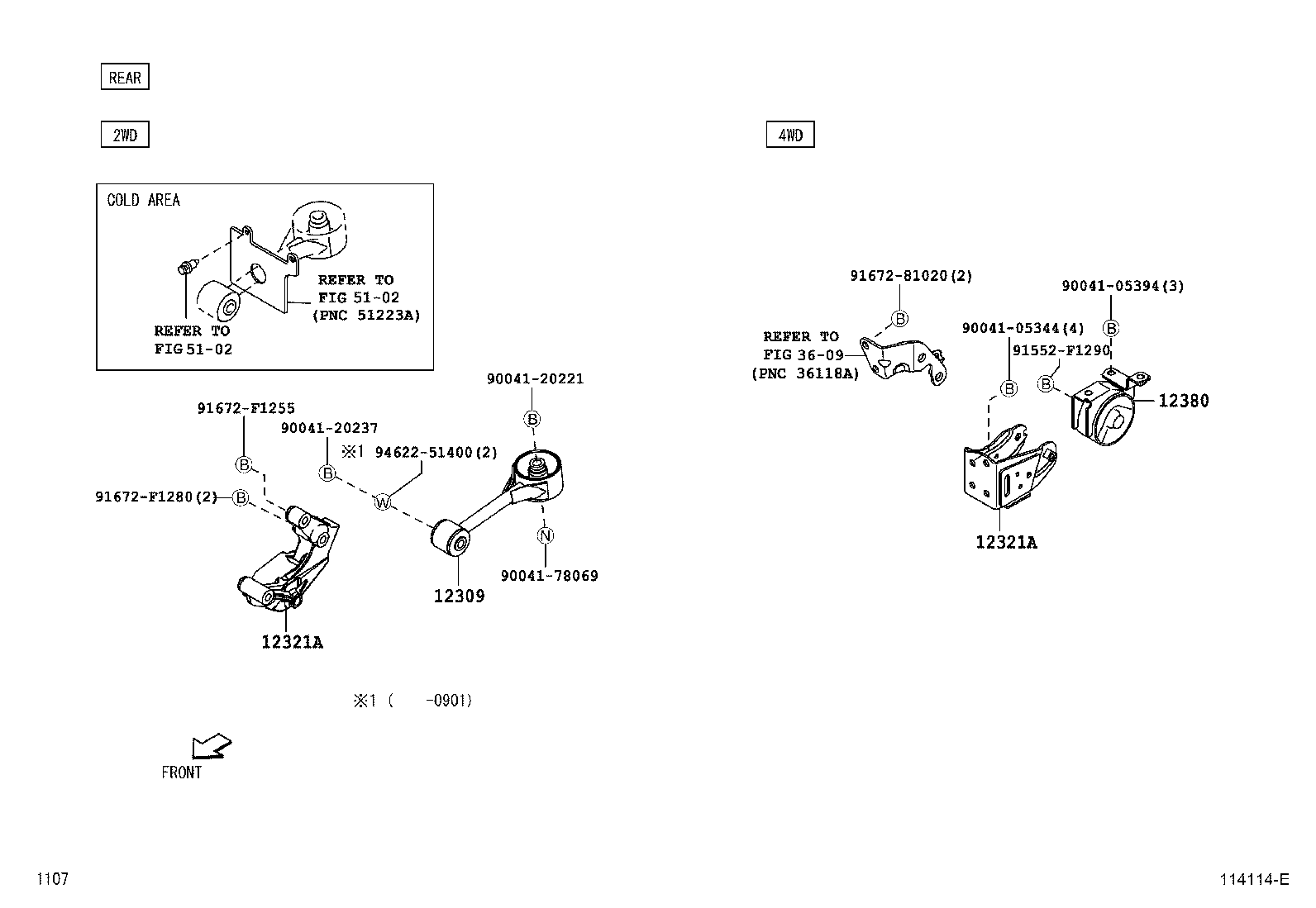

Mounting
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12309 | Rod Sub-assy, Engine Moving Control |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12380 | Insulator Assy, Engine Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
