Toyota BB
2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan
Supported model
Data version 2017-01

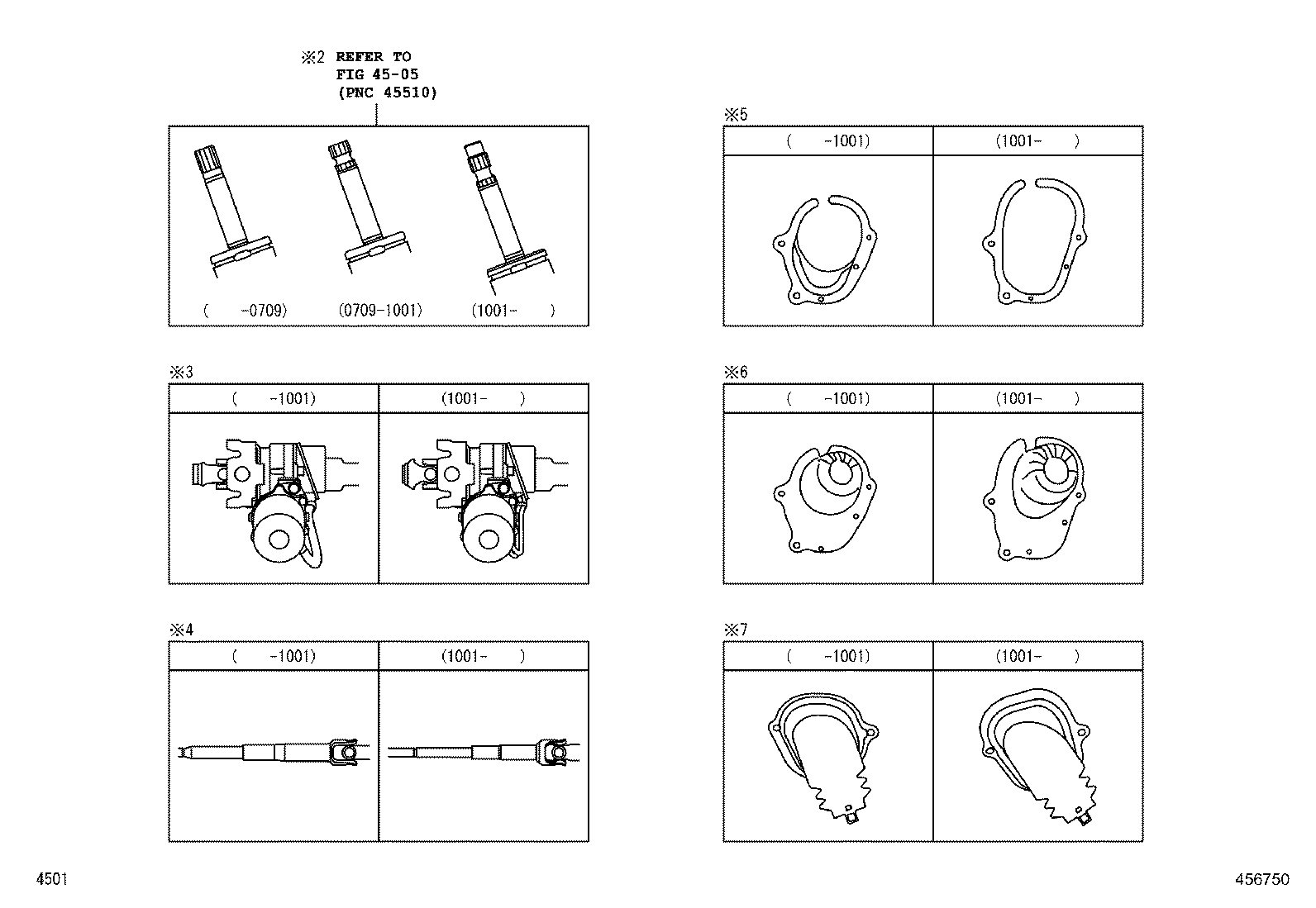

Steering Column & Shaft
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45205 | Tube Sub-assy, Steering Column |
| 45220 | Shaft Assy, Steering Intermediate |
| 45222F | Cover, Dust |
| 45230B | Joint Assy, Steering Shaft Universal |
| 45254 | Shield, Steering Column Hole |
| 45281 | Housing, Steering Column |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
