Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

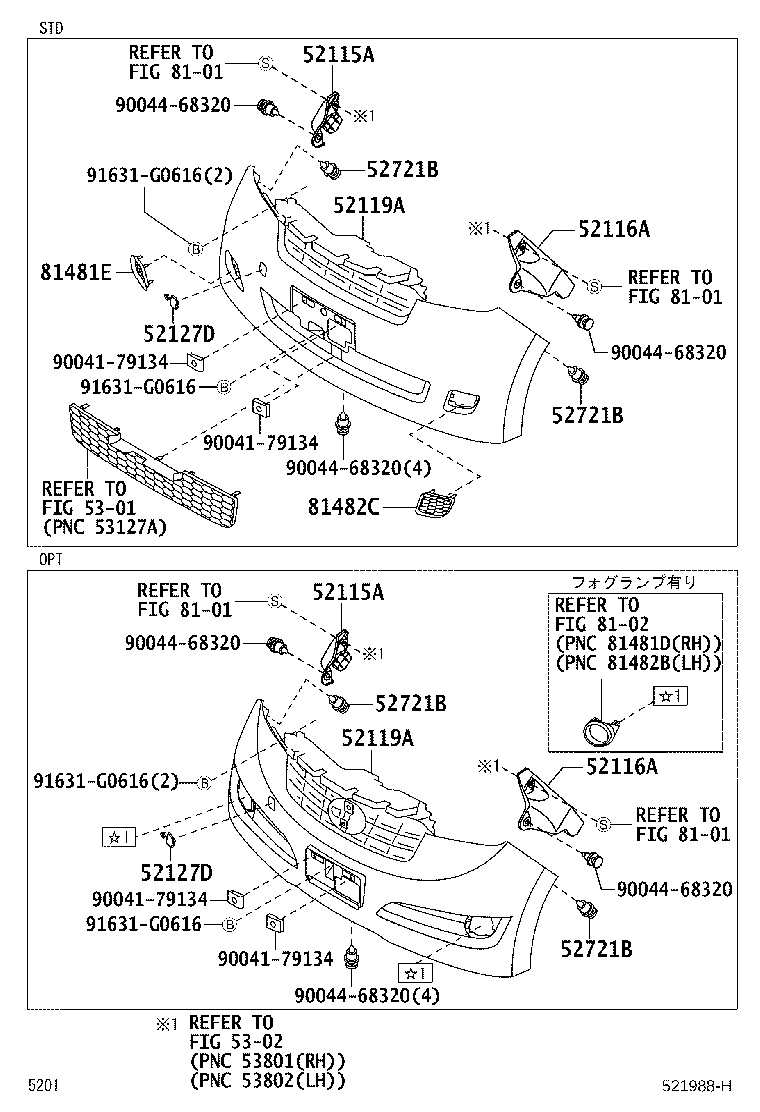

Figure 521987F 521987F 2006-01 → 2008-09 Figure 521988H 521988H 2008-09 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52721B Clip, Front Bumper Extension Moulding, NO.2
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
