Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

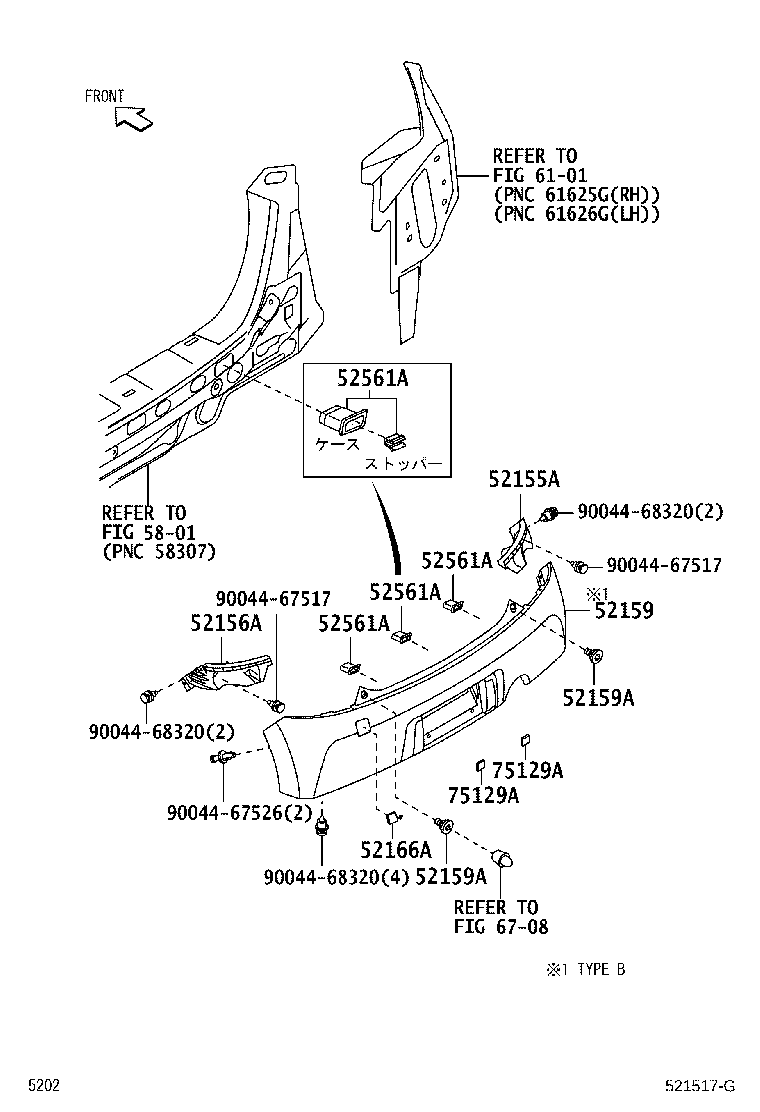

Figure 521516G 521516G 2006-01 → — Figure 521517G 521517G 2006-01 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52166A Cover, Rear Bumper, Upr LH
52561A Clip(FOR REAR BUMPER RETAINER)
75129A Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
