Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure 532142D

532142D 2006-01 → 2008-09

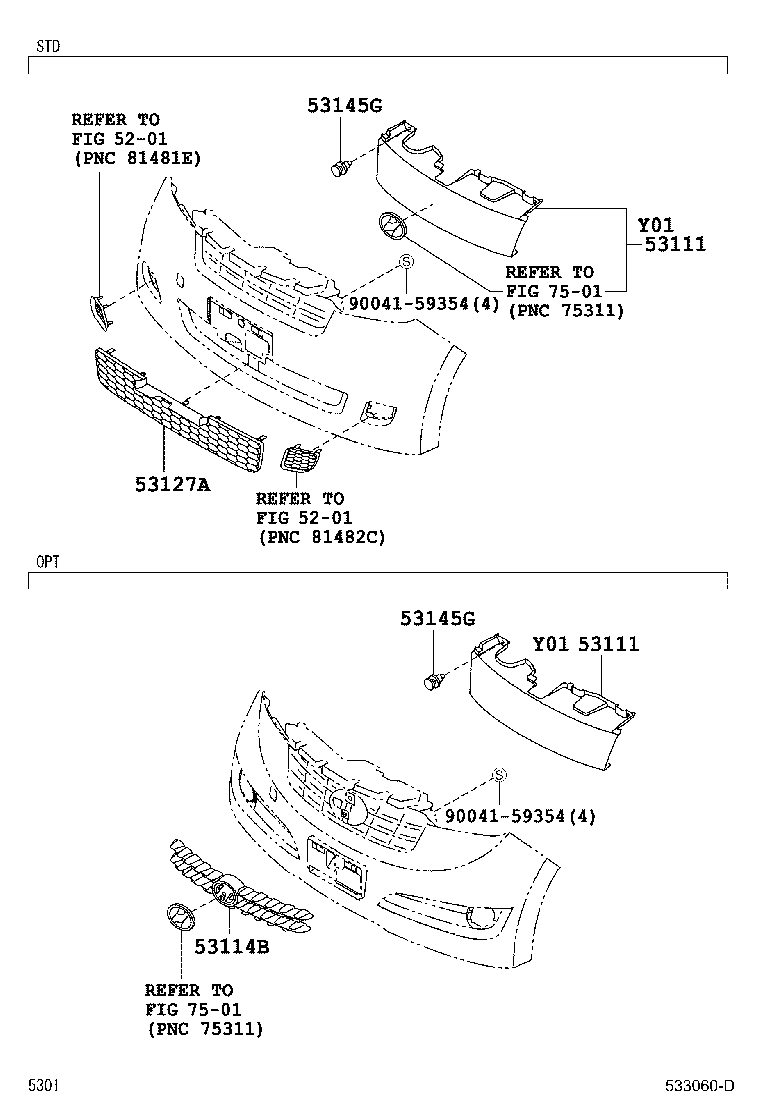

Figure 533060D

533060D 2008-09 → —

Part groups

PNC	Description
53111	Grille, Radiator
53114B	Grille, Radiator, Upper
53127A	Grille, Radiator, Lower RH
53145G	Clip, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
