Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

10 part groups · 2 illustrations

Illustrations

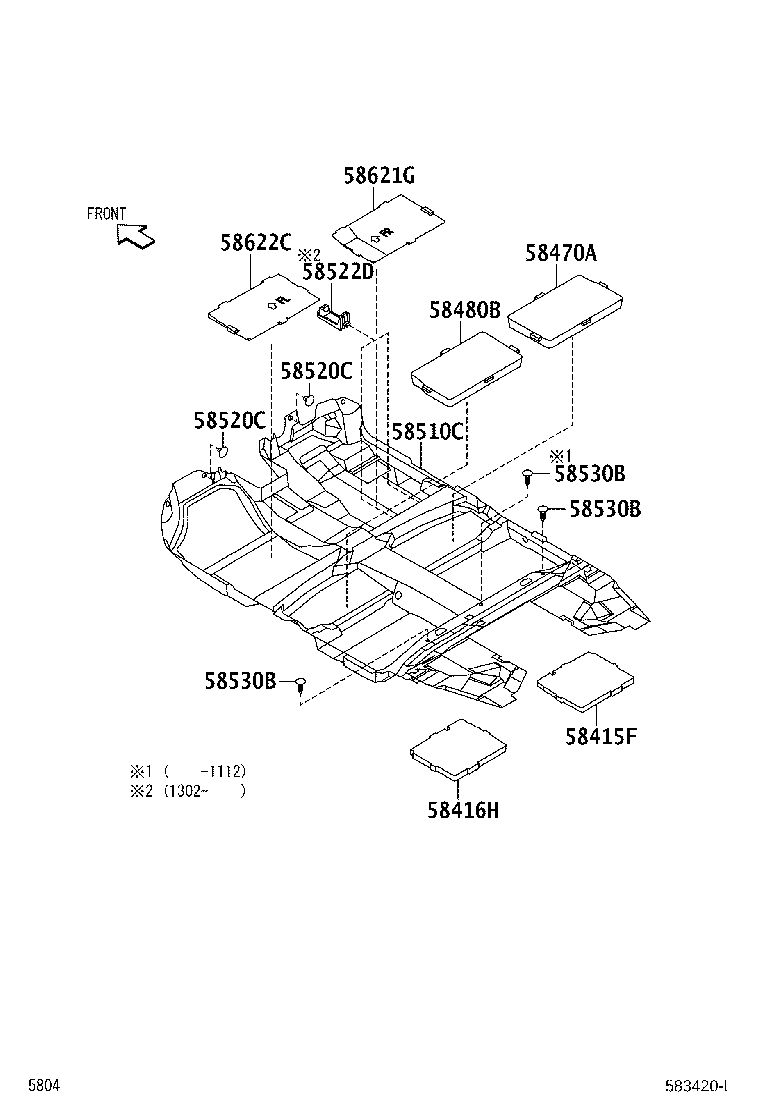

Figure 582555I 582555I 2006-01 → 2011-12 Figure 583420I 583420I 2008-09 → —

Part groups

PNCDescription
58415F Board, Rear Floor, NO.1
58416H Board, Rear Floor, NO.2
58470A Board Assy, Rear Floor, NO.1
58480B Board Assy, Rear Floor, NO.2
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58522D Hook, Floor Carpet, NO.2
58530B Clip(FOR FRONT FLOOR CARPET)
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
