Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

10 part groups · 2 illustrations

Illustrations

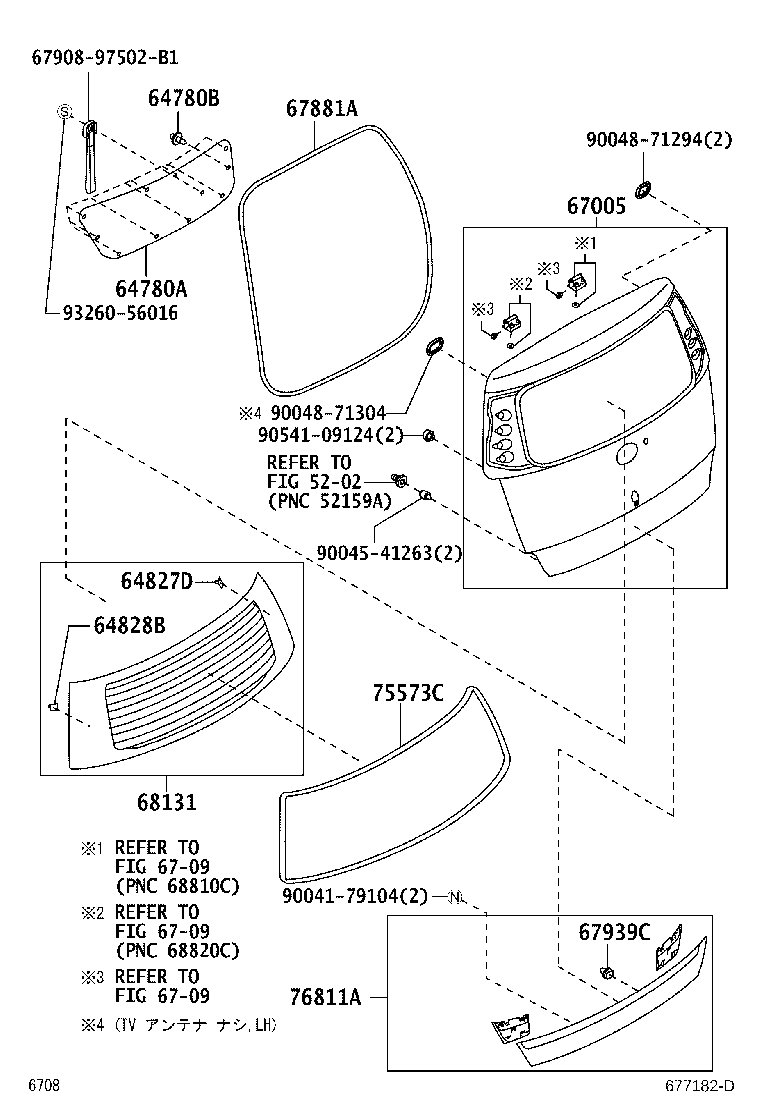

Figure 674309I 674309I 2006-01 → — Figure 677182D 677182D 2011-12 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64827D Clip, Back Window Glass
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67881A Weatherstrip, Back Door
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
75573C Moulding, Back Window, Outside
76811A Garnish, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
