Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

73 part groups · 9 illustrations

Illustrations

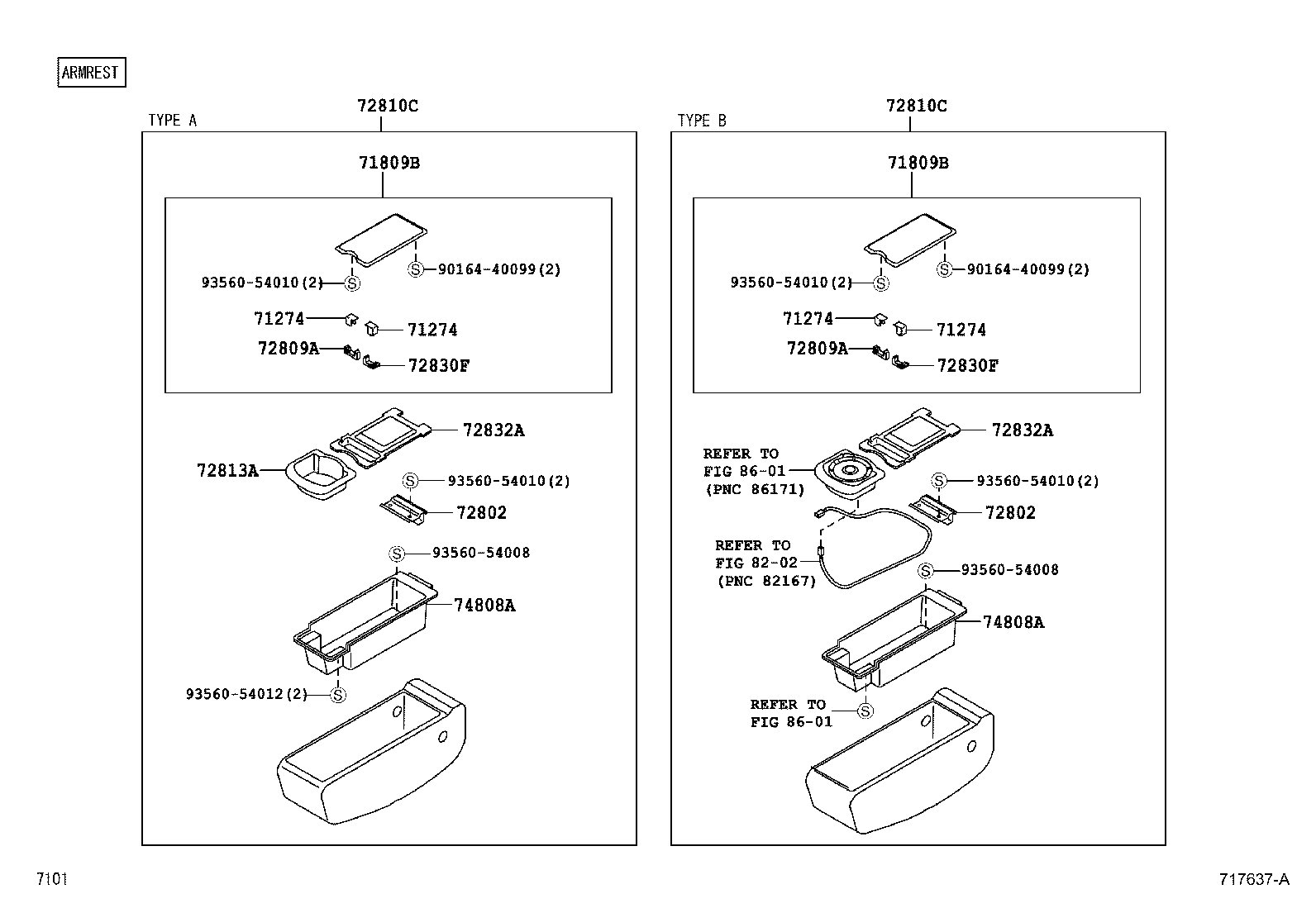

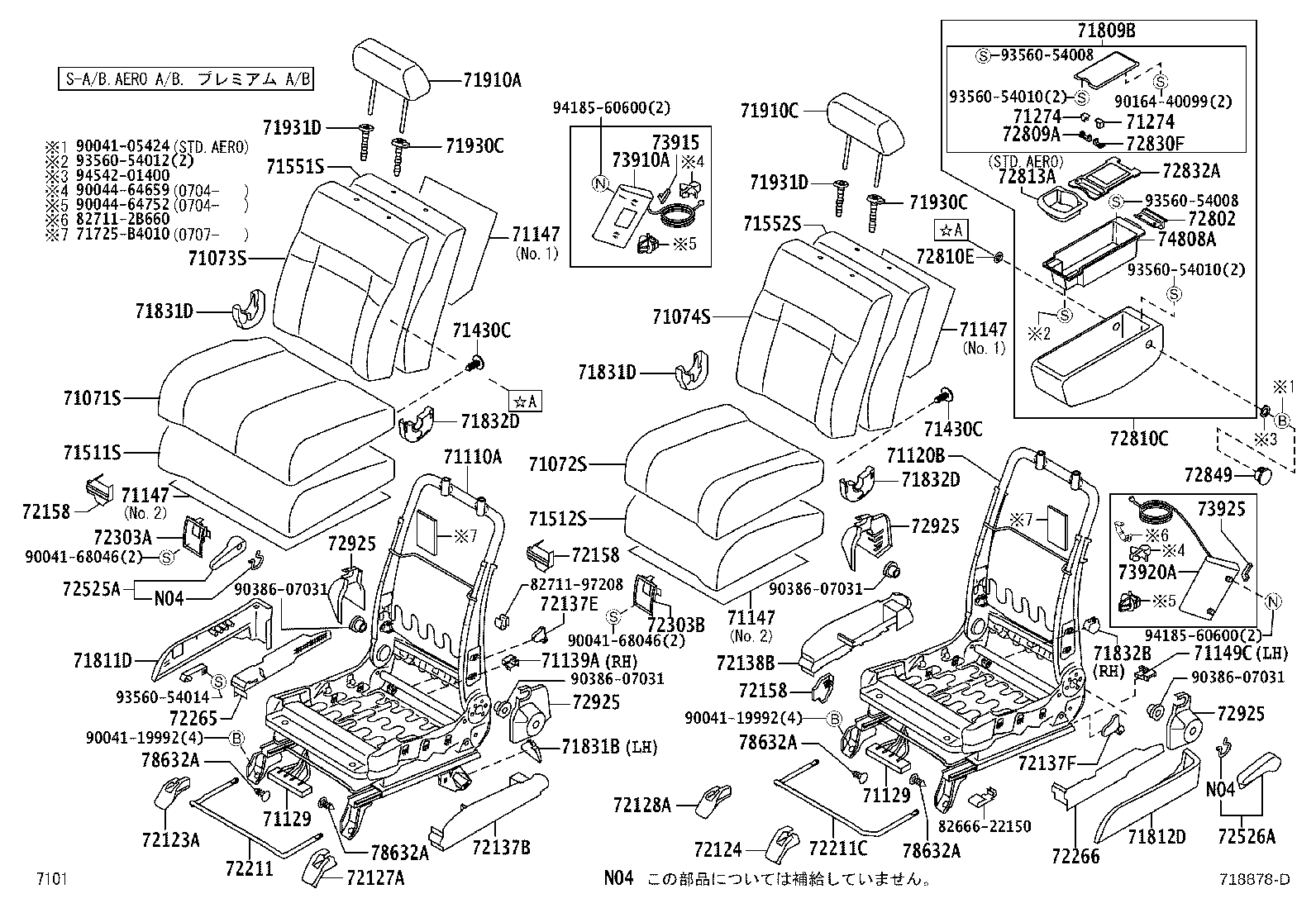

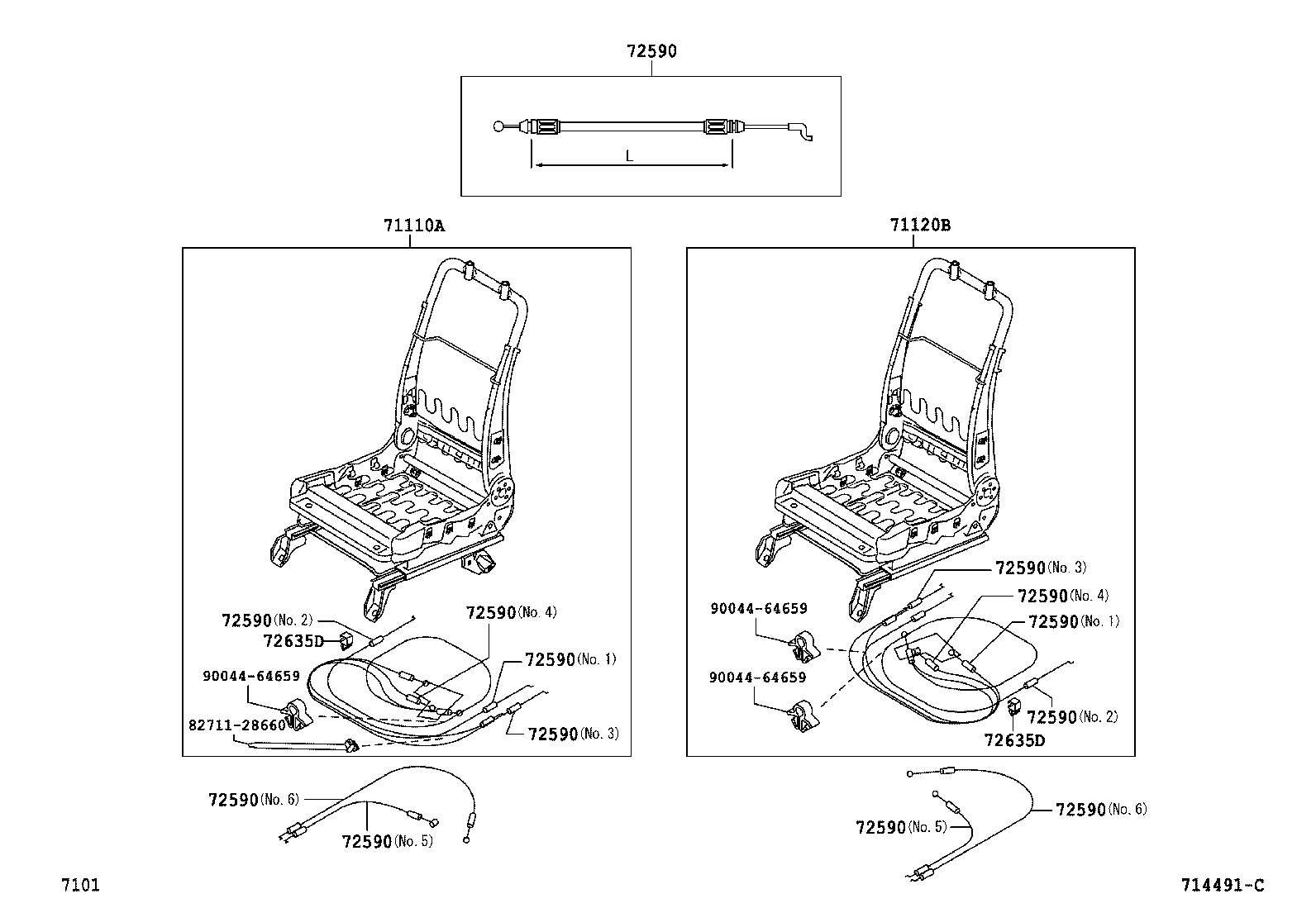

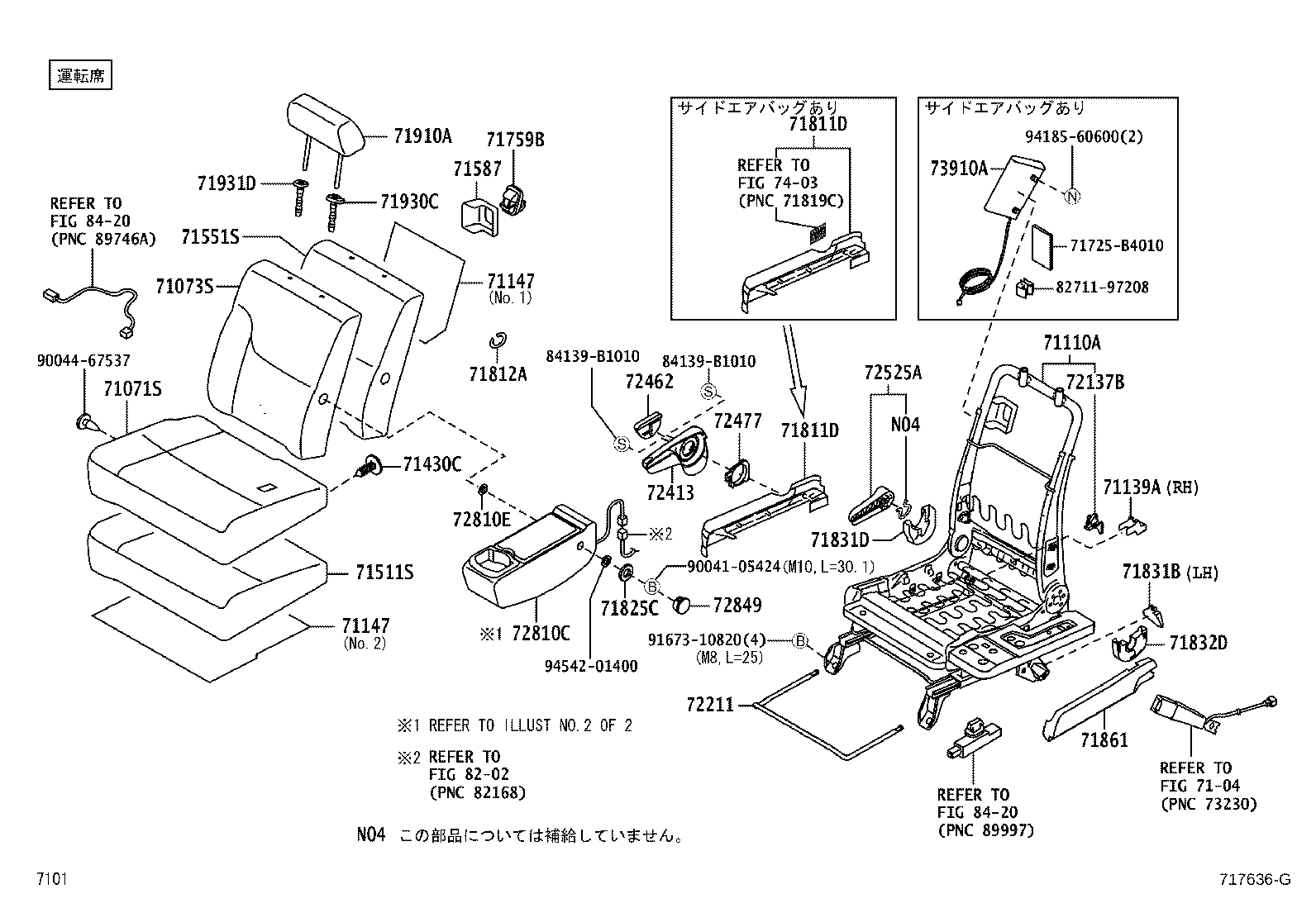

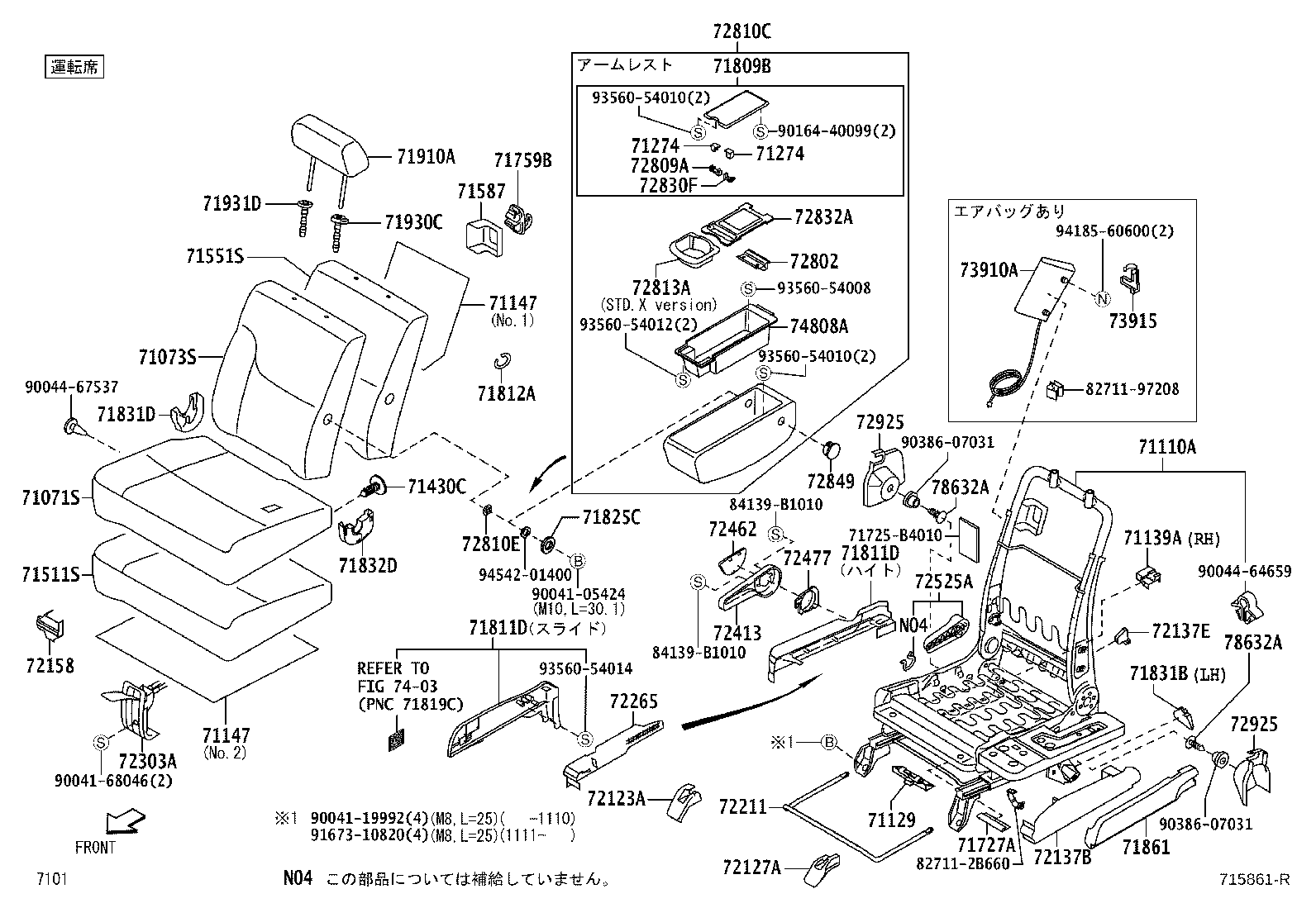

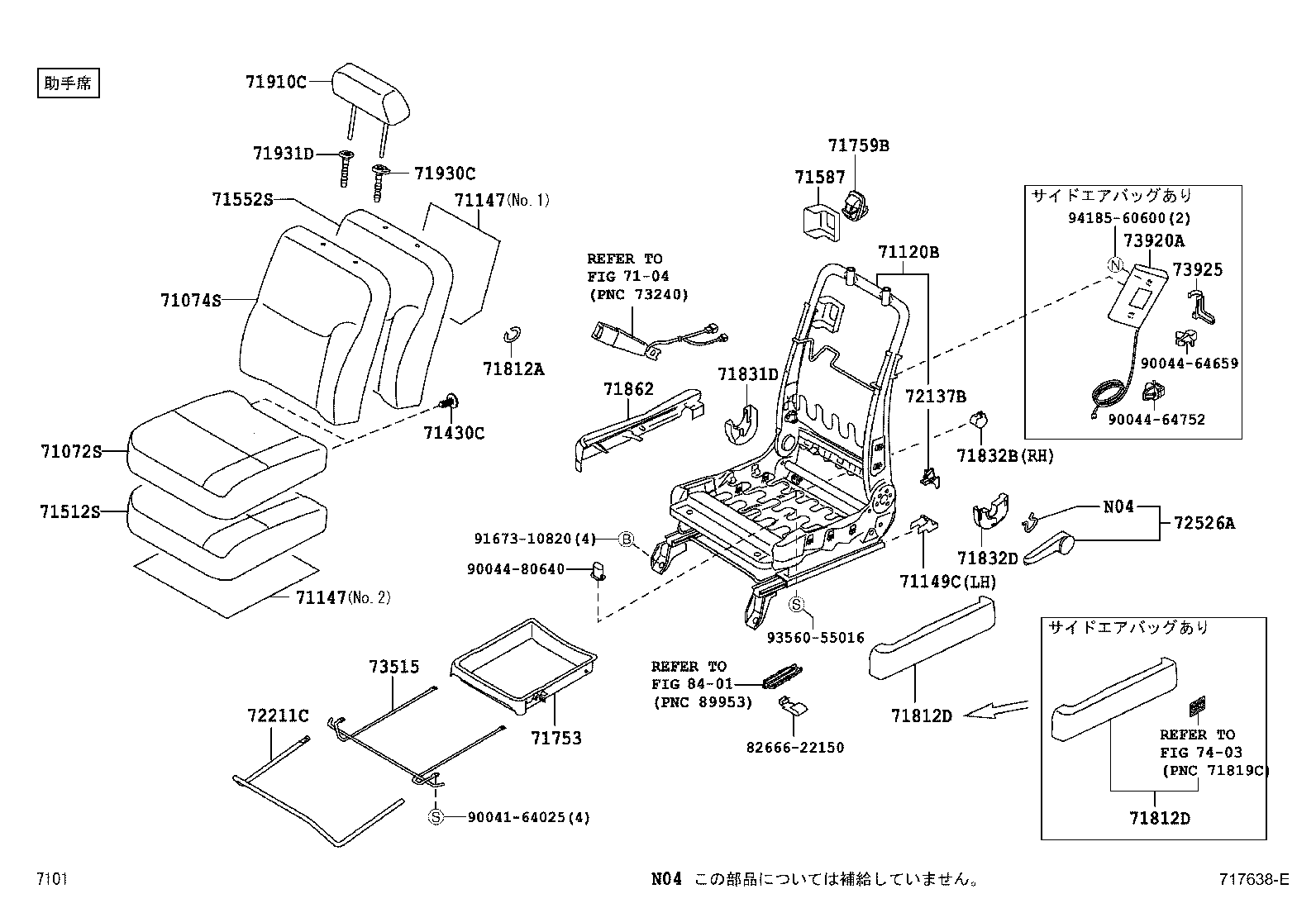

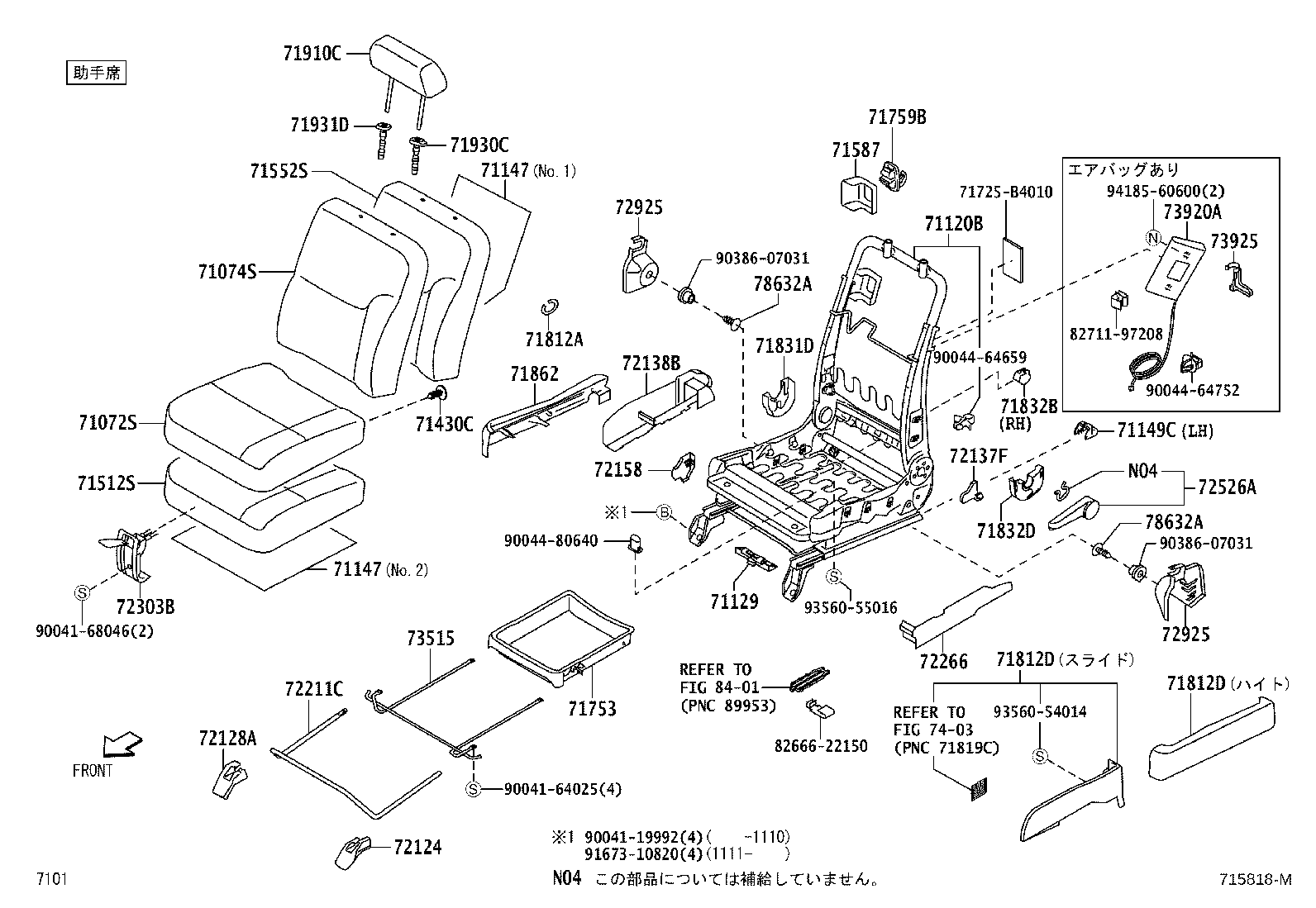

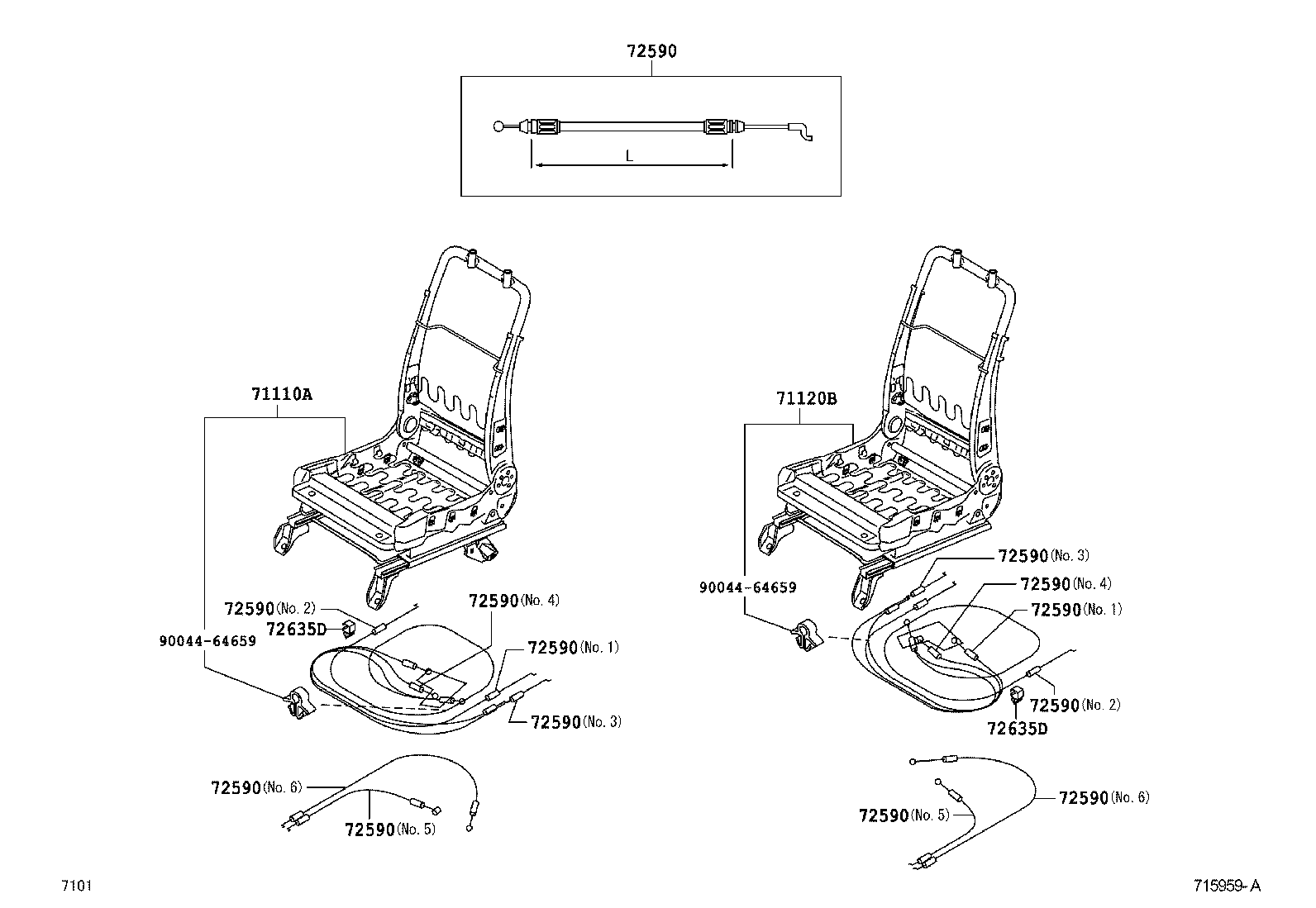

Figure 714288T 714288T 2006-01 → 2008-09 Figure 718878D 718878D 2006-01 → 2008-09 Figure 715861R 715861R 2008-09 → 2011-12 Figure 717636G 717636G 2011-12 → — Figure 717637A 717637A 2006-01 → — Figure 715818M 715818M 2008-09 → 2011-12 Figure 717638E 717638E 2011-12 → — Figure 714491C 714491C 2006-01 → 2008-09 Figure 715959A 715959A 2008-09 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71129 Plate, Front Seat Wire Connecting
71139A Cover, Front Seat Leg, NO.1
71147 Silencer, Seat Spring
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71274 Knob, Front Seat Hinge
71430C Clip
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71727A Trim, Seat Corner, NO.1
71753 Tray, Front Seat Under
71759B Hook, Front Seatback
71809B Cover Sub-assy, Front Seat Armrest Holder
71811D Shield, Front Seat Cushion, RH
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812D Shield, Front Seat Cushion, LH
71825C Plate
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71910C Headrest Assy, Front Seat
71930C Support, Front Seat Headrest, LH
71931D Support, Front Seat Headrest, RH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137B Cover, Seat Track, RH
72137E Cover, Seat Track, NO.1
72137F Cover, Seat Track, NO.2
72138B Cover, Seat Track, LH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72303A Lever Sub-assy, Seat Track Lock, RH
72303B Lever Sub-assy, Seat Track Lock, LH
72413 Lever, Vertical Adjuster Lock
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72590 Cable Assy, Seatback Control
72635D Hook, Seatback Lock
72802 Hinge Sub-assy, Armrest Console
72809A Lock Sub-assy, Center Armrest
72810C Armrest Assy, Front Seat, Center
72810E Bush, Front Seat Armrest, NO.1
72813A Box, Front Seat Center Armrest
72830F Lock Sub-assy, Front Seat Armrest
72832A Plate, NO.1 Seat Armrest
72849 Cap, Seat Armrest, NO.2
72925 Cover, Front Seat Cushion
73515 Rail, Front Seat Under Tray, NO.1
73910A Airbag Assy, Front Seat, RH
73915 Cover, Seat Airbag NO.1, RH
73920A Airbag Assy, Front Seat, LH
73925 Cover, Seat Airbag NO.1, LH
74808A Box Sub-assy, Seat Trash
78632A Clip, Front Seat Side Table Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
