Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01

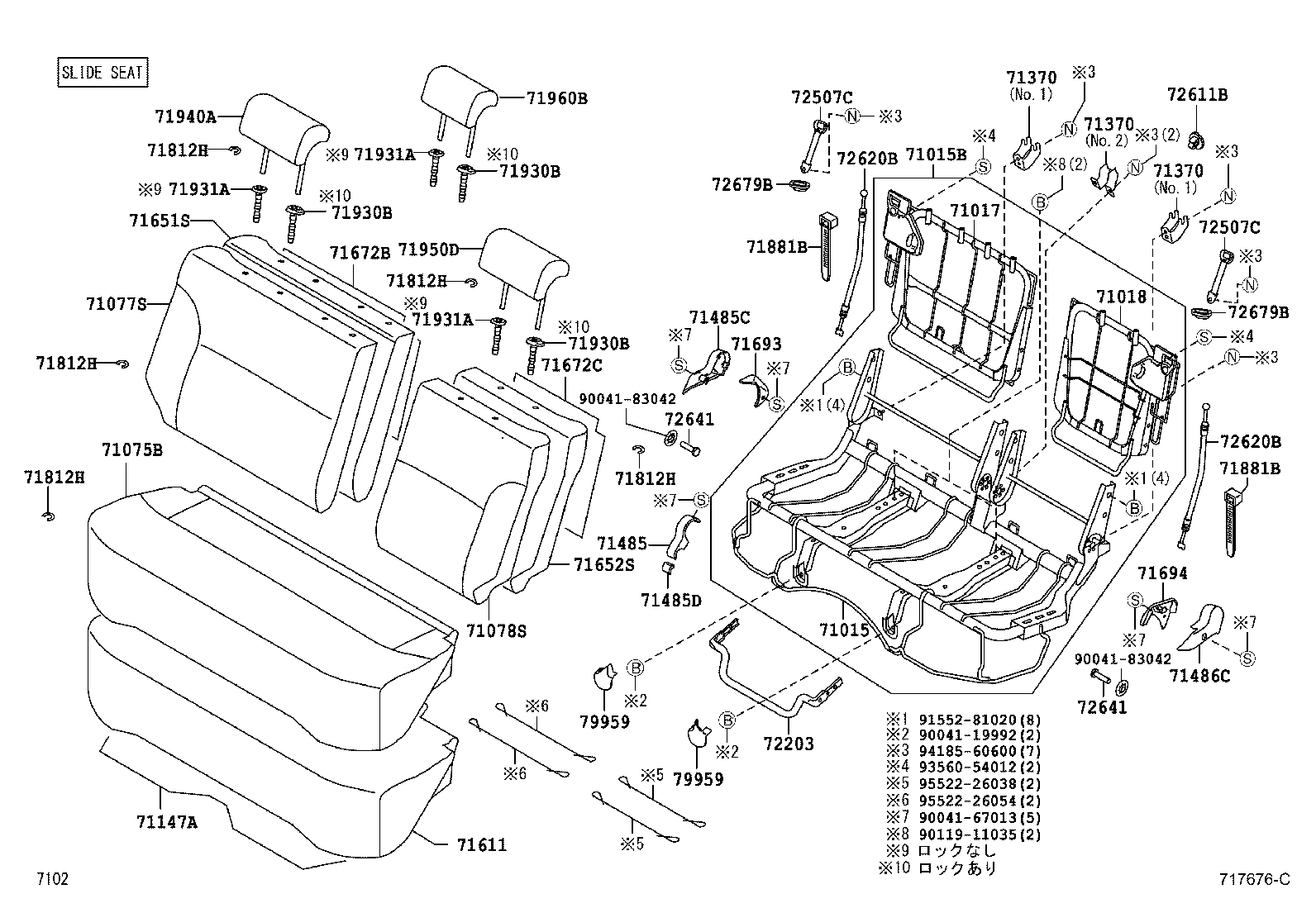

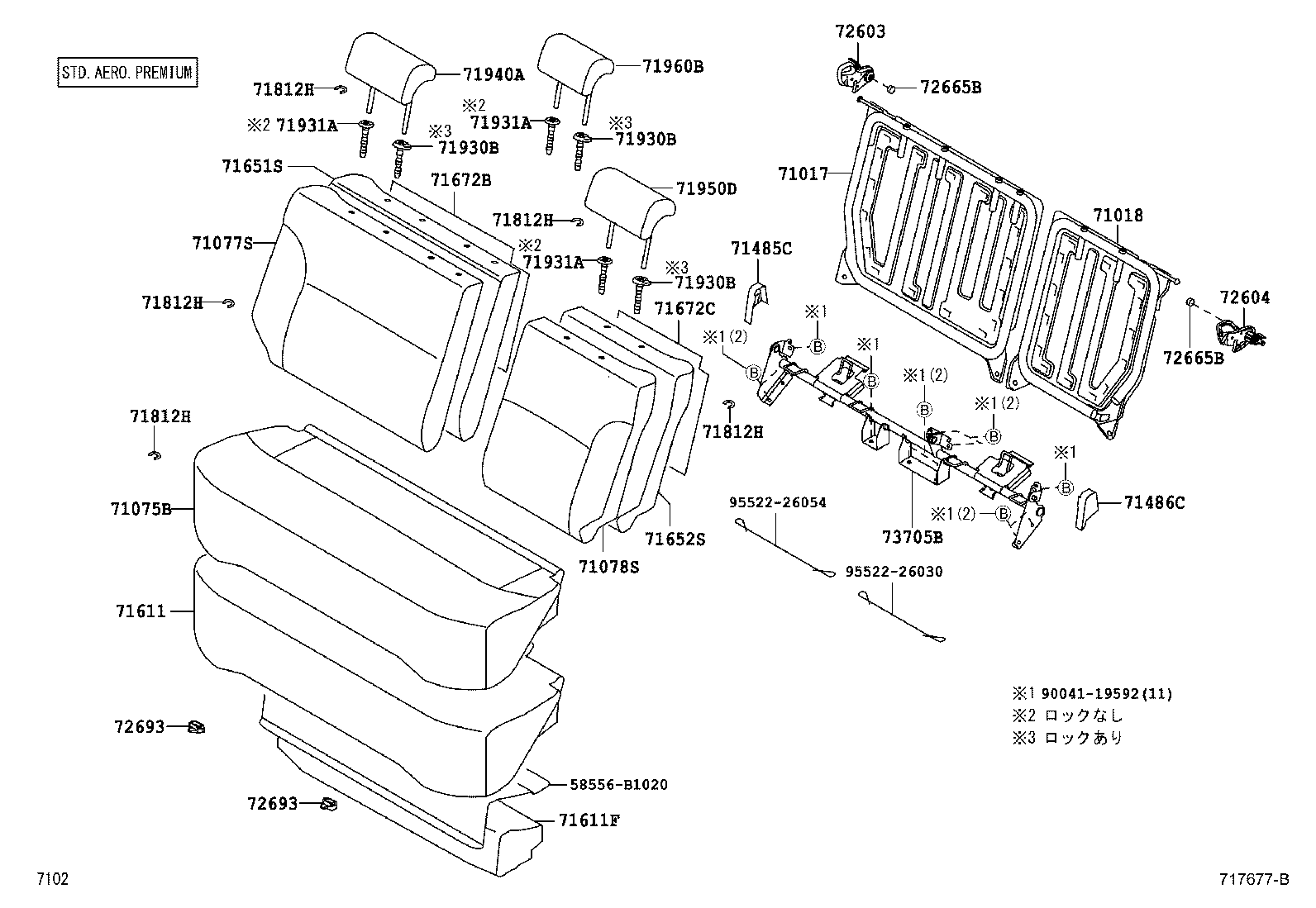

Rear Seat & Seat Track

40 part groups · 3 illustrations

PNC	Description
71015	Frame Sub-assy, Rear Seat Cushion
71015B	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147A	Silencer, Rear Seat Spring
71370	Bracket Sub-assy, Rear Seat Cushion Holder
71485	Cover, Rear Seat Hinge
71485C	Cover, Rear Seat Hinge, RH
71485D	Cover, Rear Seat Hinge, LH
71486C	Cover, Rear Seat Hinge, LH
71611	Pad, Rear Seat Cushion
71611F	Pad, Rear Seat Cushion, A
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71672B	Silencer, Rear Seatback, RH
71672C	Silencer, Rear Seatback, LH
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71812H	Ring, Hog, Small (FOR REAR SEAT)
71881B	Clip, Rear Seatback Board
71930B	Support Assy, Rear Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71950D	Headrest Assy, Rear Seat, LH
71960B	Headrest Assy, Rear Seat, Center
72203	Handle Sub-assy, Rear Seat Track
72507C	Handle Sub-assy, Reclining Release, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72611B	Clip(FOR REAR SEAT LOCK BASE)
72620B	Cable Assy, Rear NO.1 Seat Lock
72641	Pin, Rear Seatback Lock
72665B	Cover, Rear Seatback Lock
72679B	Bezel, Rear Seatback Lock Control
72693	Hook, Rear Seat Cushion Lock
73705B	Bracket Sub-assy, Cross Anchor
79959	Cover, RR Seat Leg

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
