Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

18 part groups · 2 illustrations

Illustrations

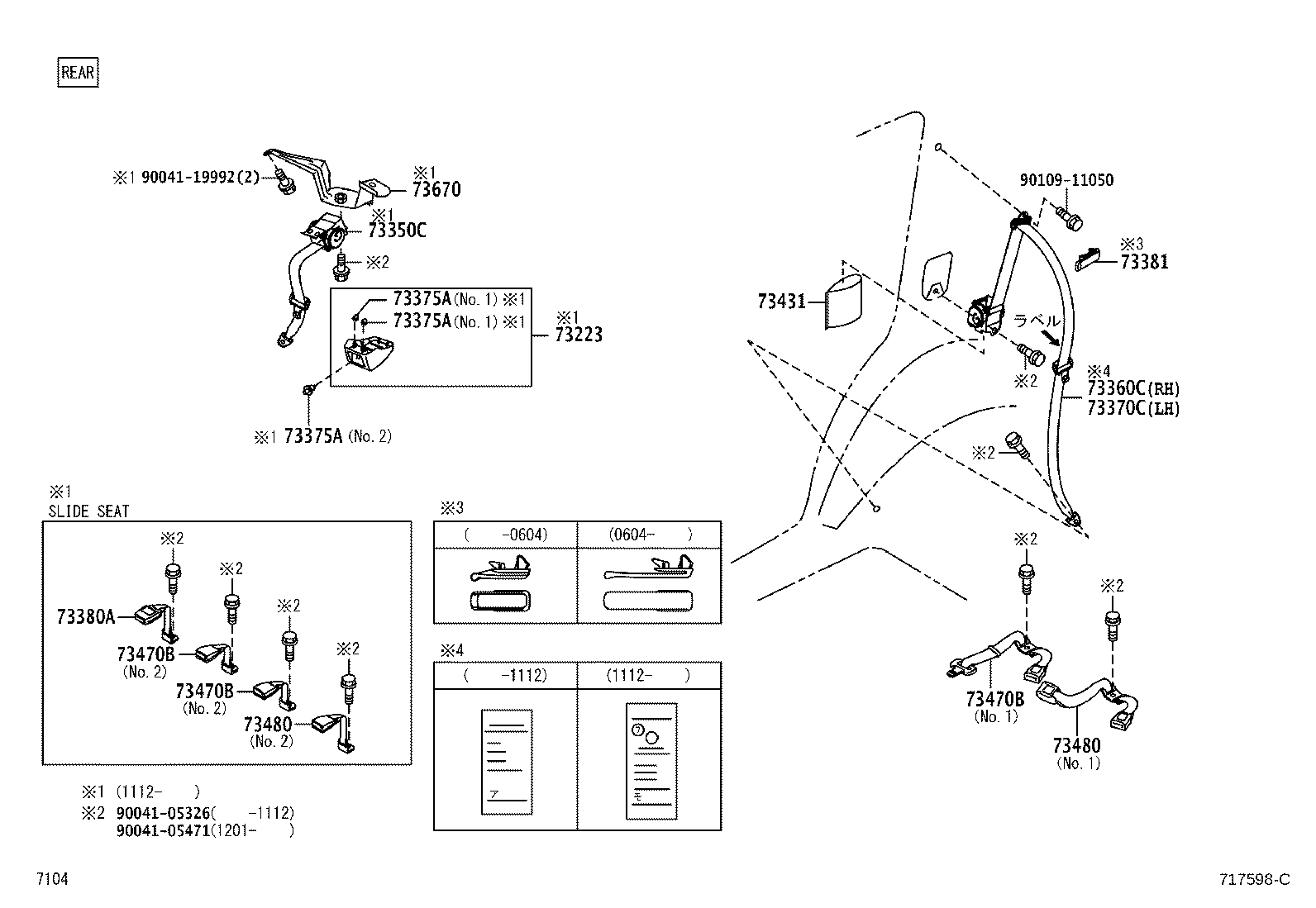

Figure 714291M 714291M 2006-01 → — Figure 717598C 717598C 2006-01 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73237 Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73431 Cover, Rear Seat Belt Retractor, RH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73670 Bracket Assy, Rear Seat Belt Outer Anchor, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
