Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

15 part groups · 2 illustrations

Illustrations

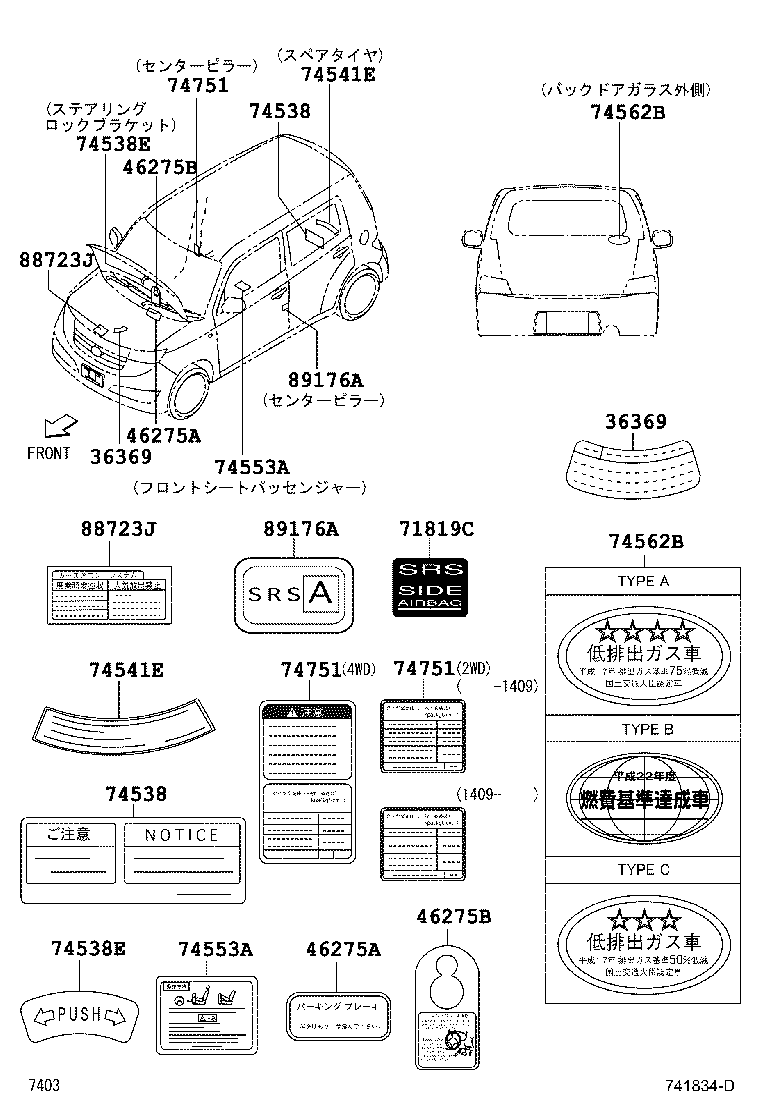

Figure 745638 745638 2006-01 → — Figure 741834D 741834D 2006-01 → —

Part groups

PNCDescription
11293C Label, Tune-up Specification Information
11293D Label, Engine Caution
36369 Label, Transfer Information
41991G Label, Caution, NO.1
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
71819C Label, Side Airbag Name
74538 Plate, Jack Carrier Caution
74538E Label, Ignition Swich Notice
74541E Plate, Compact Spare Tire Caution
74553A Plate, Front Seat Caution
74562B Label, Emission Information
74751 Label, Tire Pressure Information
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
