Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

19 part groups · 3 illustrations

Illustrations

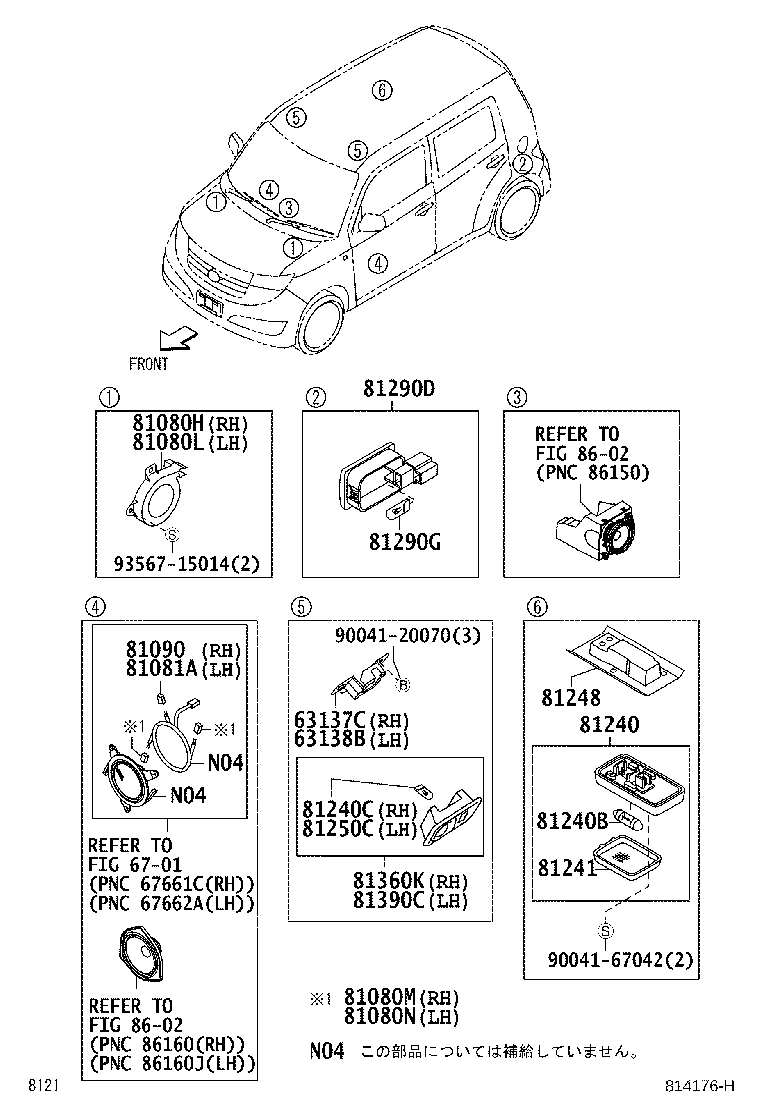

Figure 813586Q 813586Q 2006-01 → 2007-08 Figure 814176H 814176H 2007-08 → — Figure 814003B 814003B 2006-01 → —

Part groups

PNCDescription
63137C Bracket, Dome Lamp, NO.1
63138B Bracket, Dome Lamp, NO.2
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81081A Lamp Sub-assy, Interior Illumination, NO.2
81090 Lamp Assy, Interior Illumination, NO.2
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240C Bulb
81241 Lens, Room Lamp, NO.1
81248 Cover, Room Lamp, NO.1
81250C Bulb, Spot Lamp
81290D Lamp Assy, Rear Room, LH
81290G Bulb, Rear Room Lamp, LH
81360K Lamp Assy, Spot, RH
81390C Lamp Assy, Spot, LH
81870D Lamp Assy, Key Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
