Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 5 illustrations

Illustrations

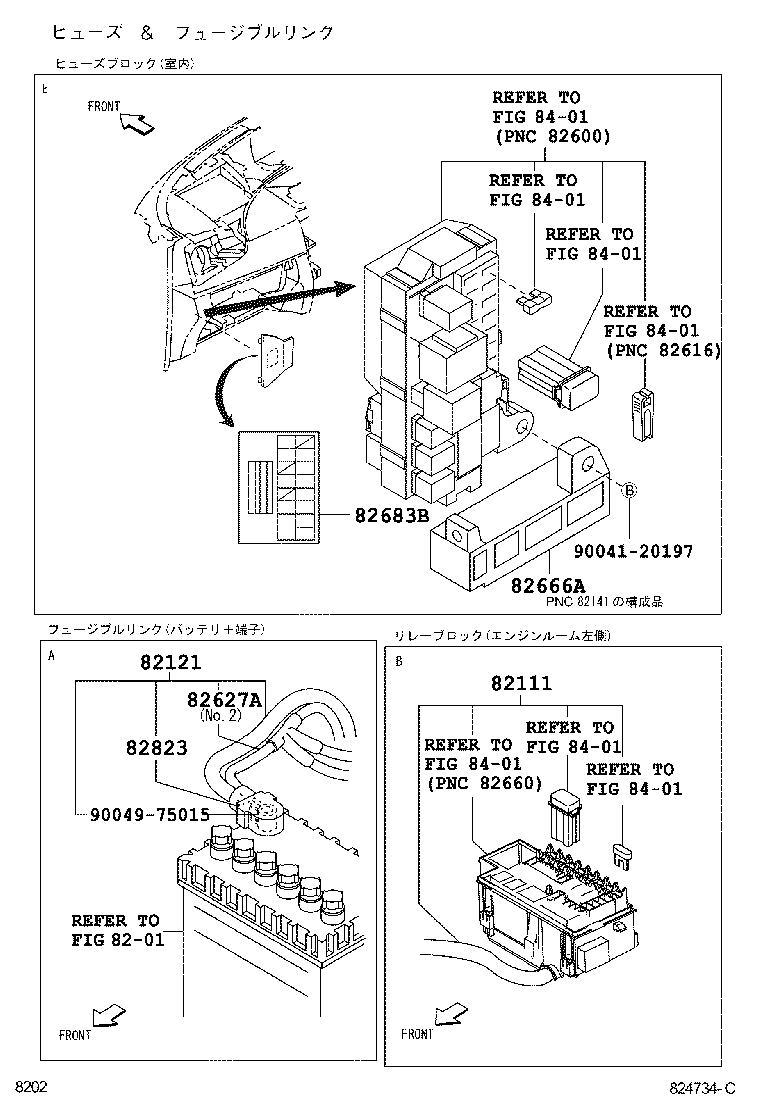

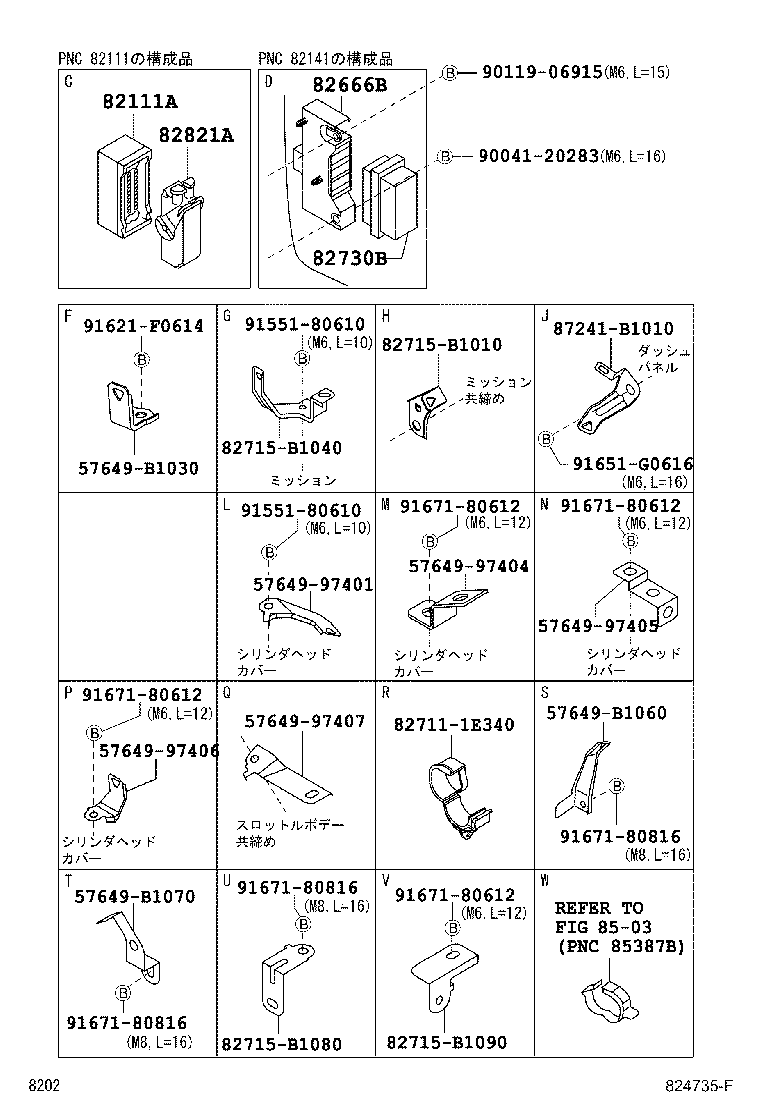

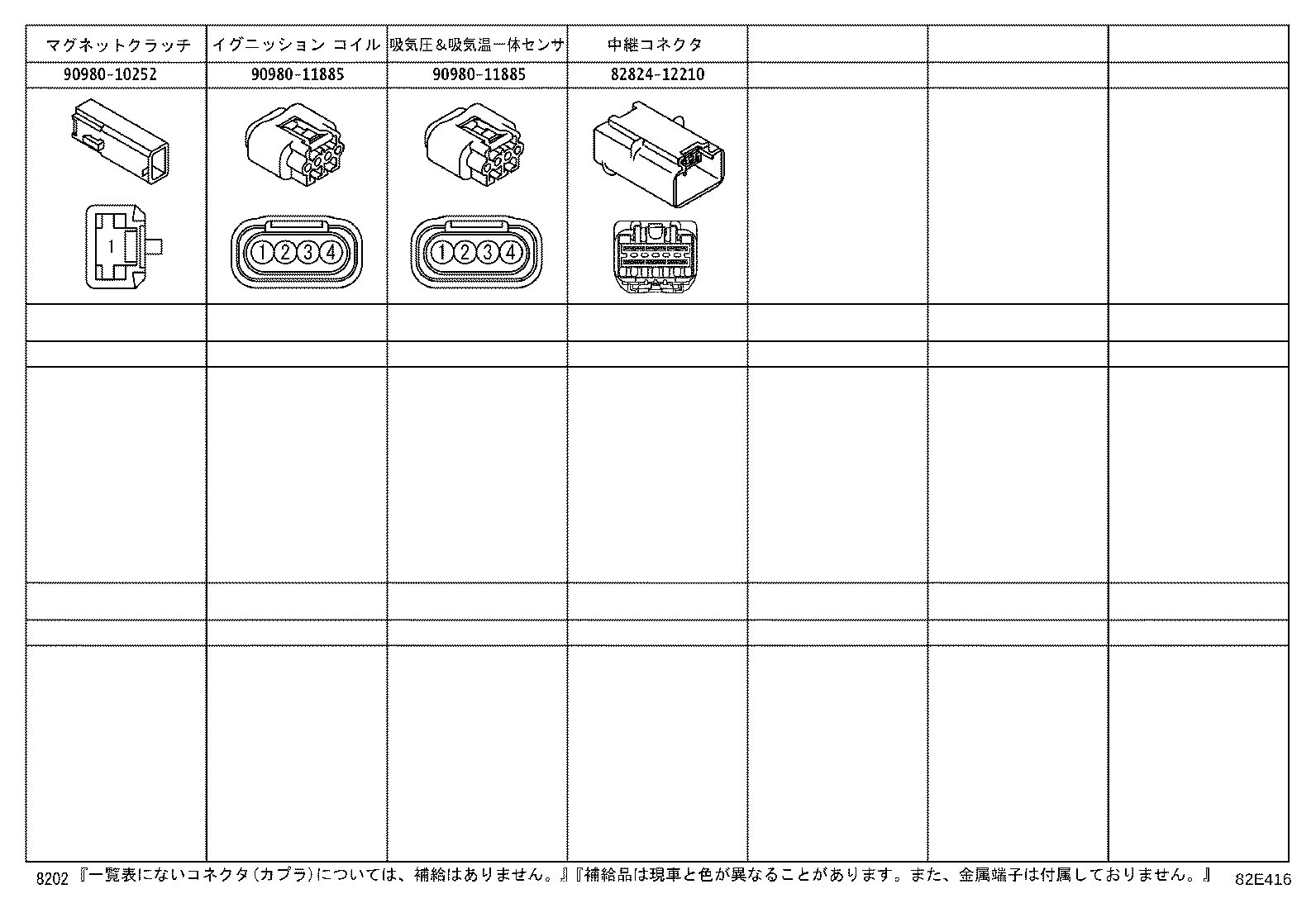

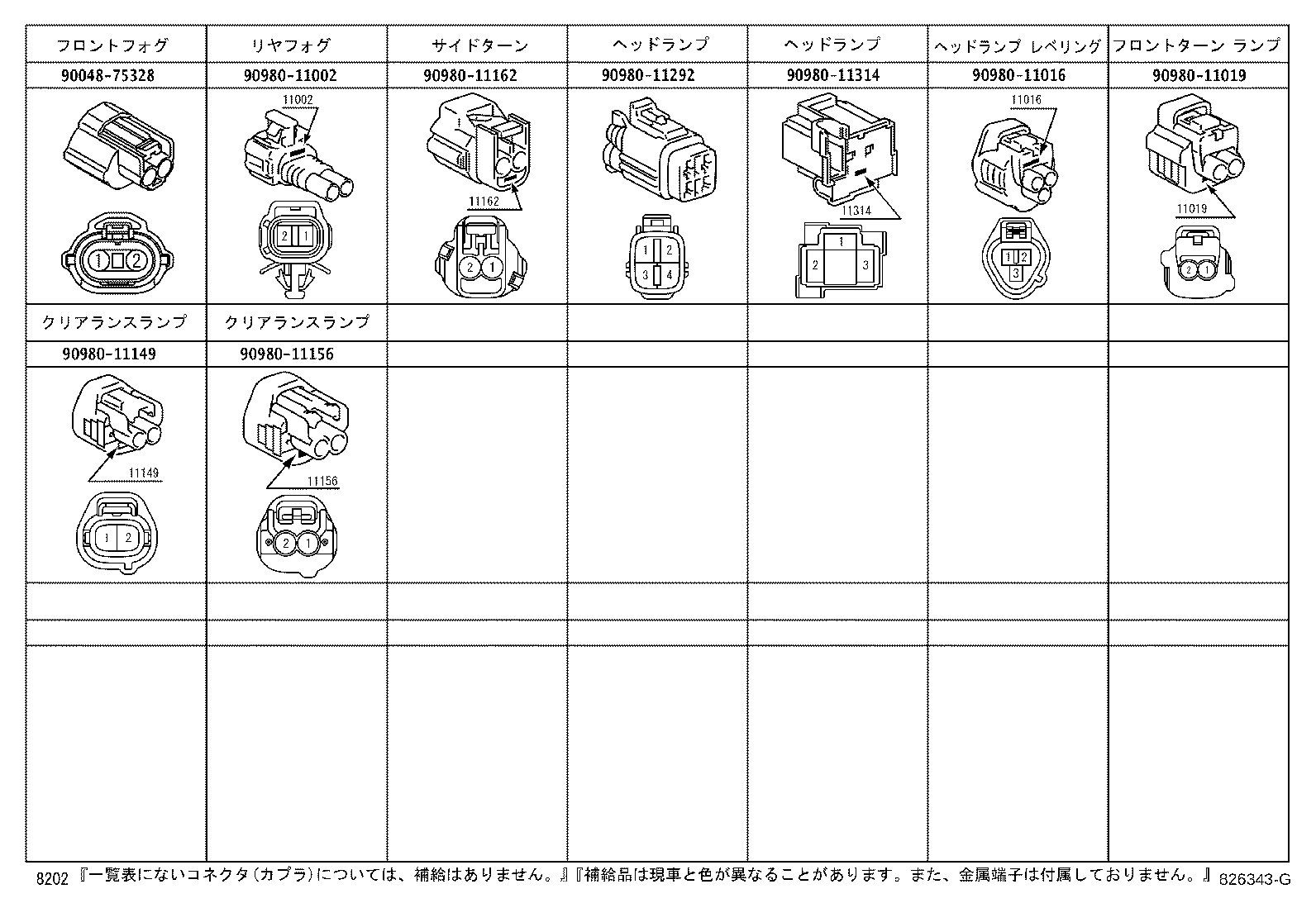

Figure 824733P 824733P 2006-01 → — Figure 824734C 824734C 2006-01 → — Figure 824735F 824735F 2006-01 → — Figure 826343G 826343G 2006-01 → — Figure 82E416 82E416 2006-01 → —

Part groups

PNCDescription
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82111A Connector, Engine Room Main Wire
82121 Wire, Engine
82130 Harness Assy, Chassis Wire
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82217A Wire, Front Window Defogger
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82683B Label, Fuse Block Notice
82730B Block Assy, Passenger Side Junction
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
