Toyota BB

2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

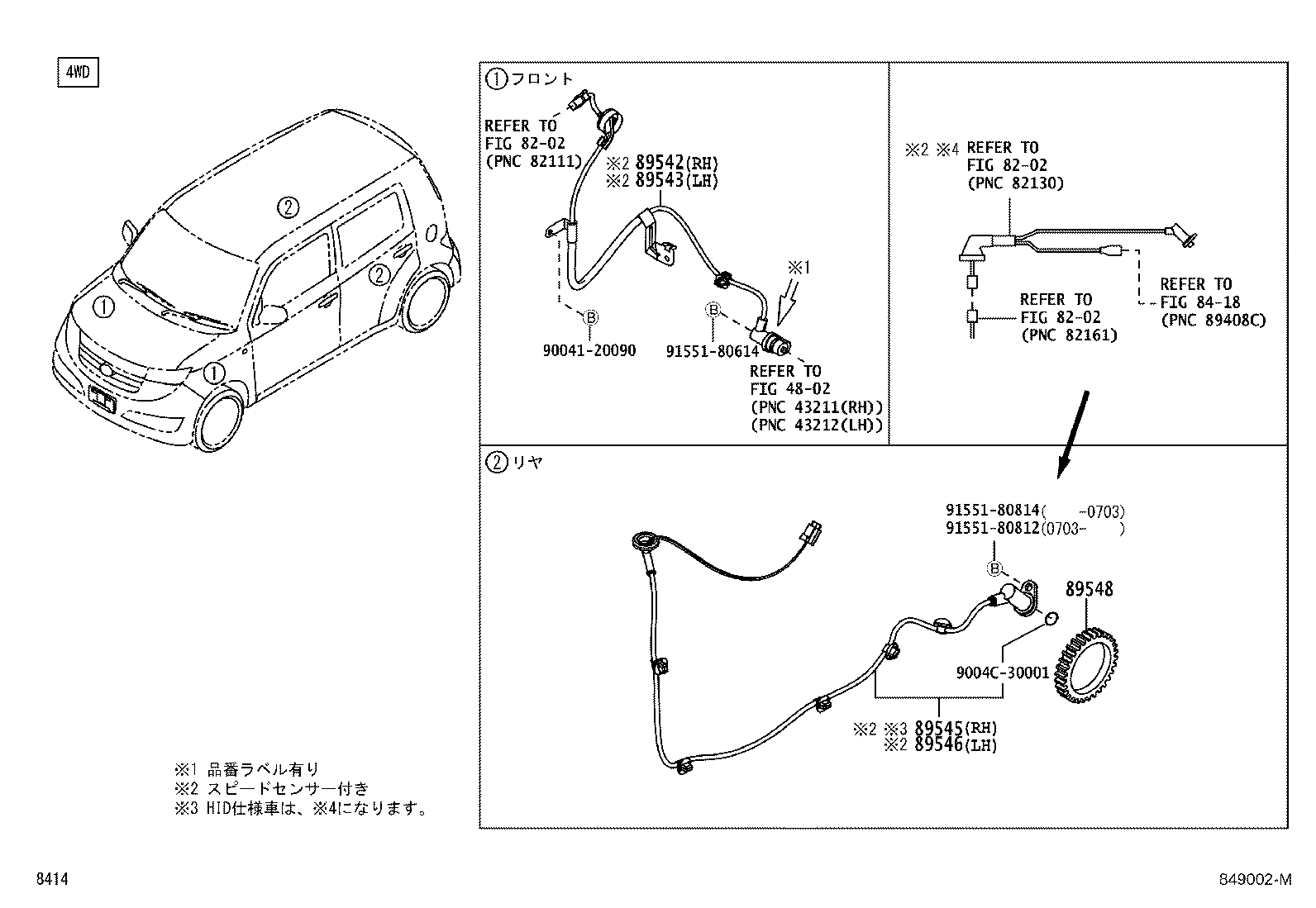

Figure 847561H 847561H 2006-01 → — Figure 849002M 849002M 2006-01 → 2014-09

Part groups

PNCDescription
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89183A Sensor, Yawrate
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89548 Rotor, Skid Control Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
