Toyota BB
2006-01 → 2016-07 · chassis QNC2# · catalogue 115120 · Japan
Supported model
Data version 2017-01
Speaker

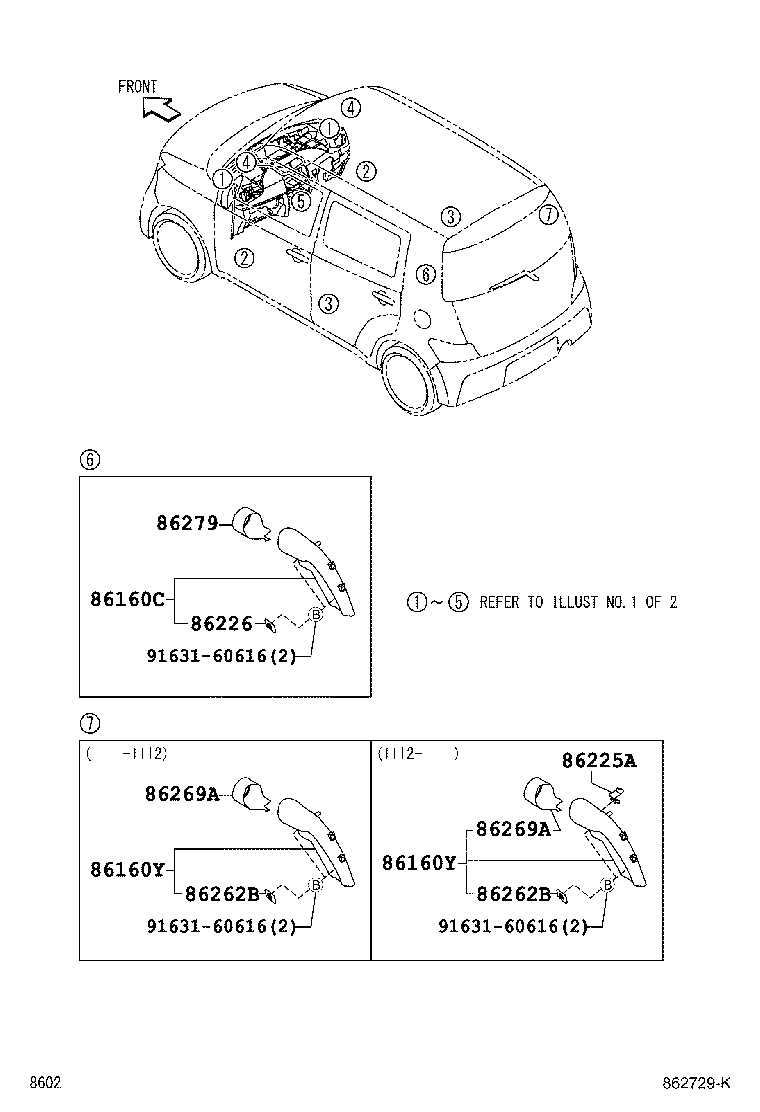

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81789B | Cover, Speaker |
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160A | Speaker Set, Front |
| 86160B | Speaker Assy, Rear |
| 86160C | Speaker Set, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160L | Speaker Assy, Front NO.4 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160V | Speaker Set, Front NO.2 |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86160Z | Speaker Assy, Rear NO.3 |
| 86225A | Cover, Speaker |
| 86226 | Cover, Speaker, LH |
| 86262A | Cover, Speaker, Front |
| 86262B | Cover, Speaker, Rear |
| 86269A | Grille, Speaker |
| 86279 | Grille, Speaker, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
