Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 2 illustrations

Illustrations

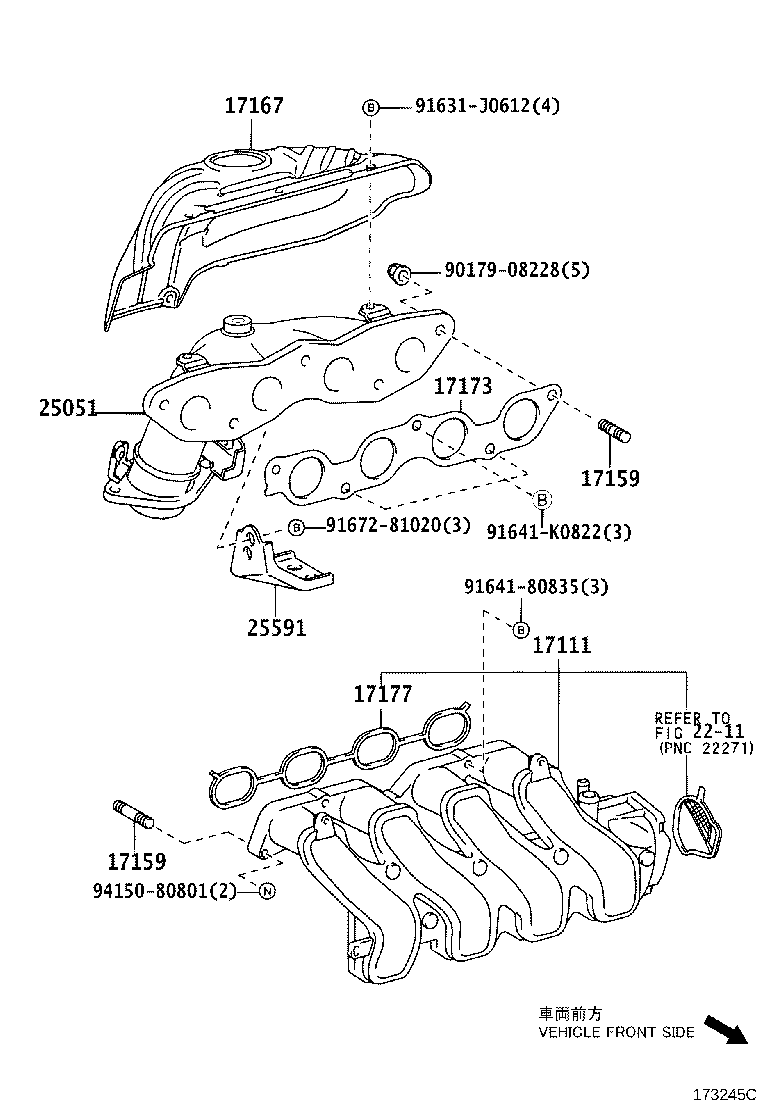

Figure 173244D 173244D 2002-04 → — Figure 173245C 173245C 2002-04 → —

Part groups

PNCDescription
17111 Manifold, Intake
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
