Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 2 illustrations

Illustrations

Figure 173254C

173254C 2002-04 → —

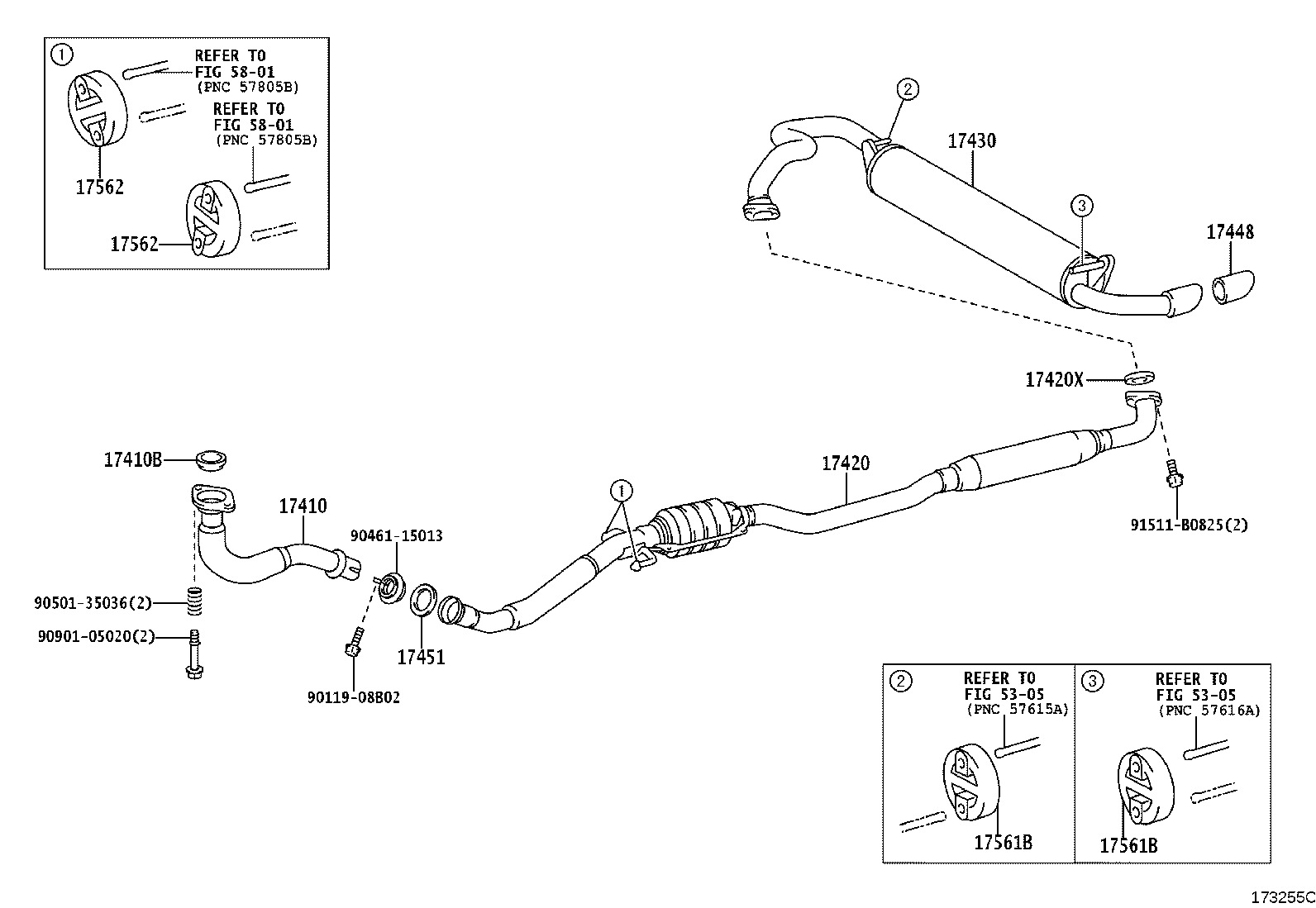

Figure 173255C

173255C 2002-04 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17420	Pipe Assy, Exhaust, Center
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17448	Baffle, Tailpipe
17451	Gasket, Exhaust Pipe
17561B	Support, Exhaust Pipe, NO.1
17562	Support, Exhaust Pipe, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
