Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 2 illustrations

Illustrations

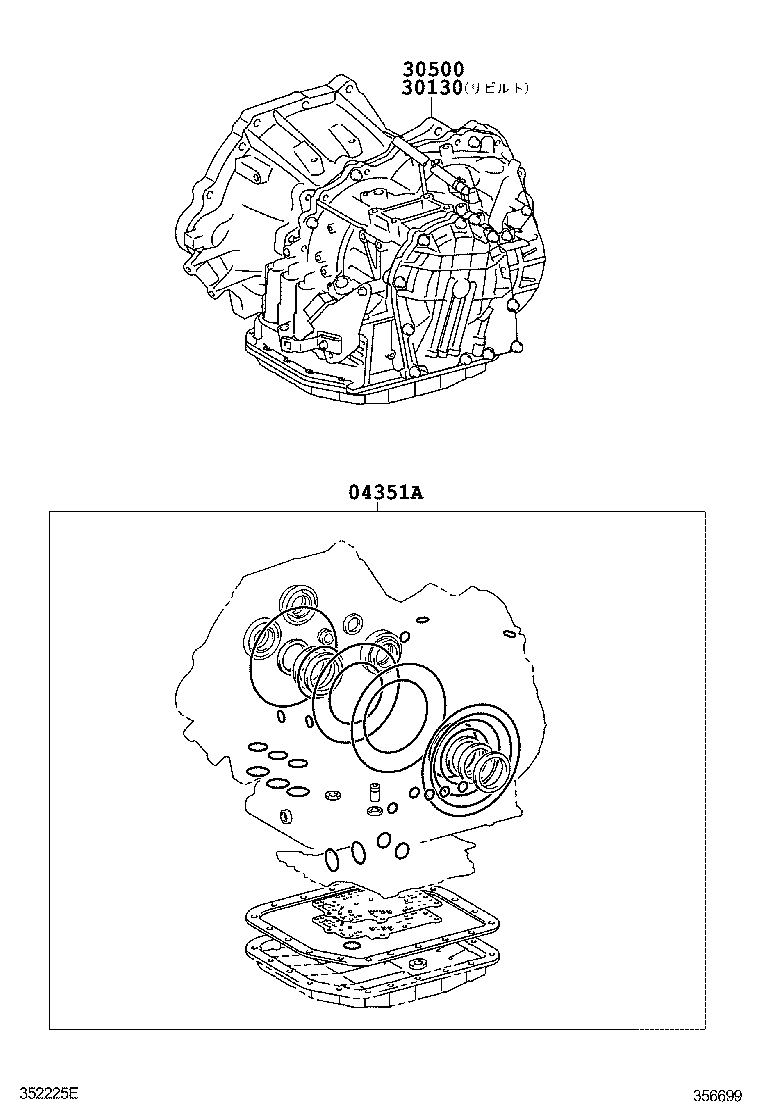

Figure 356698 356698 2002-04 → — Figure 356699 356699 2002-04 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
