Toyota Ist
2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan
Supported model
Data version 2008-01

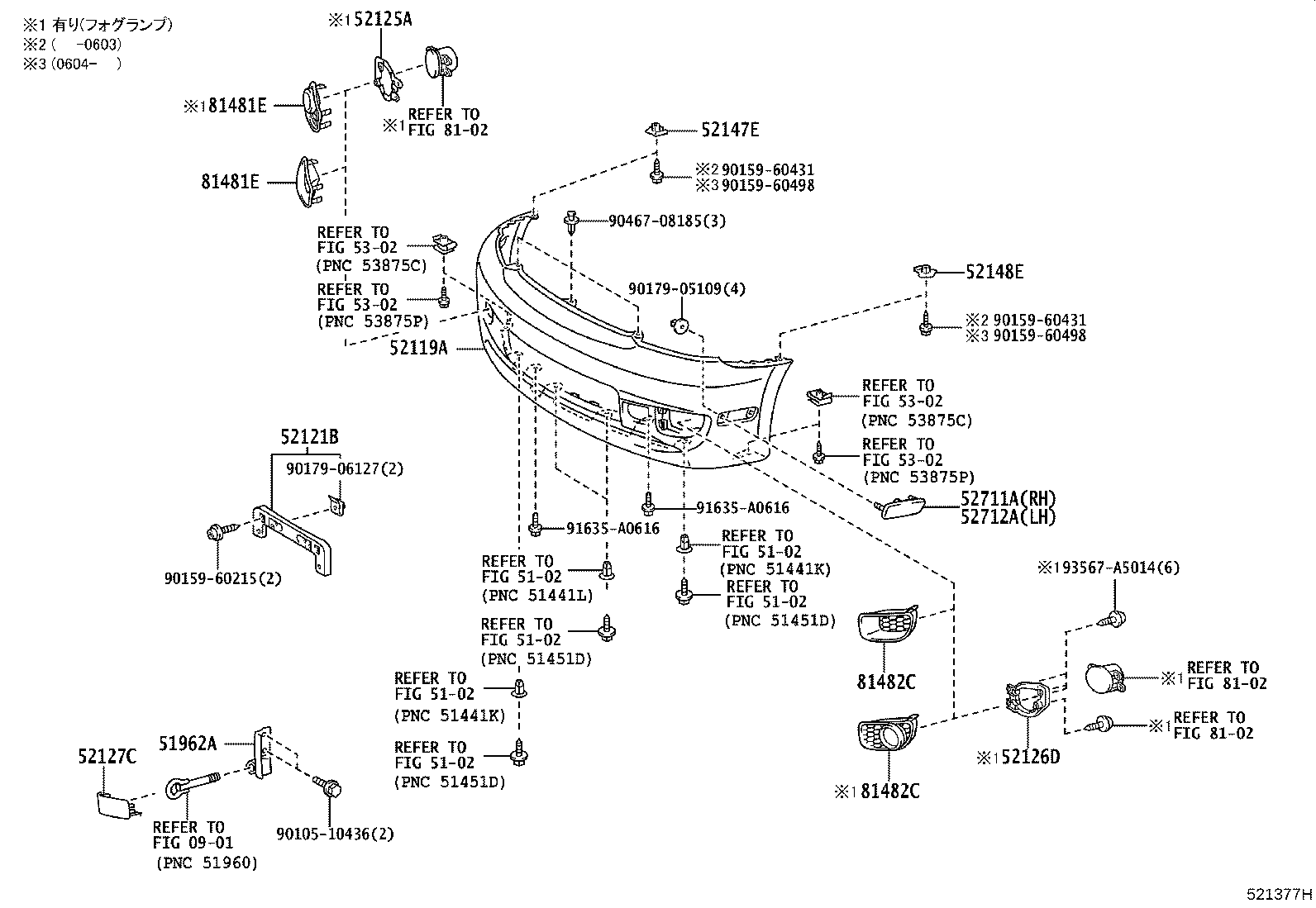

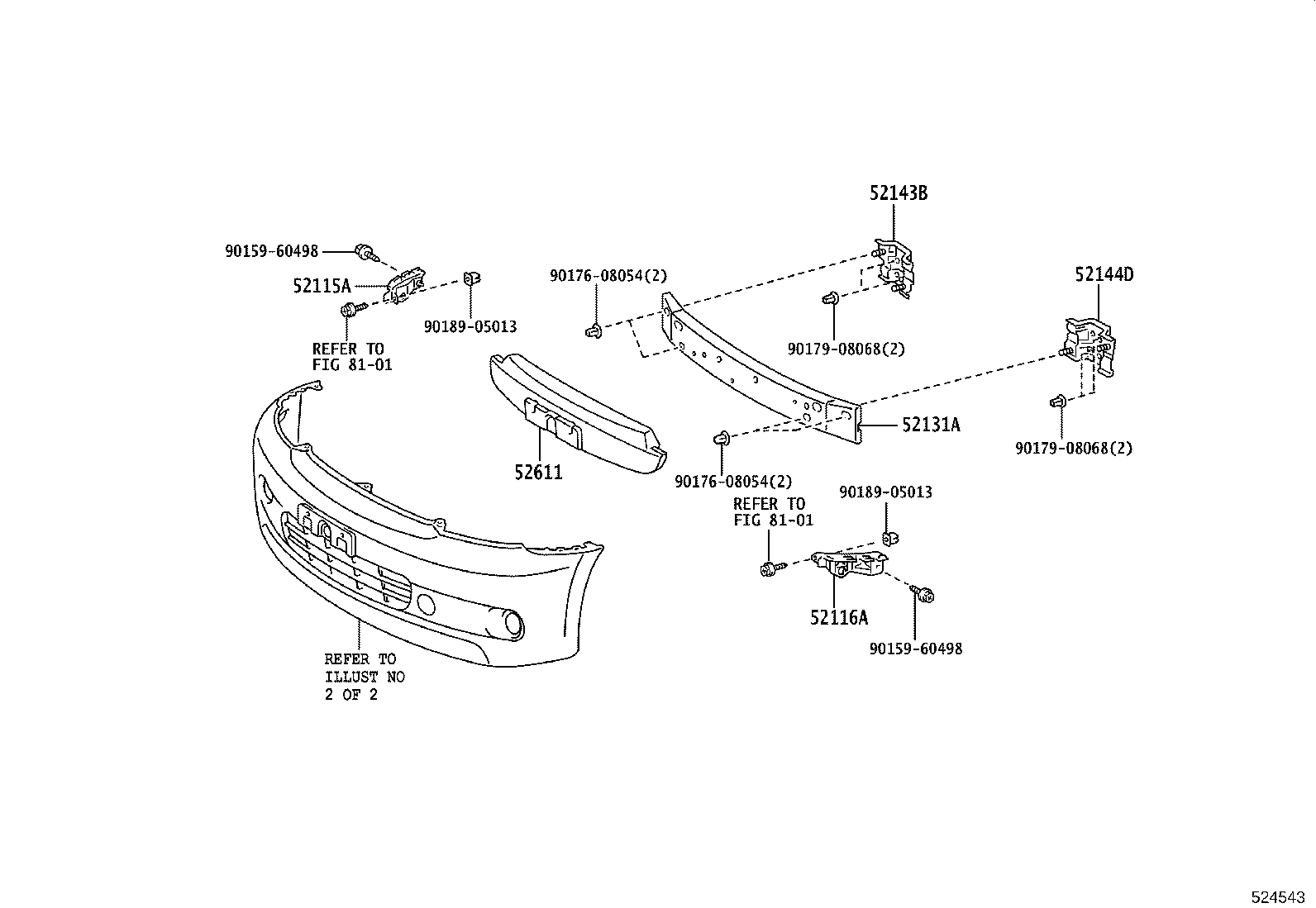

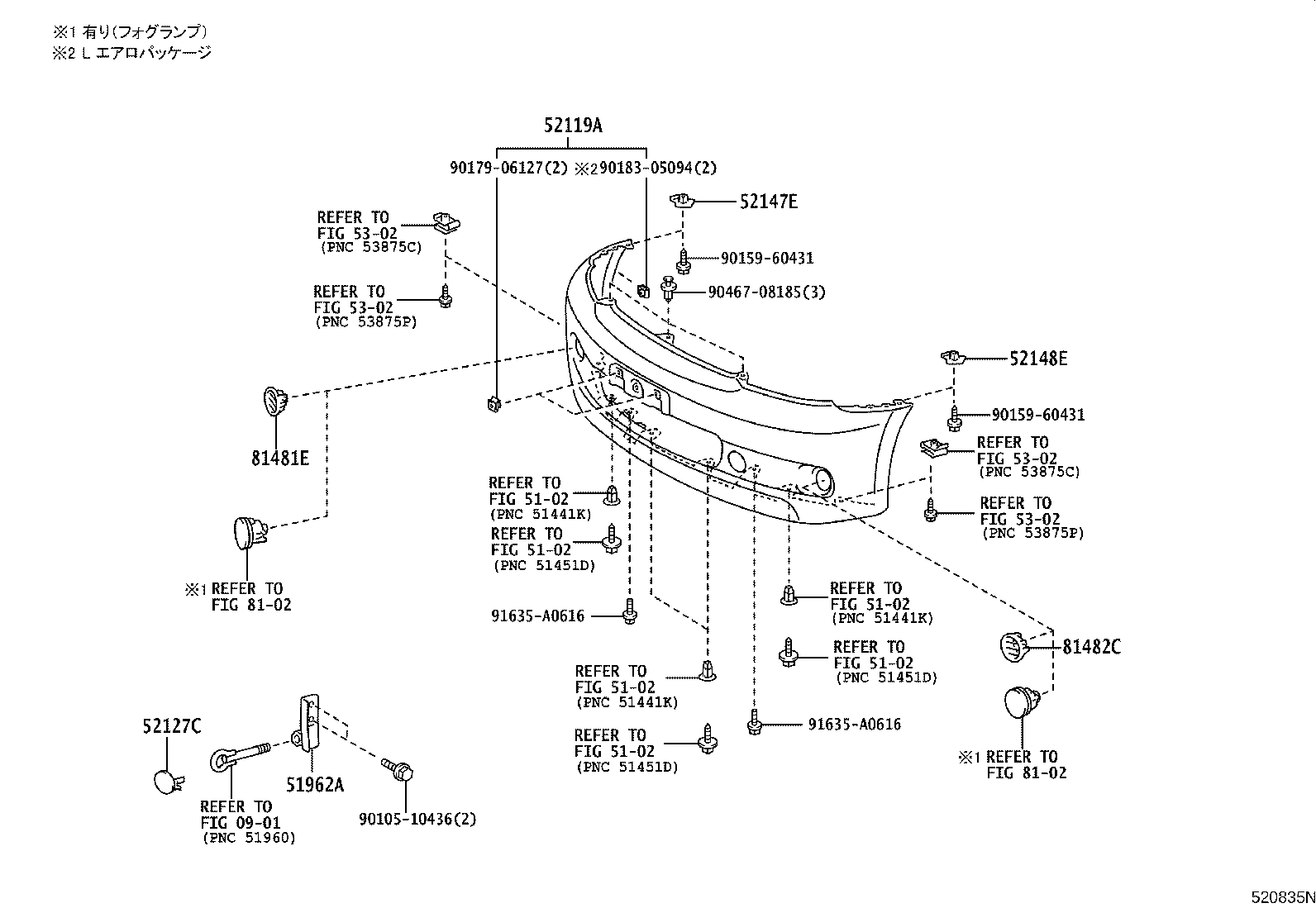

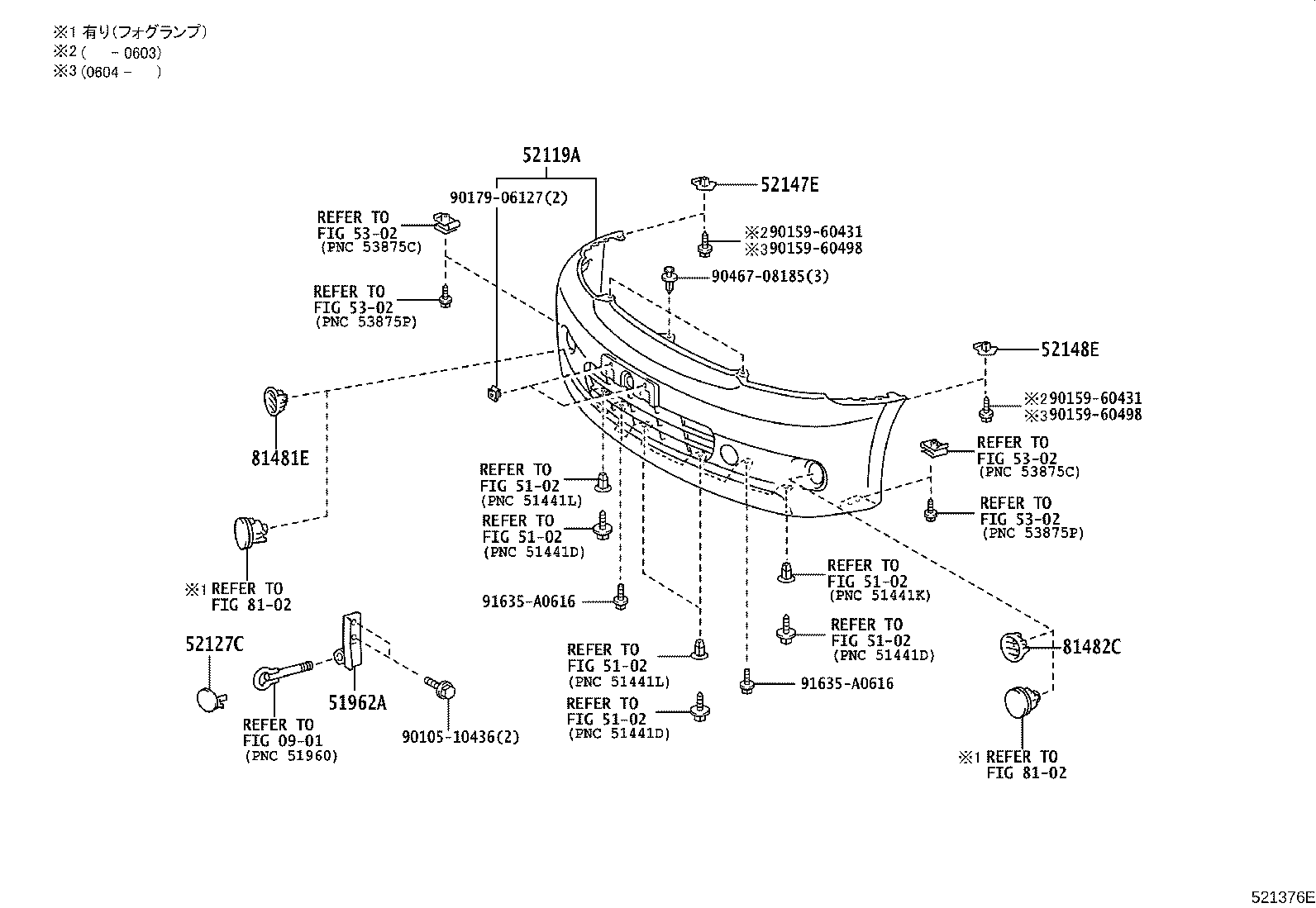

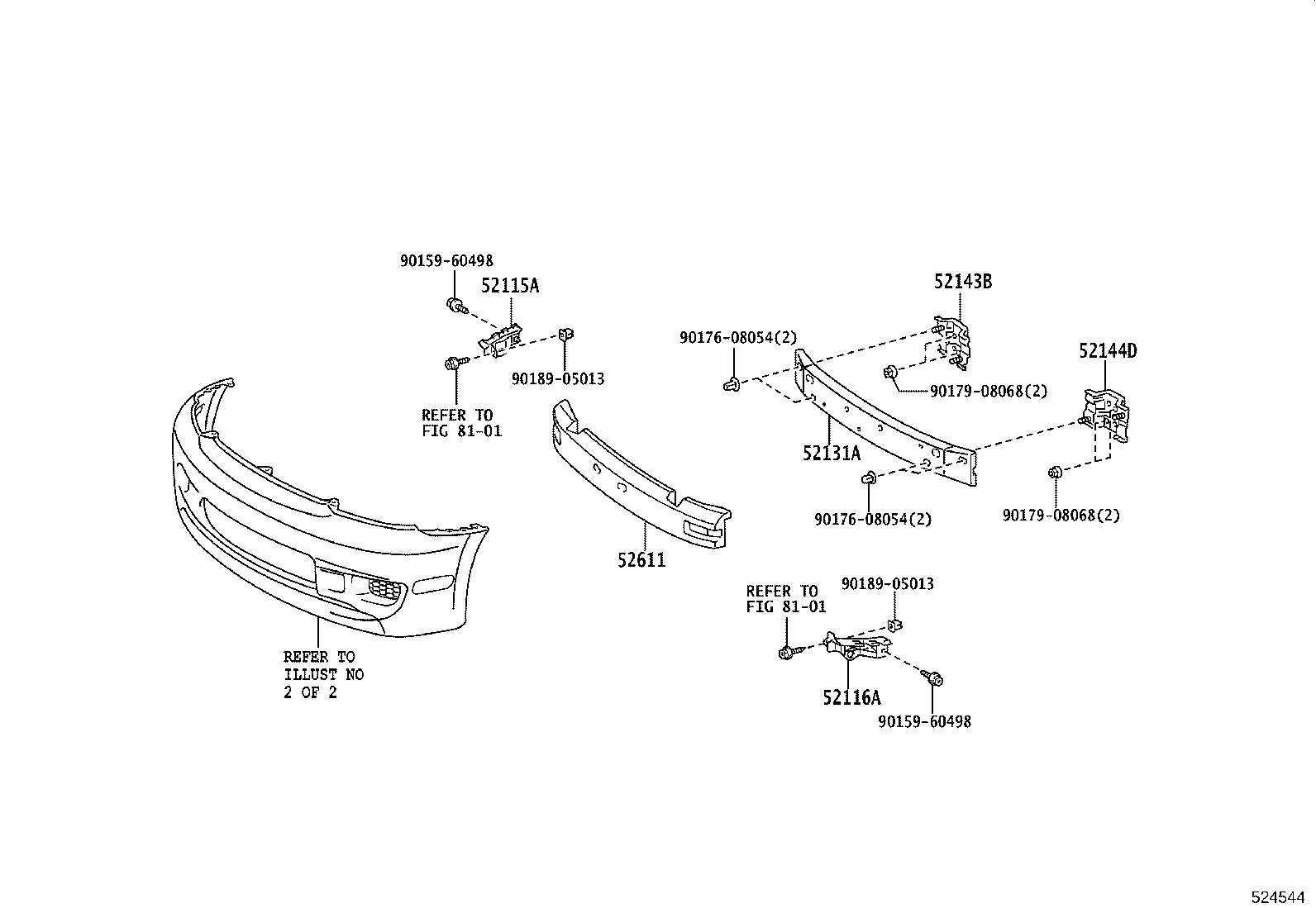

Front Bumper & Bumper Stay
18 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 51962A | Hook, Front LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127C | Cover, Front Bumper Hole |
| 52131A | Reinforcement, Front Bumper |
| 52143B | Bracket, Front Bumper Side |
| 52144D | Bracket, Front Bumper Side, LH |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52711A | Garnish, Front Bumper |
| 52712A | Garnish, Front Bumper, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
