Toyota Ist
2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan
Supported model
Data version 2008-01

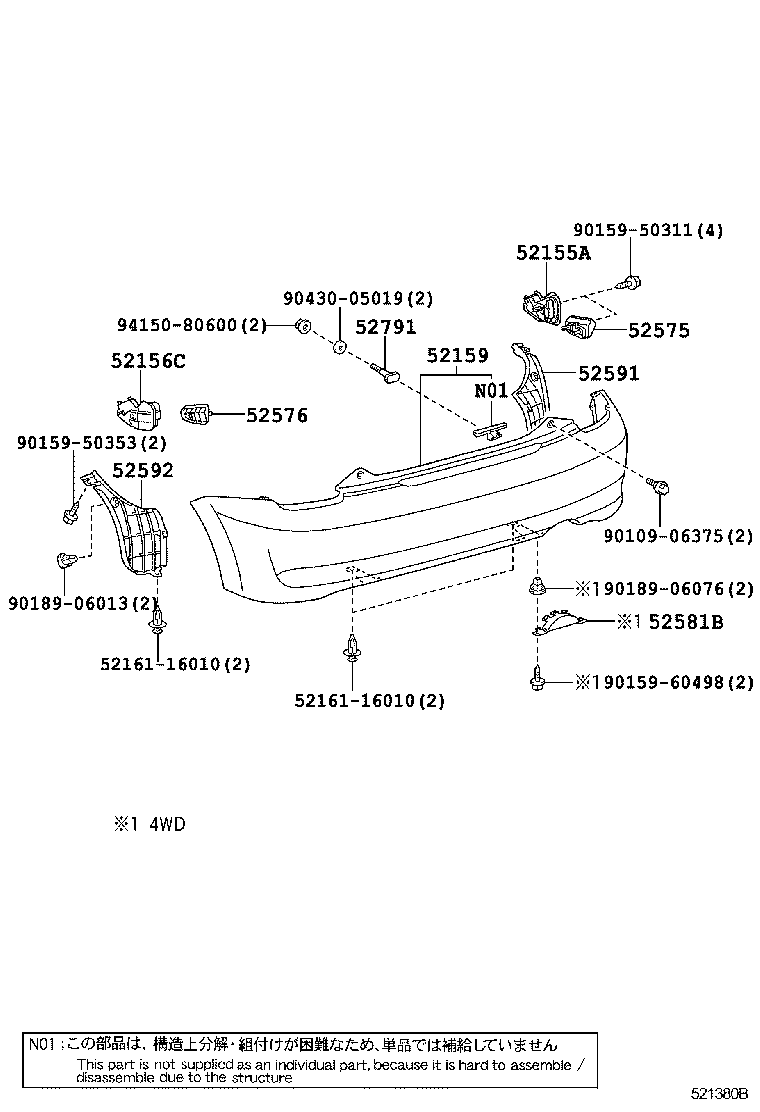

Rear Bumper & Bumper Stay
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156C | Support, Rear Bumper Side, NO.1 LH |
| 52159 | Cover, Rear Bumper |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
