Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

Figure 641035A

641035A 2002-04 → 2003-04

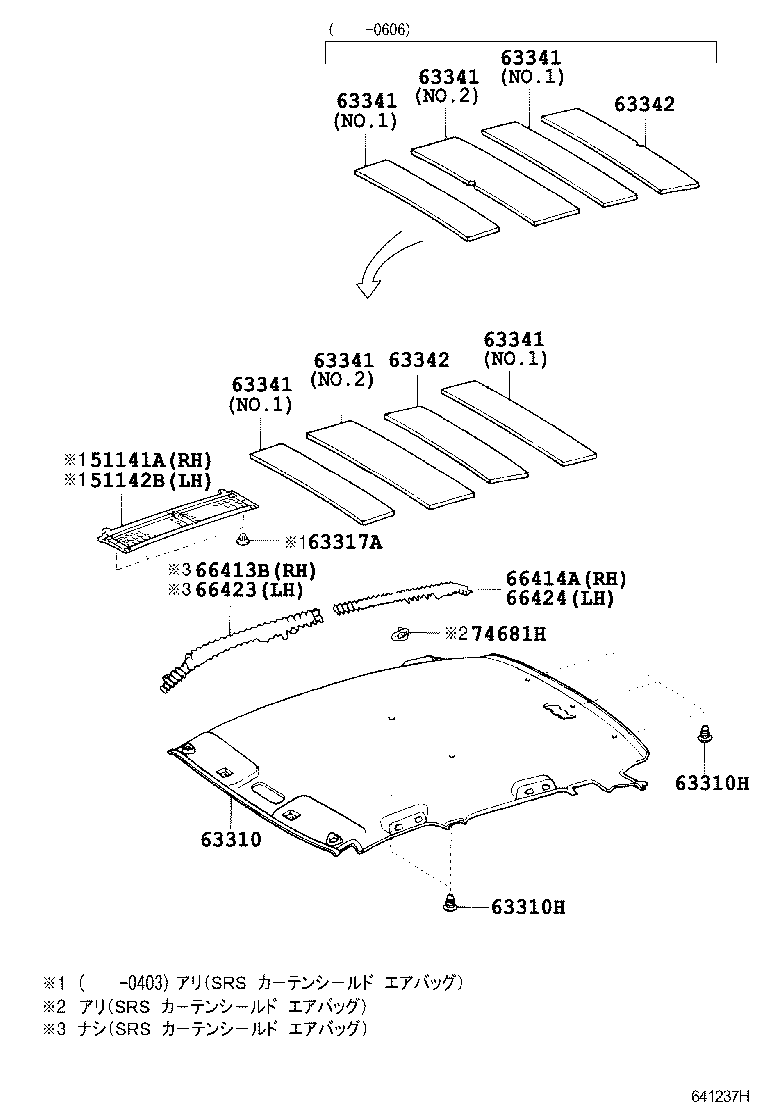

Figure 641237H

641237H 2003-04 → —

Part groups

PNC	Description
51141A	Reinforcement, Side Rail, RH
51142B	Reinforcement, Side Rail, LH
63310	Headlining Assy, Roof
63310H	Clip(FOR ROOF HEADLINING)
63317A	Retainer, Roof Headlining
63341	Pad, Roof Silencer, NO.1
63342	Pad, Roof Silencer, NO.2
66413B	Spacer, Side Rail, Front RH
66414A	Spacer, Side Rail, Rear RH
66423	Spacer, Side Rail, Front LH
66424	Spacer, Side Rail, Rear LH
74681H	Retainer, Assist Grip

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
