Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

14 part groups · 2 illustrations

Illustrations

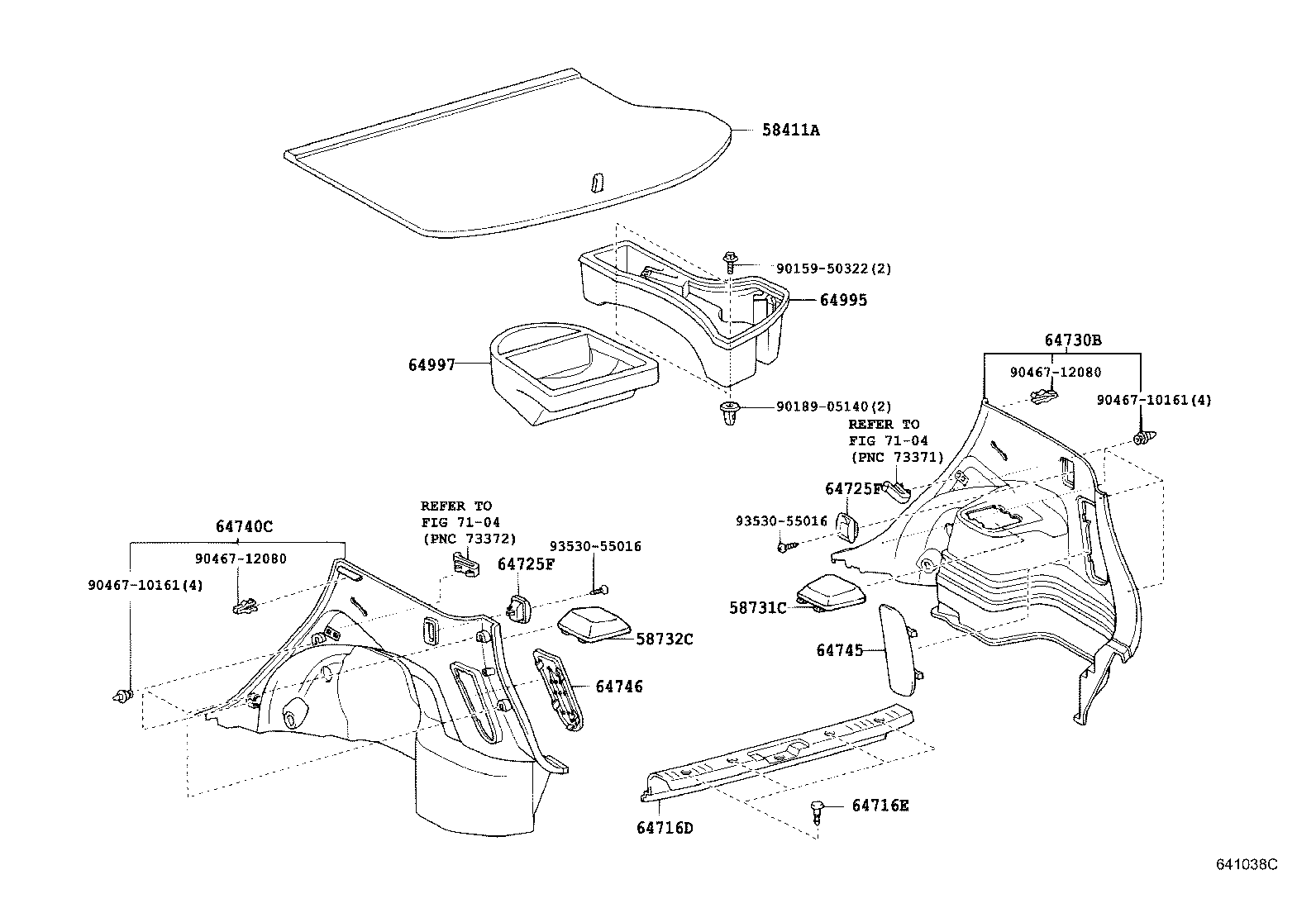

Figure 641037C 641037C 2002-04 → — Figure 641038C 641038C 2002-04 → —

Part groups

PNCDescription
58411A Board, Deck, NO.1
58412A Board, Deck, NO.2
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64725F Hook, Luggage Compartment Trim, NO.1
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64993 Box, Deck Floor, Rear
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
