Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

28 part groups · 3 illustrations

Illustrations

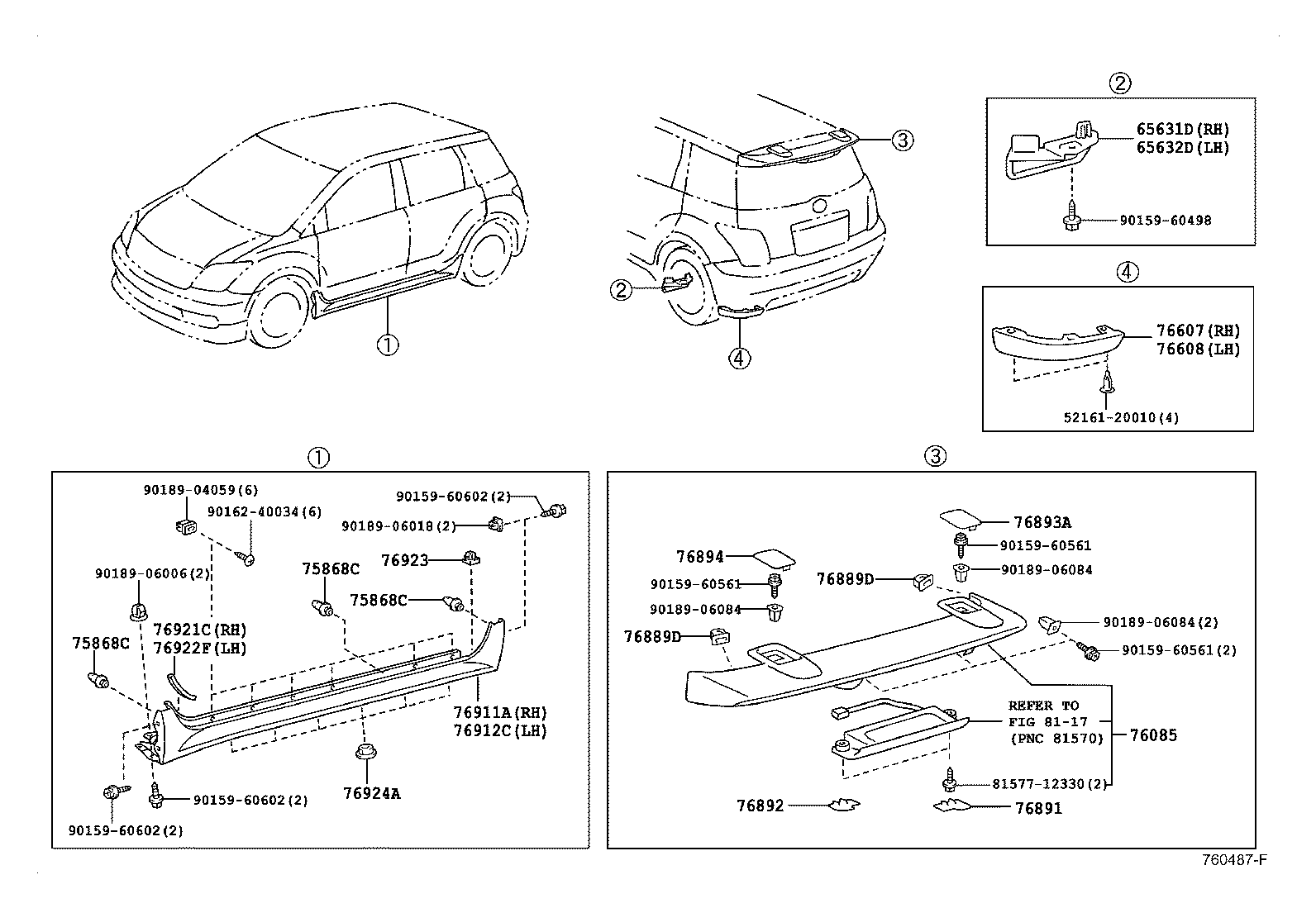

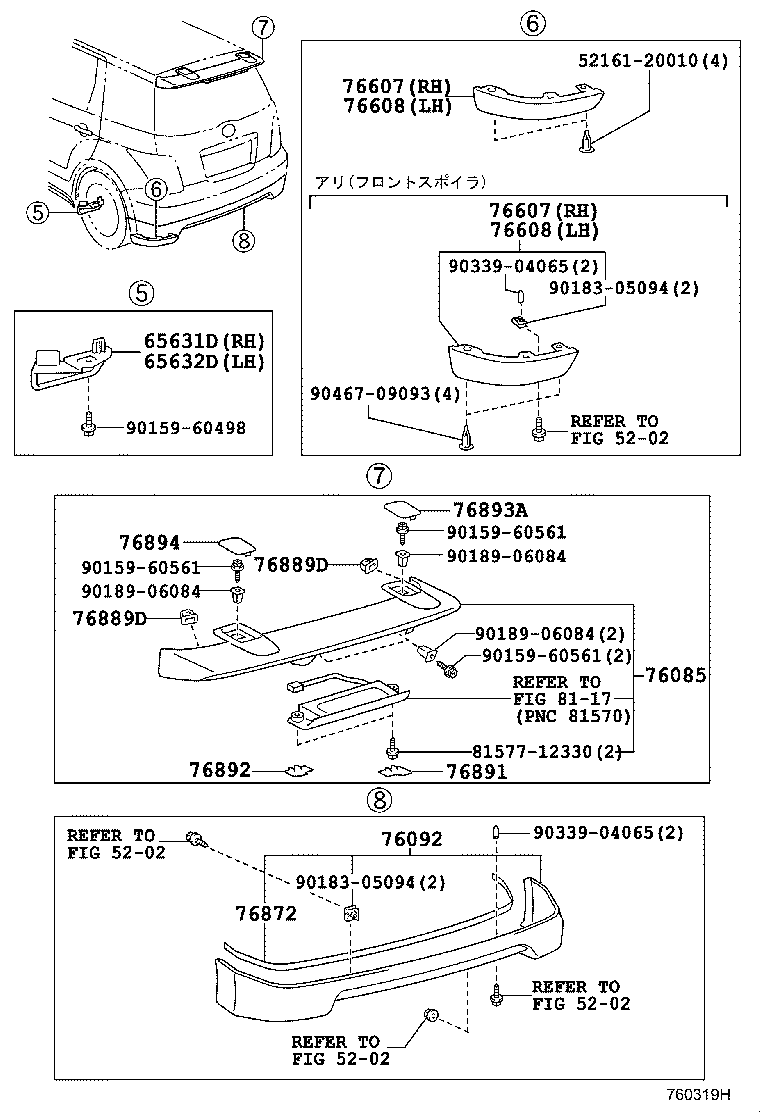

Figure 760270Q 760270Q 2002-04 → 2005-05 Figure 760319H 760319H 2002-04 → 2005-05 Figure 760487F 760487F 2005-05 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75868C Clip, Rear Spoiler, NO.2
76081 Spoiler Sub-assy, Front
76085 Spoiler Sub-assy, Rear
76092 Spoiler Sub-assy, Rear Lower
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76872 Protector, Rear Spoiler, NO.1
76877A Protector, Front Spoiler
76889D Clip, Rear Spoiler, NO.2
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76911A Mudguard, Fender Panel, RH
76911B Mudguard, Side, RH
76912C Mudguard, Fender Panel, LH
76912D Mudguard, Side, LH
76921C Protector, Side Mudguard, RH
76922F Protector, Side Mudguard, LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
