Toyota Ist

2002-04 → 2007-07 · chassis NCP6# · catalogue 117110 · Japan

Supported model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

25 part groups · 7 illustrations

Illustrations

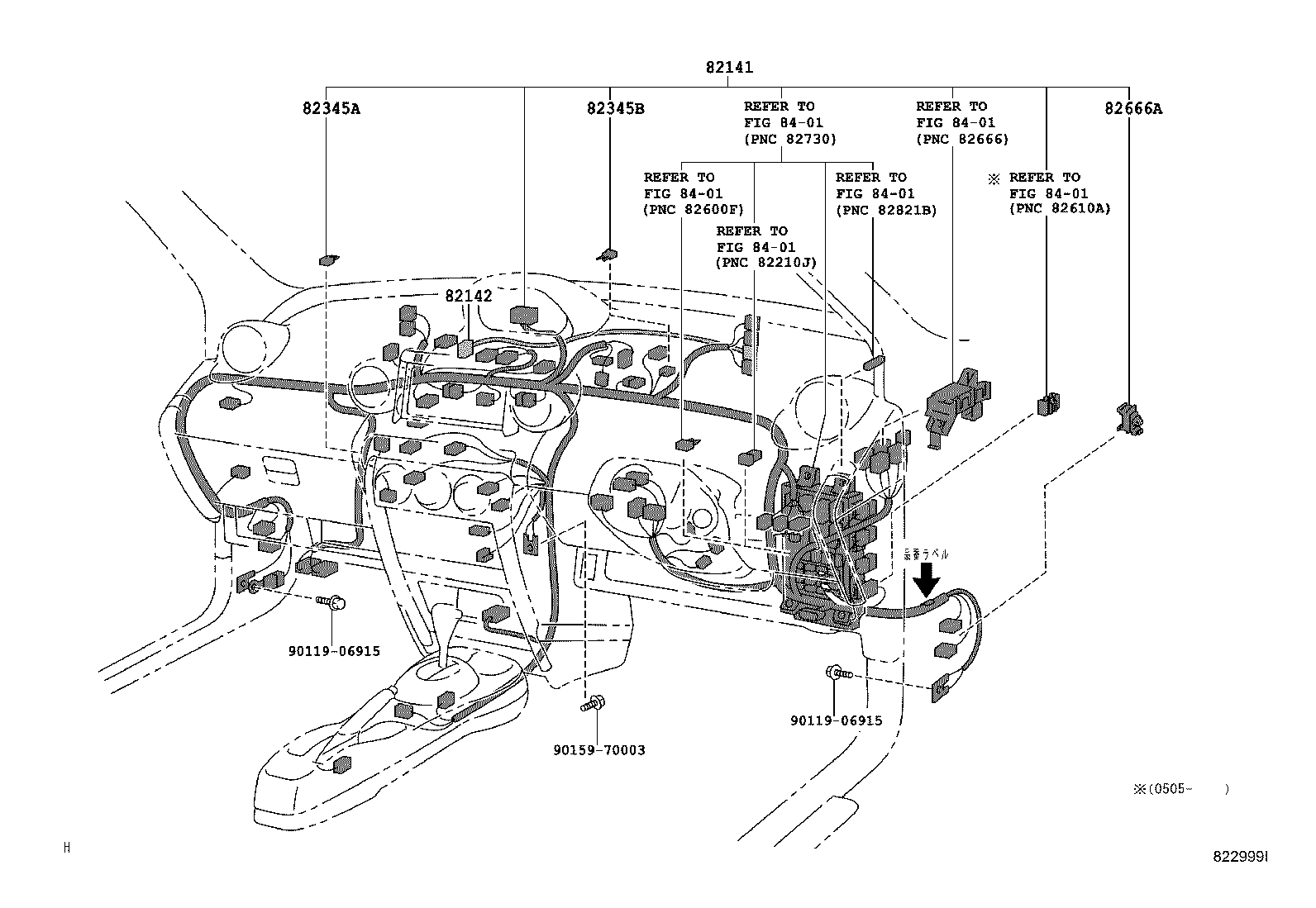

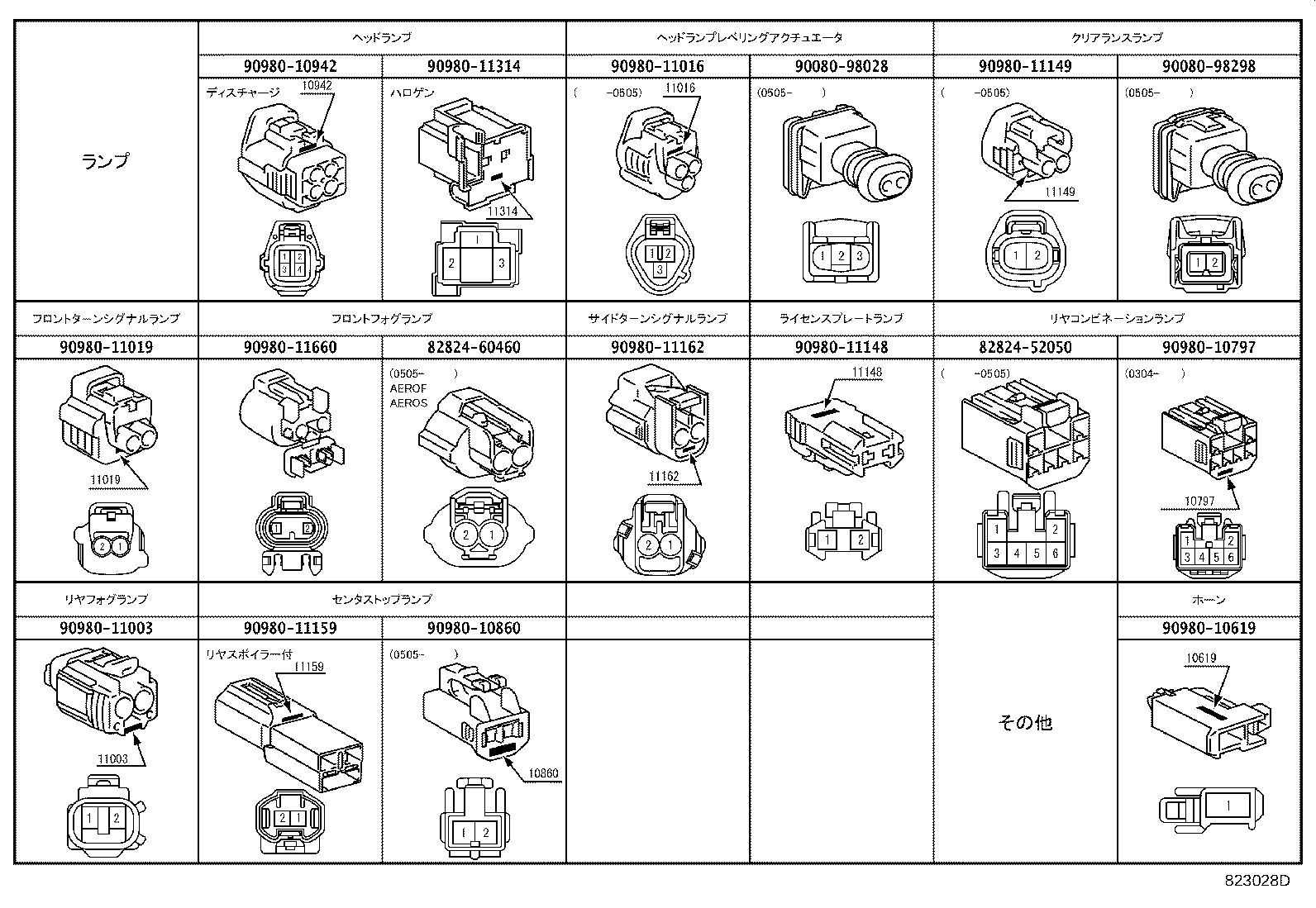

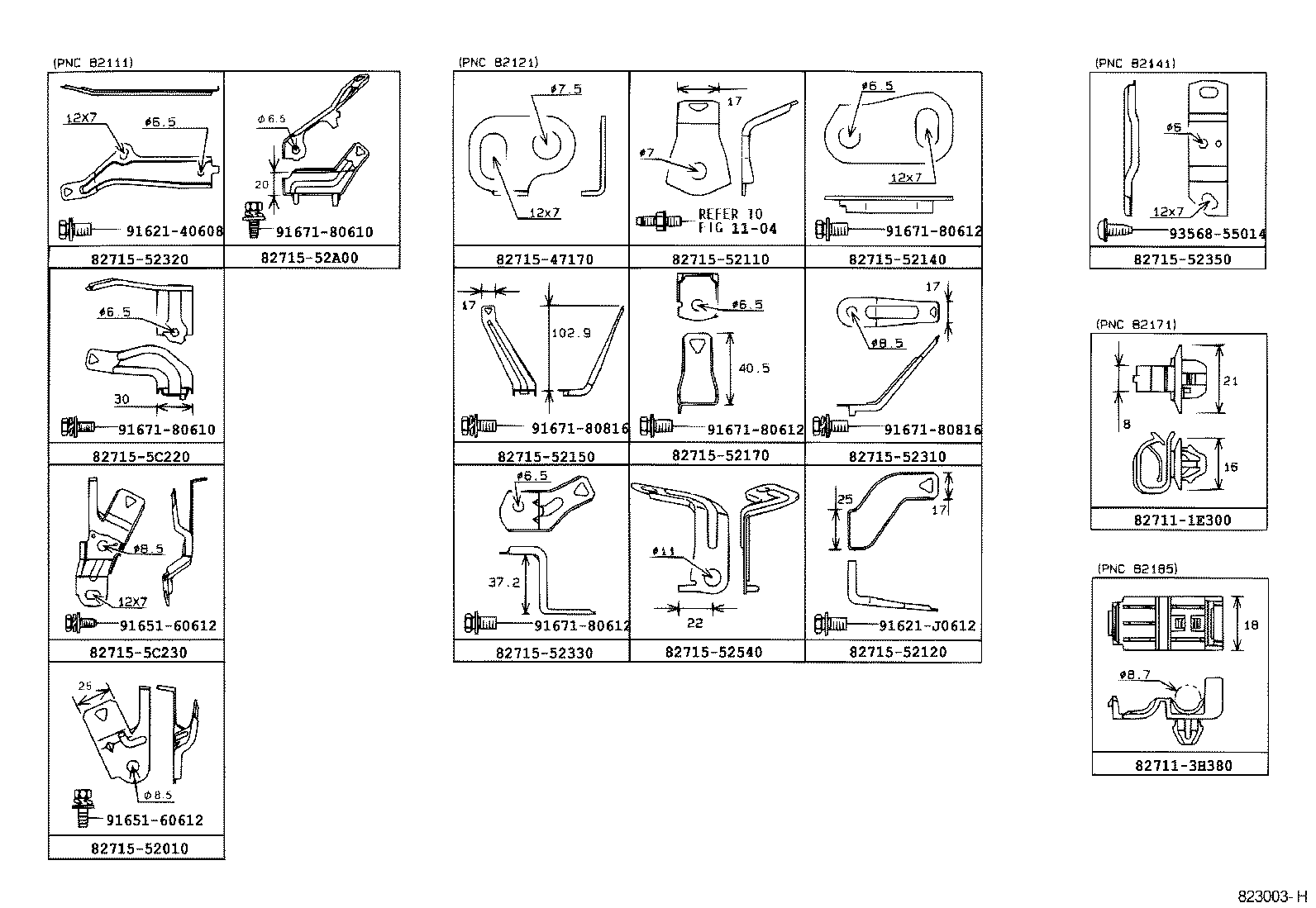

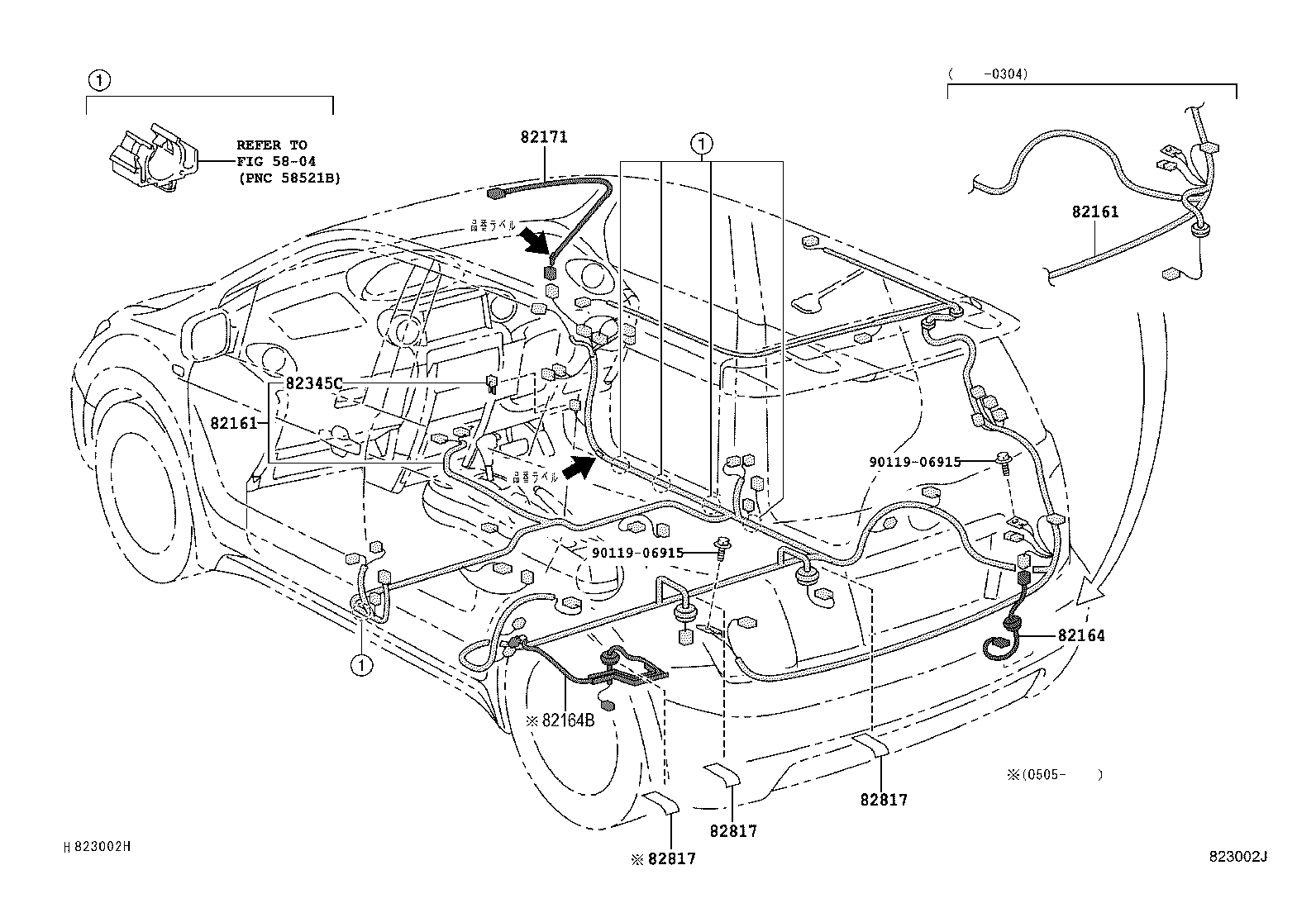

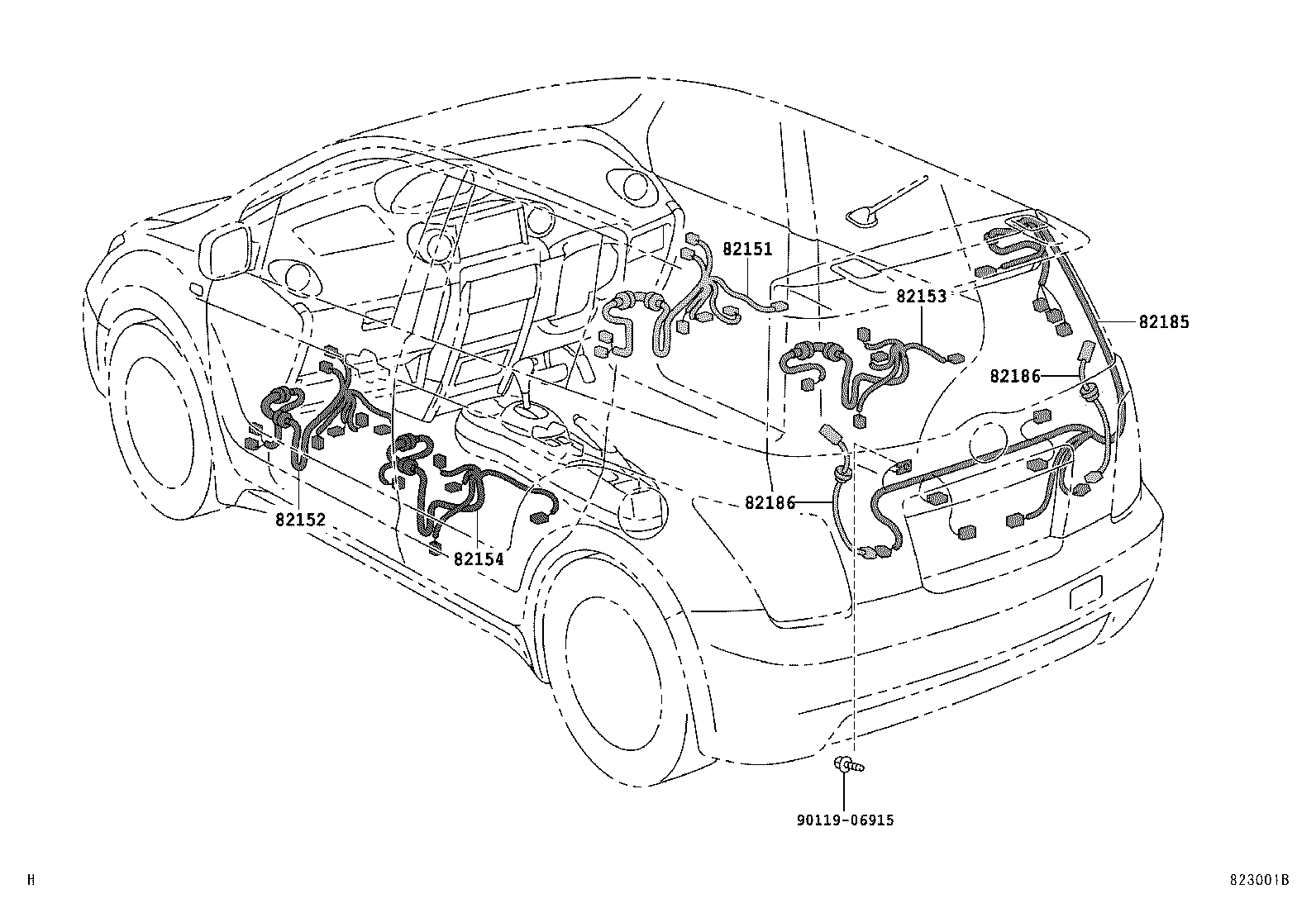

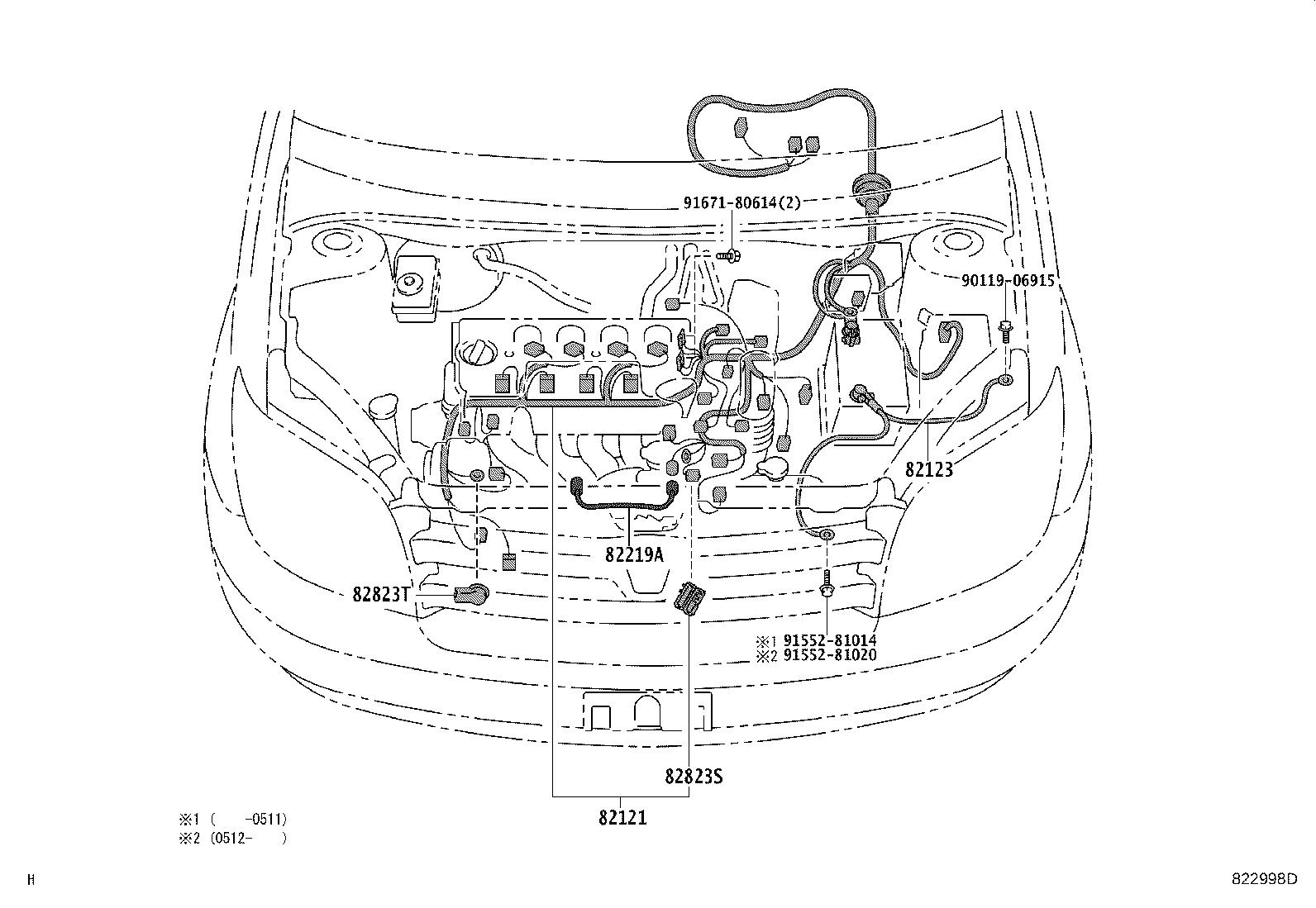

Figure 822997G 822997G 2002-04 → — Figure 822998D 822998D 2002-04 → — Figure 822999I 822999I 2002-04 → — Figure 823001B 823001B 2002-04 → — Figure 823002J 823002J 2002-04 → — Figure 823003H 823003H 2002-04 → — Figure 823028D 823028D 2002-04 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82164B Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82219C Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82345C Diode
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
